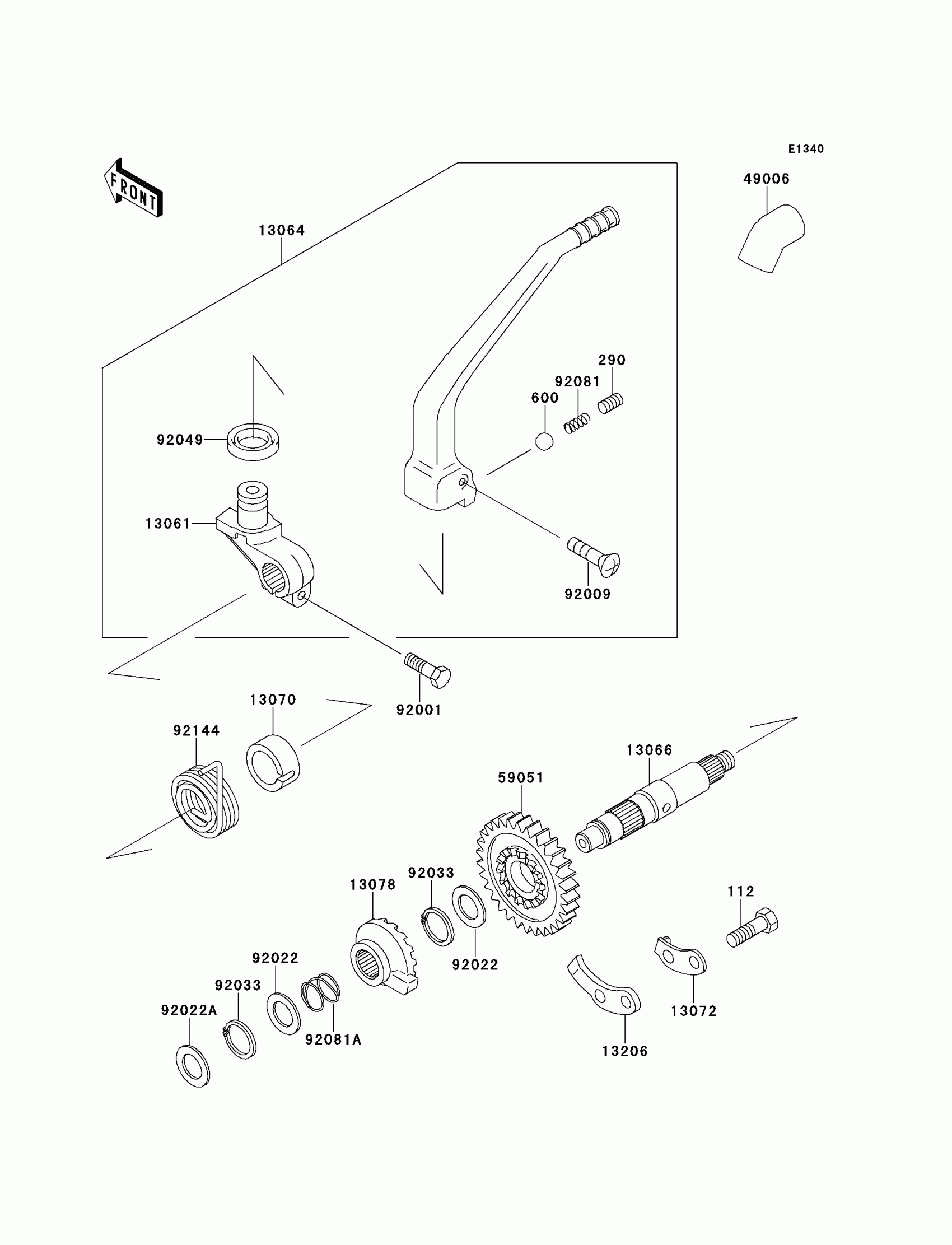

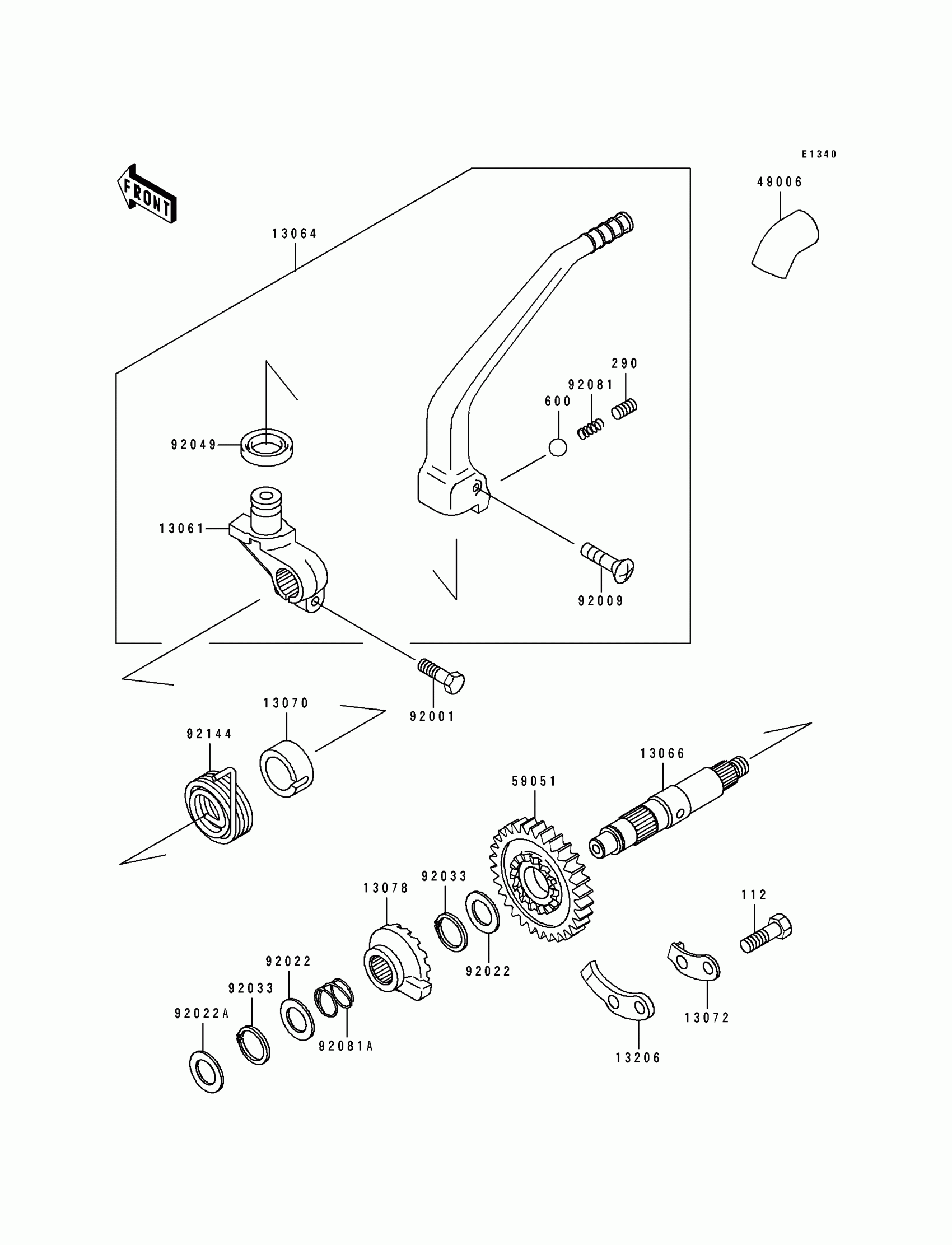

1995 Kawasaki KLX650R Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Kawasaki KLX650R Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS,KICK PEDAL

13061-1375

1
Out of stock

13064

LEVER-ASSY-KICK,PEDAL

13064-1171

1
Out of stock

13066

SHAFT-KICK

13066-1086

1
Out of stock

13070

GUIDE,KICK SPRING

13070-1106

1
Out of stock

13072

STOPPER,KICKSTARTER

13072-014

1
Out of stock

13078

RATCHET

13078-1051

1
Out of stock

13206

GUIDE-KICK

13206-1064

1
Out of stock

49006

BOOT,KICK PEDAL

49006-1284

1
Out of stock

59051

GEAR,KICKSTARTER,32T

59051-1278

1
Out of stock

92001

BOLT,8X28

92001-1042

1
Out of stock

92009

SCREW,6X30

92009-1590

1
Out of stock

92022

WASHER,25.3X30X0.5

92022-159

1
Out of stock

92022A

WASHER,20.5X25.5X0.5

92022-252

1
Out of stock

92033

RING-SNAP,24MM

92033-026

1
Out of stock

92049

SEAL-OIL

92049-1406

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1
Out of stock

92081A

SPRING

92081-097

1
Out of stock

92144

SPRING,KICKSTARTER

92144-1675

1
Out of stock

112

BOLT-UPSET

112G0618

1
Out of stock

290

SCREW-SET-SOCKET

290T0808

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock
