1995 Kawasaki KLX650R Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1995 Kawasaki KLX650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

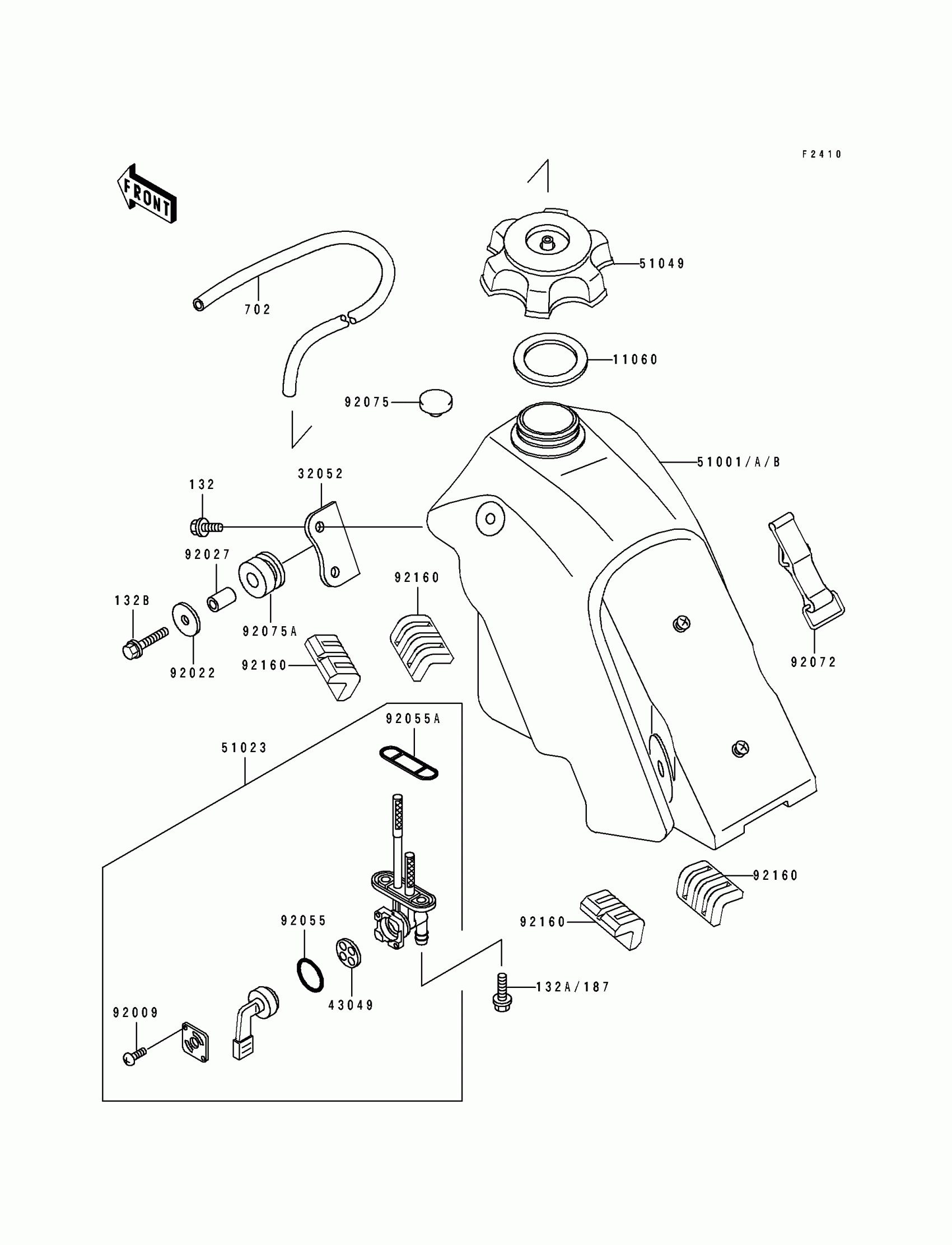

1995 Kawasaki KLX650R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

1

$4.88

In stock

32052

BRACKET-TANK

32052-1169

1

$17.22

In stock

43049

1

$5.77

In stock

51001A

TANK-COMP-FUEL,L.GREEN

51001-1469-6W

1

$834.33

In stock

51023

TAP-ASSY,FUEL

51023-1205

1
Out of stock

51049

CAP-TANK,FUEL

51049-1089

1

$29.27

In stock

92009

SCREW,3X5

92009-1123

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92027

COLLAR,6.8X10X14

92027-1966

1

$4.42

In stock

92055

1

$3.97

In stock

92055A

1

$3.97

In stock

92072

BAND,FUEL TANK

92072-1229

1

$10.09

In stock

92075

1

$3.85

In stock

92075A

DAMPER

92075-1787

1

$5.21

In stock

92160

DAMPER,FUEL TANK

92160-1328

1

$5.84

In stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X30

132G0630

1
Out of stock

702

TUBE-RUBBER,5X350

702A05350

1

$29.70

In stock
