1996 Kawasaki KLX650 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

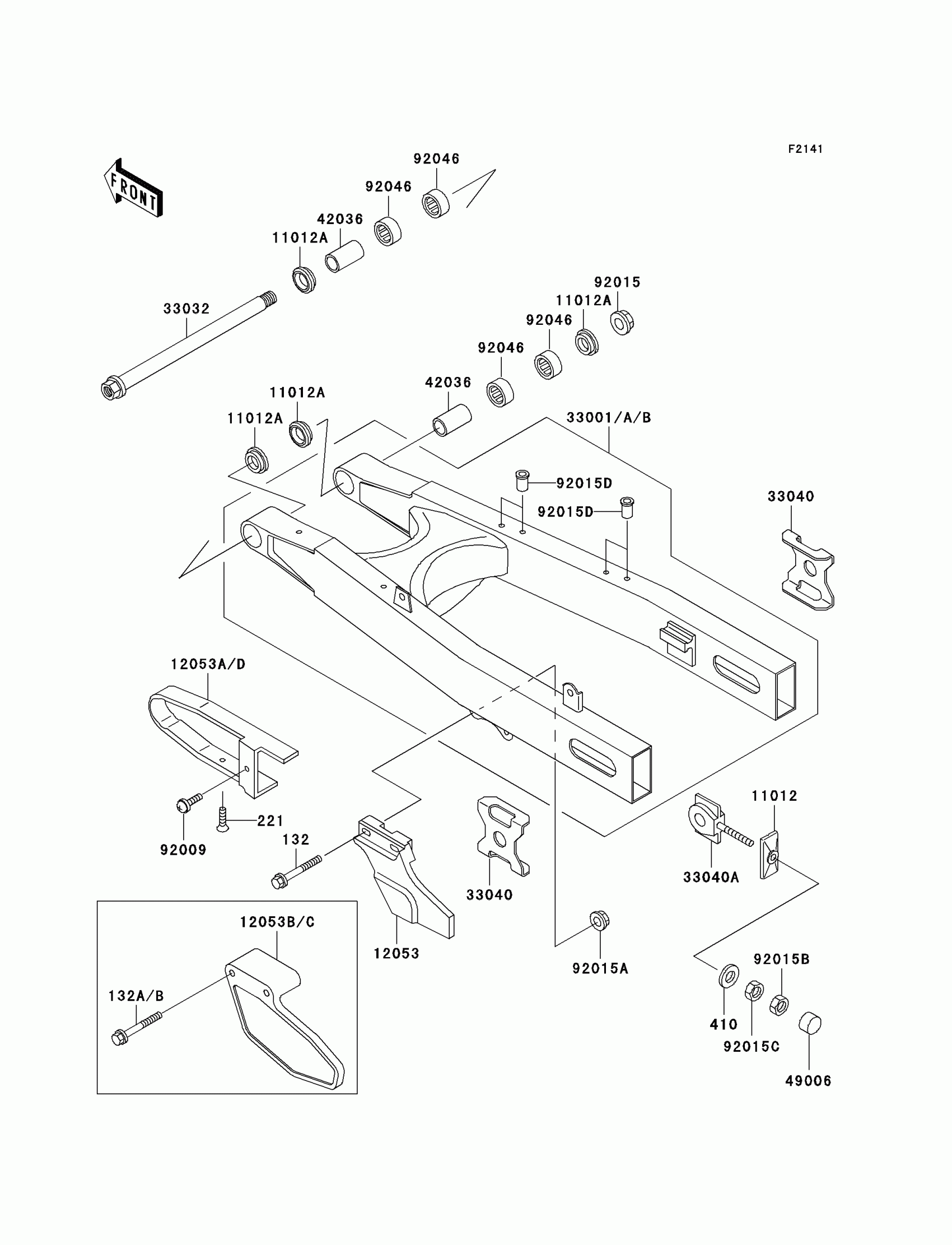

1996 Kawasaki KLX650 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132A

BOLT-FLANGED-SMALL,6X55

132G0655

1
Out of stock

221

1

$2.92

In stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

11012

CAP,CHAIN ADJUSTER

11012-1780

1
Out of stock

11012A

CAP,SWING ARM PIPOT

11012-1790

1

$24.86

In stock

12053B

GUIDE-CHAIN,RR

12053-1335

1
Out of stock

12053D

1

$56.73

In stock

33001A

1

$633.10

In stock

33032

SHAFT-SWING ARM

33032-1171

1
Out of stock

33040

ADJUSTER-CHAIN,OUTER

33040-1131

1
Out of stock

33040A

ADJUSTER-CHAIN,INNER

33040-1132

1
Out of stock

42036

1

$33.40

In stock

49006

BOOT

49006-1218

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92015

NUT,FLANGED,16MM

92015-1316

1
Out of stock

92015A

1

$1.20

In stock

92015B

NUT,8MM

92015-1364

1

$3.12

In stock

92015C

NUT,8MM

92015-1658

1

$3.87

In stock

92015D

NUT,POP,6MM,L=16.5

92015-1792

1

$3.72

In stock

92046

BEARING-NEEDLE,HK2212/8A

92046-1214

1
Out of stock
