1996 Kawasaki KLX650 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

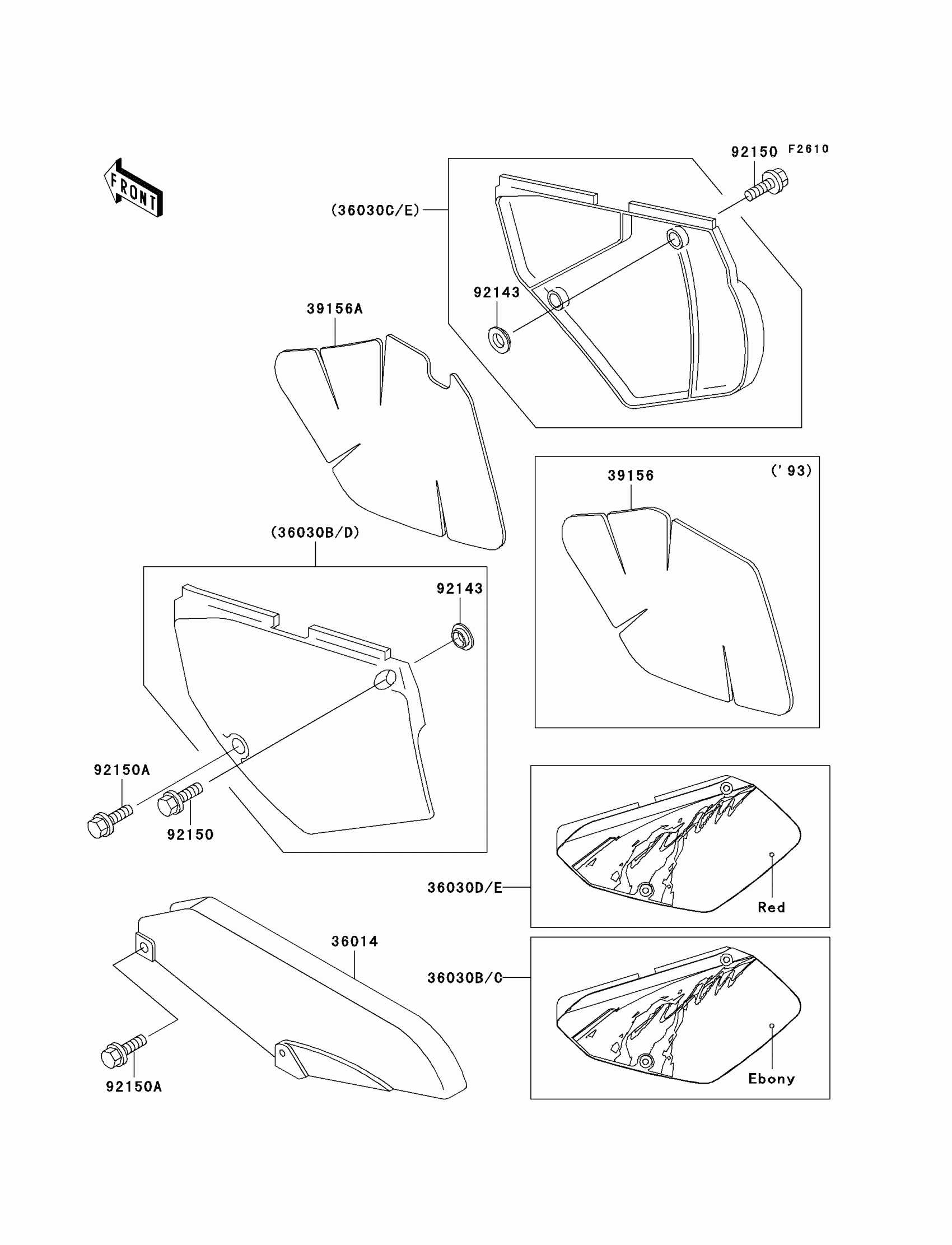

1996 Kawasaki KLX650 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-1147

1

$104.85

In stock

36030D

COVER-SIDE,LH,S.RED

36030-5329-6B

1

$123.73

In stock

36030E

COVER-SIDE,RH,S.RED

36030-5330-6B

1

$123.73

In stock

39156A

PAD,SIDE COVER,RH

39156-1382

1
Out of stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,6X14

92150-1340

1

$4.02

In stock
