1996 Kawasaki KLX650 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

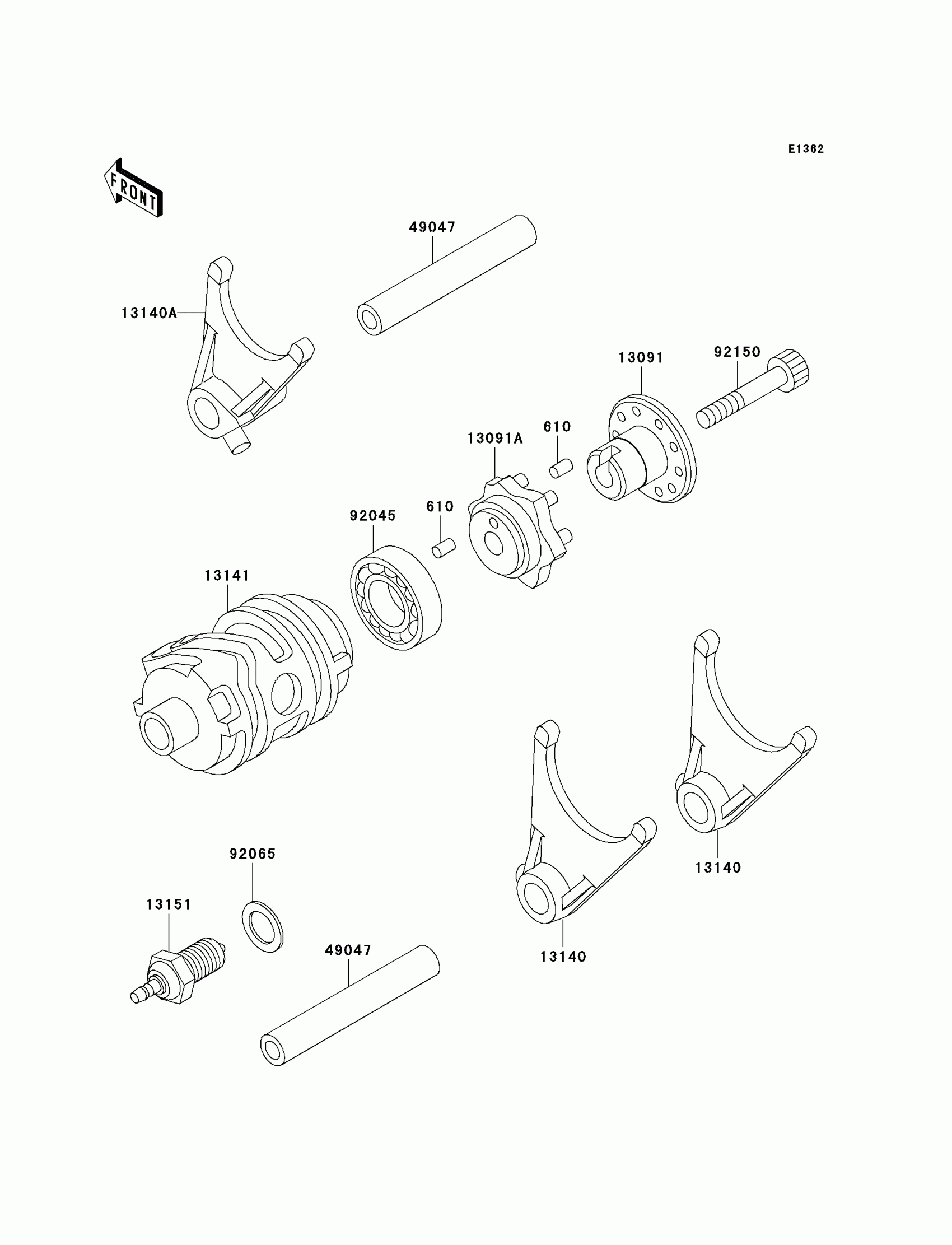

1996 Kawasaki KLX650 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

610

ROLLER,4X8

610A0408

1

$3.43

In stock

13091

HOLDER,CHANGE DRUM

13091-1723

1
Out of stock

13091A

HOLDER,CHANGE DRUM

13091-1856

1

$42.03

In stock

13140

FORK-SHIFT,OUTPUT

13140-1212

1
Out of stock

13140A

FORK-SHIFT,INPUT

13140-1213

1
Out of stock

13141

DRUM-CHANGE

13141-1180

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-1080

1

$8.20

In stock

49047

ROD-SHIFT,L=93.7

49047-1003

1
Out of stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92150

BOLT,SOCKET,6X35

92150-1484

1

$4.93

In stock
