2019 Kawasaki KLX450R Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2019 Kawasaki KLX450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

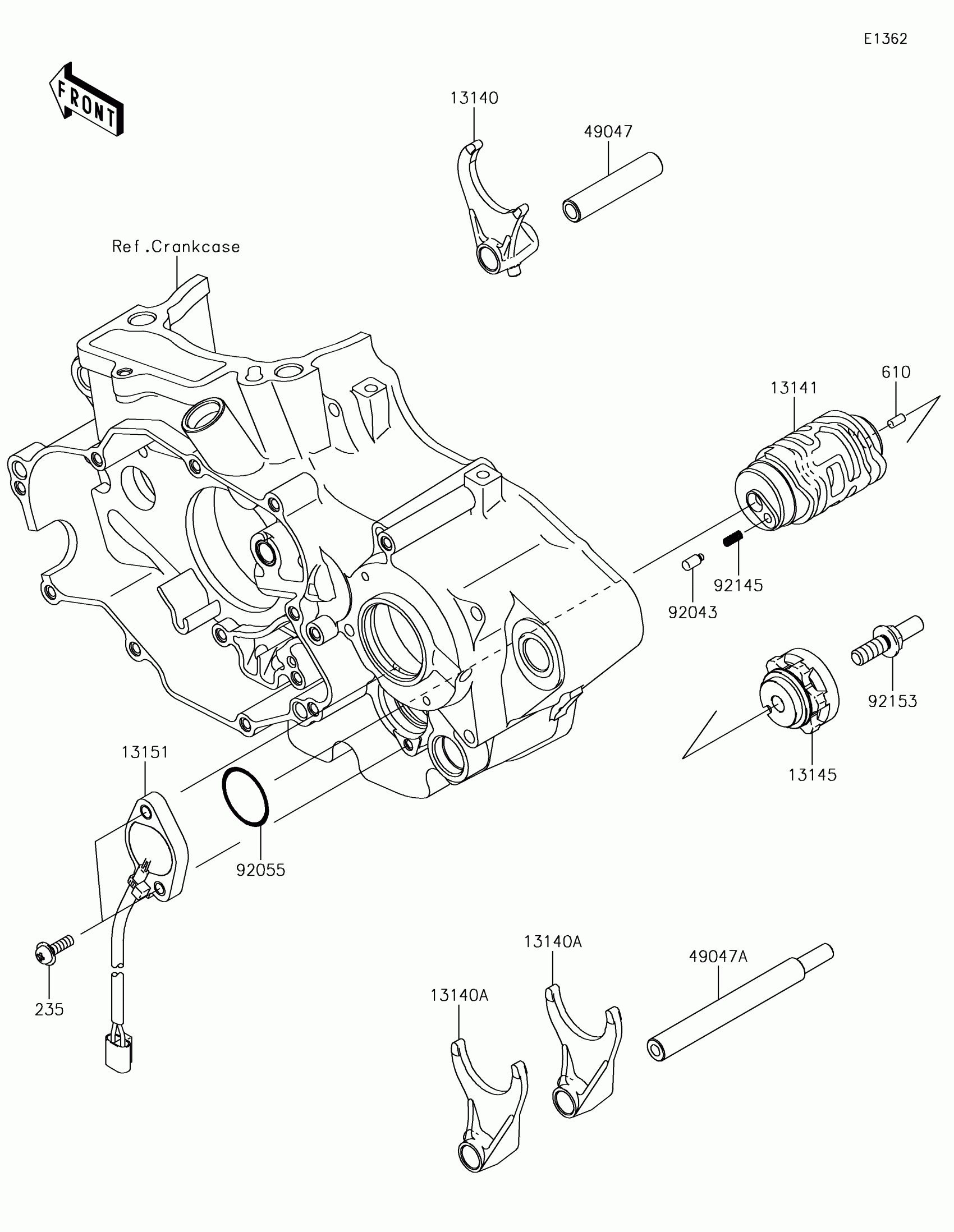

2019 Kawasaki KLX450R Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13140

FORK-SHIFT,IN

13140-0043

1

$95.58

In stock

13140A

FORK-SHIFT,OUT

13140-0047

1

$95.58

In stock

13141

DRUM-CHANGE

13141-0028

1

$109.46

In stock

13145

CAM-CHANGE DRUM

13145-0031

1

$67.96

In stock

13151

SWITCH-COMP,NEUTRAL

13151-0037

1

$68.80

In stock

235

1

$1.08

In stock

49047

ROD-SHIFT,IN

49047-0017

1

$15.78

In stock

49047A

ROD-SHIFT,OUT

49047-0028

1

$38.22

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock

92043

PIN

92043-1654

1

$2.97

In stock

92055

RING-O,27.7X2.4

92055-091

1

$4.93

In stock

92145

SPRING

92145-1414

1

$3.16

In stock

92153

BOLT,8X20

92153-0530

1
Out of stock
