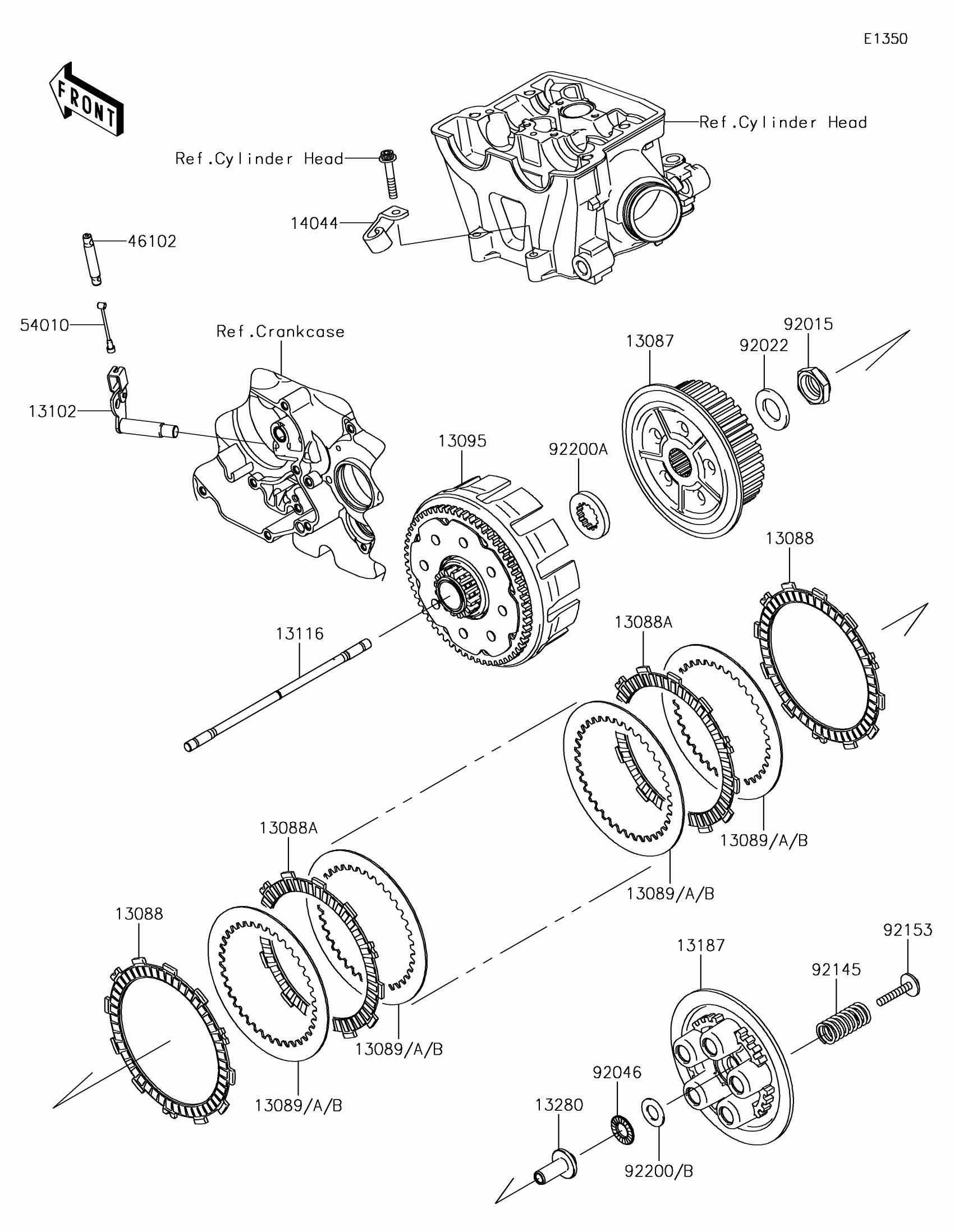

Kawasaki KLX450R Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-0015

$106.77

13088

PLATE-FRICTION

13088-0010

$20.15

13088A

PLATE-FRICTION

13088-0035

$20.15

13089

PLATE-CLUTCH,T=2.0

13089-1005

Unavailable

13089A

PLATE-CLUTCH,T=1.2

13089-1010

Unavailable

13089B

PLATE-CLUTCH,T=1.6

13089-1095

$9.73

13095

HOUSING-COMP-CLUTCH

13095-0052

$365.72

13102

RELEASE-COMP-CLUTCH

13102-0028

$53.31

13116

ROD-PUSH

13116-0025

$68.19

13187

PLATE-CLUTCH OPERATING

13187-0007

$80.60

13280

HOLDER

13280-0067

$34.55

14044

HOLDER-CABLE

14044-0026

$7.61

46102

ROD,PULL

46102-0092

$64.91

54010

CABLE,CLUTCH RELEASE

54010-0063

$4.41

92015

NUT,20MM

92015-1725

$14.25

92022

WASHER,20.3X36X3.7

92022-1868

$7.25

92046

BEARING-NEEDLE,FNTA-1326

92046-1190

$8.62

92145

SPRING,CLUTCH

92145-0370

$7.52

92153

BOLT,WP,6X35

92153-1876

$1.85

92200

WASHER,13.4X25X1.0

92200-0045

Unavailable

92200A

WASHER,25X41X5.5

92200-0245

$9.93

92200B

WASHER,13.4X25.0X1.5

92200-1548

$2.99
