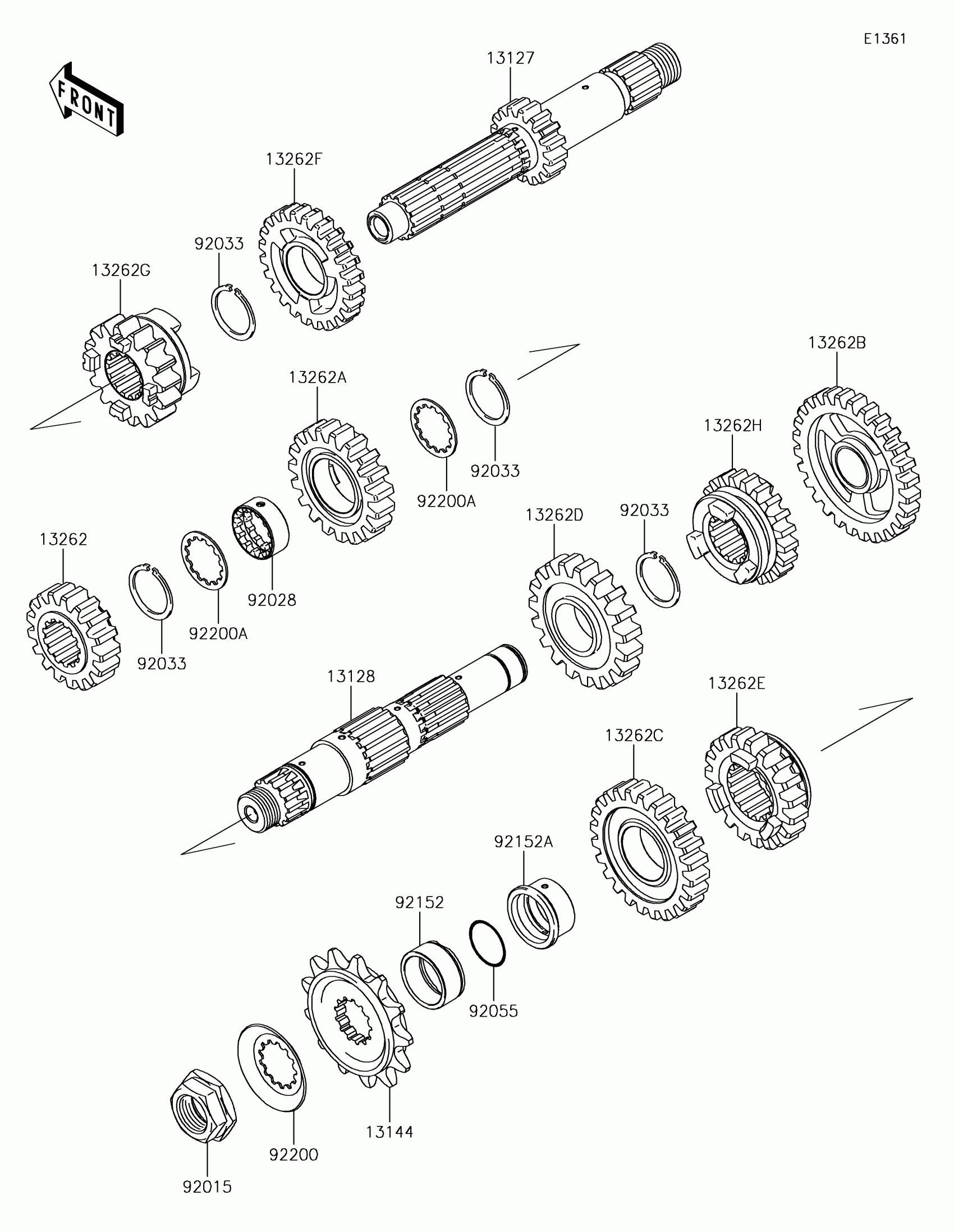

Kawasaki KLX450R Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,12T

13127-0050

$205.20

13128

SHAFT-TRANSMISSION OUTPUT

13128-0036

$169.19

13144

SPROCKET-OUTPUT,13T

13144-0041

$46.81

13262

GEAR,INPUT 2ND,15T

13262-0438

$72.34

13262A

GEAR,INPUT 4TH,20T

13262-0440

$128.71

13262B

GEAR,OUTPUT LOW,26T

13262-0442

$150.50

13262C

GEAR,OUTPUT 2ND,23T

13262-0443

$150.50

13262D

GEAR,OUTPUT 3RD,19T

13262-0444

$128.71

13262E

GEAR,OUTPUT 4TH,19T

13262-0445

$128.71

13262F

GEAR,INPUT 5TH,21T

13262-0569

$133.44

13262G

GEAR,INPUT 3RD,16T

13262-0635

$128.71

13262H

GEAR,OUTPUT 5TH,17T

13262-0636

$128.71

92015

NUT,20MM

92015-1963

$11.31

92028

BUSHING,INPUT TOP GEAR

92028-1857

$16.75

92033

RING-SNAP,25MM

92033-1172

$3.71

92055

RING-O,21.5X1.5

92055-1293

$3.81

92152

COLLAR,25X30X13.2

92152-0150

$24.25

92152A

COLLAR

92152-0540

$25.56

92200

WASHER

92200-0390

$5.63

92200A

WASHER

92200-1389

$1.68
