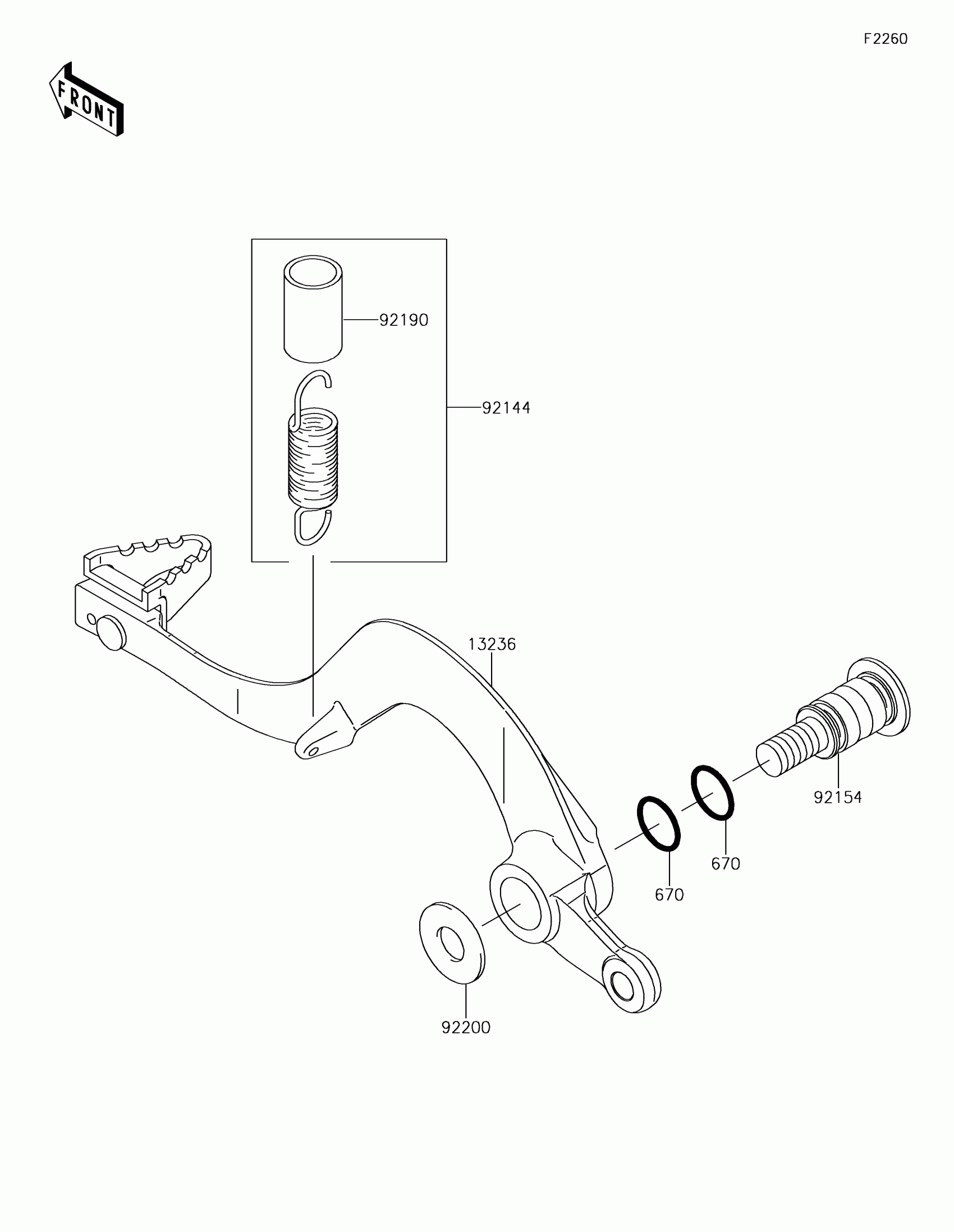

Find the part on the Brake Pedal diagram for your 2019 Kawasaki KLX450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KLX450R Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13236

LEVER-COMP,BRAKE PEDAL

13236-0086

1
Out of stock

670

O RING,12MM

670B2012

1
Out of stock

92144

SPRING,BRAKE PEDAL RETURN

92144-1752

1
Out of stock

92154

BOLT,BRAKE PEDAL,10MM

92154-0516

1
Out of stock

92190

TUBE,13X16X25

92190-1488

1
Out of stock

92200

WASHER,10.5X24X1.5

92200-0154

1
Out of stock
