2019 Kawasaki KLX450R Front Master Cylinder Diagram

← All diagrams

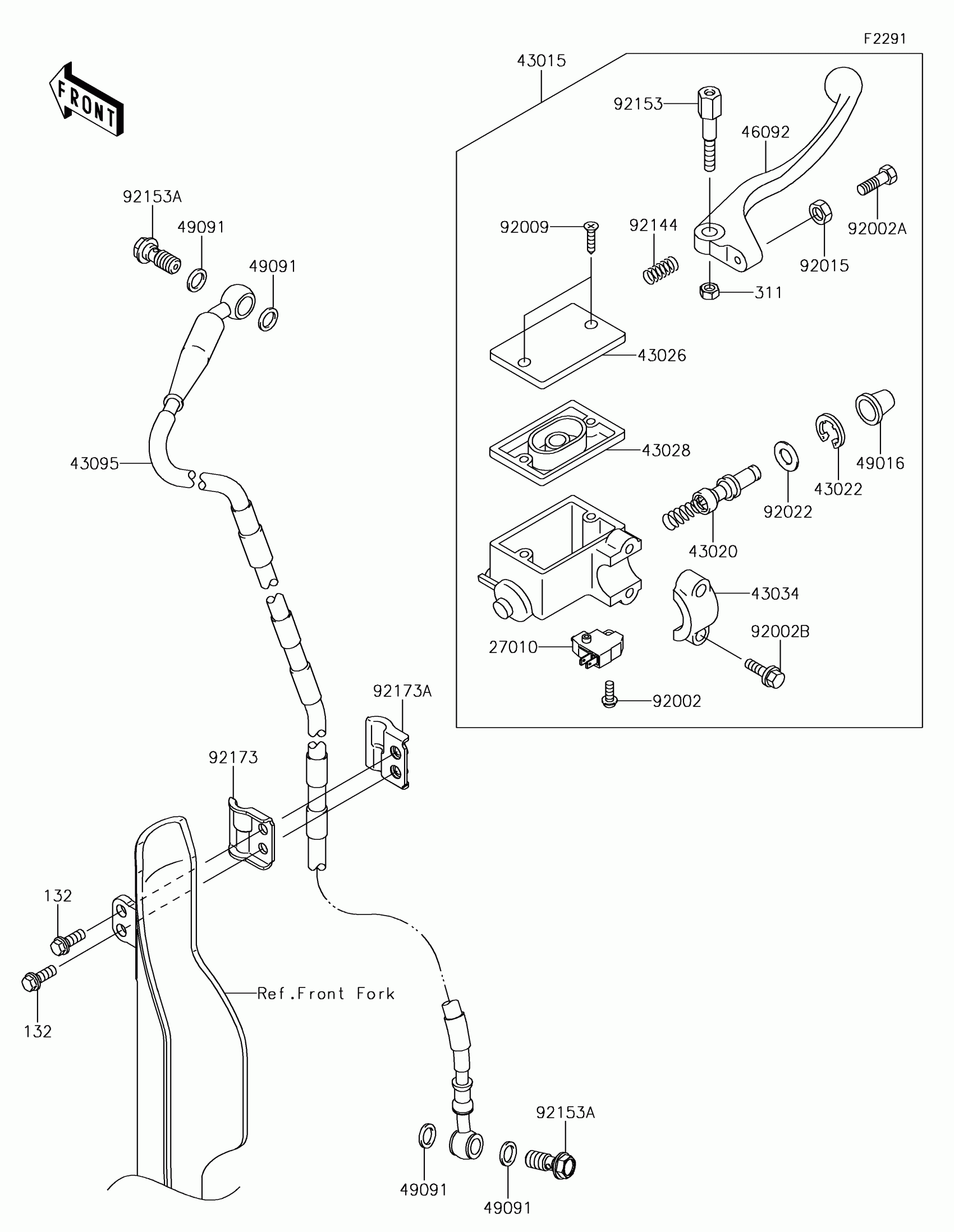

Find the part on the Front Master Cylinder diagram for your 2019 Kawasaki KLX450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KLX450R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.21

In stock

27010

SWITCH,BRAKE

27010-0025

1
Out of stock

311

NUT-HEX,6MM

311BB0600

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0040

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1065

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1074

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43095

HOSE-BRAKE,FR

43095-0314

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT,ADJUST

92002-1893

1
Out of stock

92002B

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,ADJUST

92015-1642

1
Out of stock

92022

WASHER

92022-1814

1
Out of stock

92144

SPRING,RETURN

92144-1103

1
Out of stock

92153

BOLT,LEVER SET

92153-0790

1
Out of stock

92153A

BOLT,OIL,L=23

92153-1419

1
Out of stock

92173

CLAMP,BRAKE HOSE,LH

92173-1177

1
Out of stock

92173A

CLAMP,BRAKE HOSE,RH

92173-1178

1
Out of stock
