2012 Kawasaki KLX450R (Australian) Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2012 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

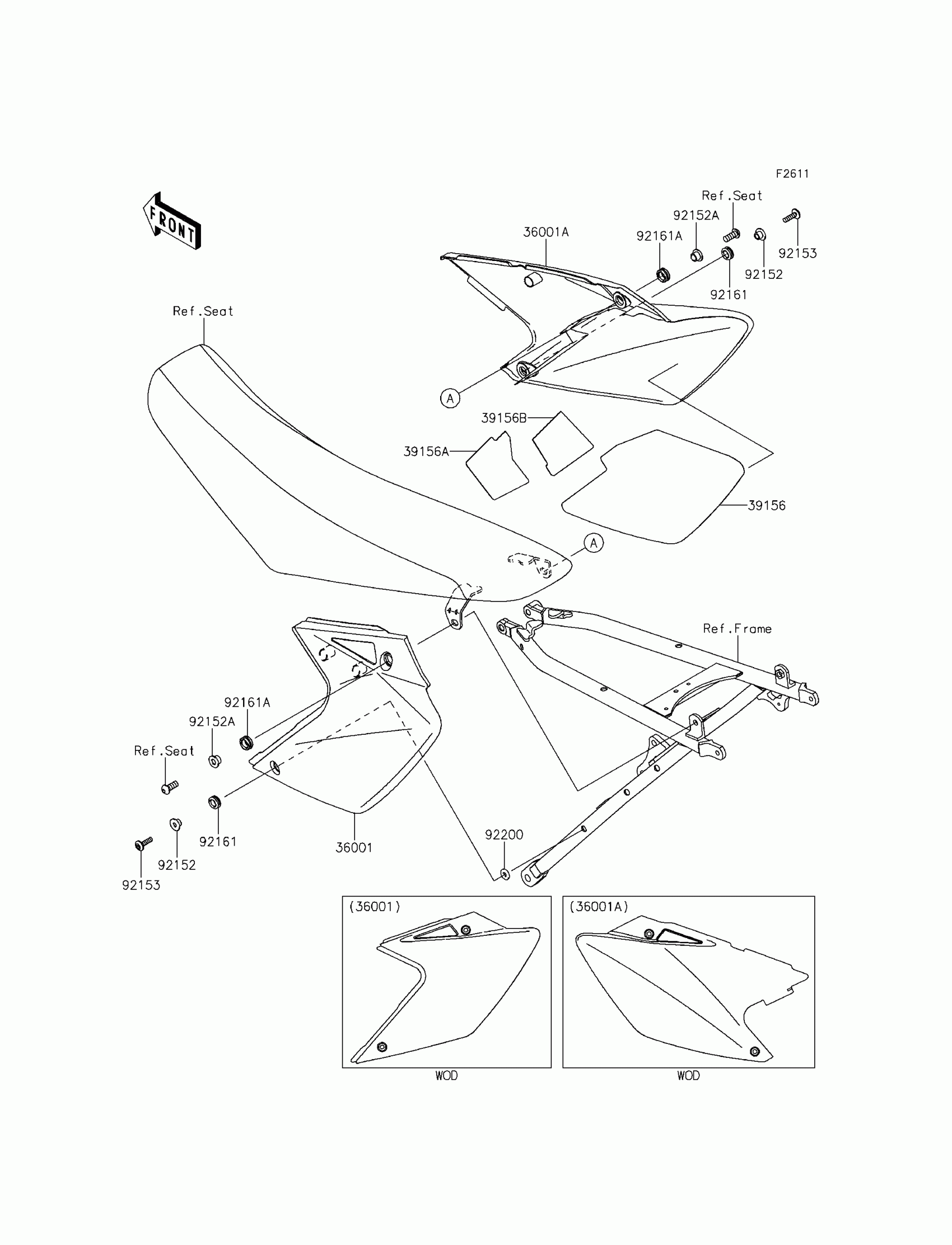

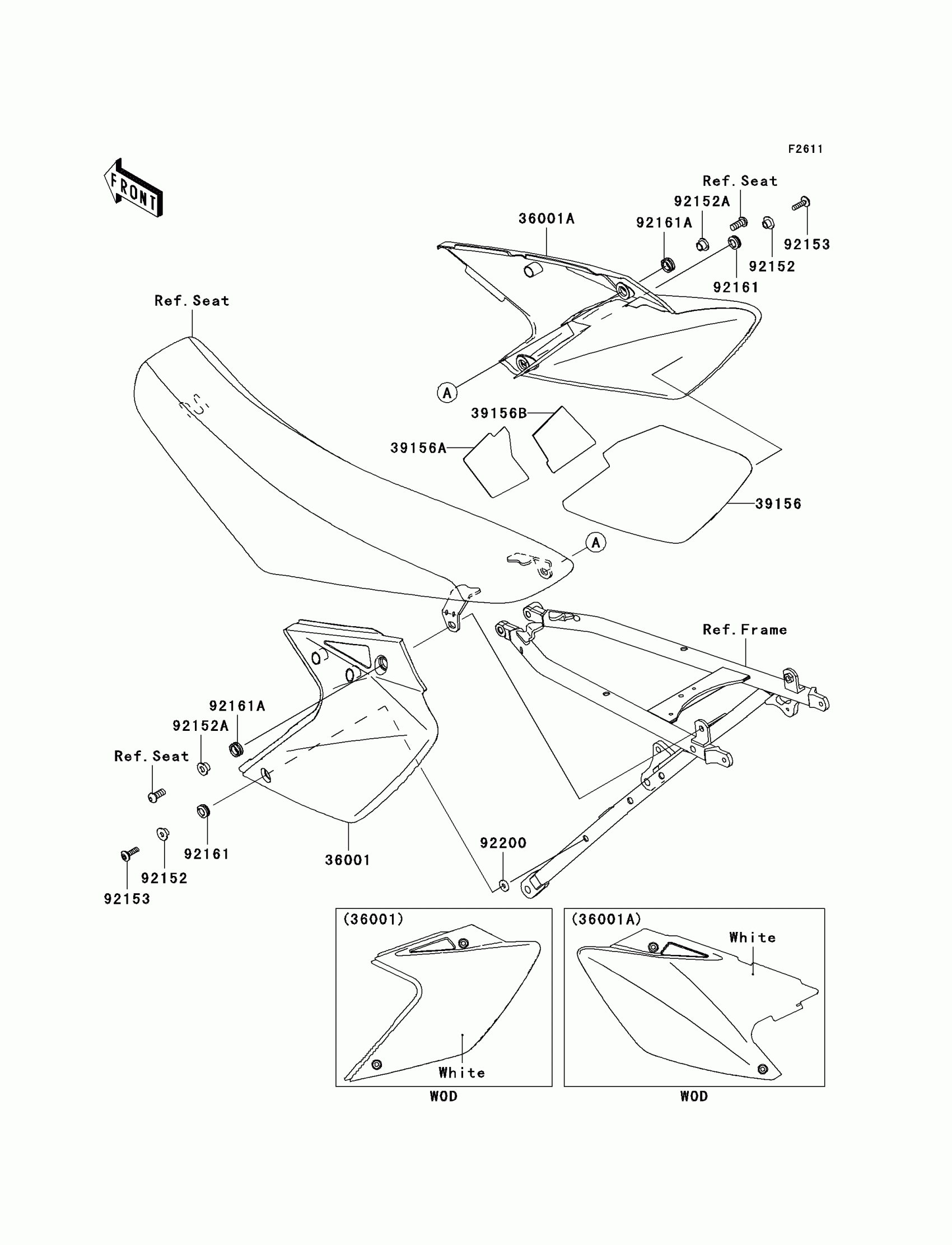

2012 Kawasaki KLX450R (Australian) Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,B.WHITE

36001-0132-266

1

$76.95

In stock

36001A

COVER-SIDE,RH,B.WHITE

36001-0133-266

1

$68.96

In stock

39156

PAD,SIDE COVER,RH

39156-0270

1

$21.90

In stock

39156A

1

$11.32

In stock

39156B

1

$11.32

In stock

92152

COLLAR

92152-0295

1
Out of stock

92152A

COLLAR

92152-0613

1
Out of stock

92153

BOLT,SOCKET,6X22

92153-1356

1
Out of stock

92161

DAMPER

92161-0266

1
Out of stock

92161A

DAMPER

92161-0570

1
Out of stock

92200

WASHER,6.5X16X2

92200-0312

1
Out of stock
