2012 Kawasaki KLX450R (Australian) Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2012 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

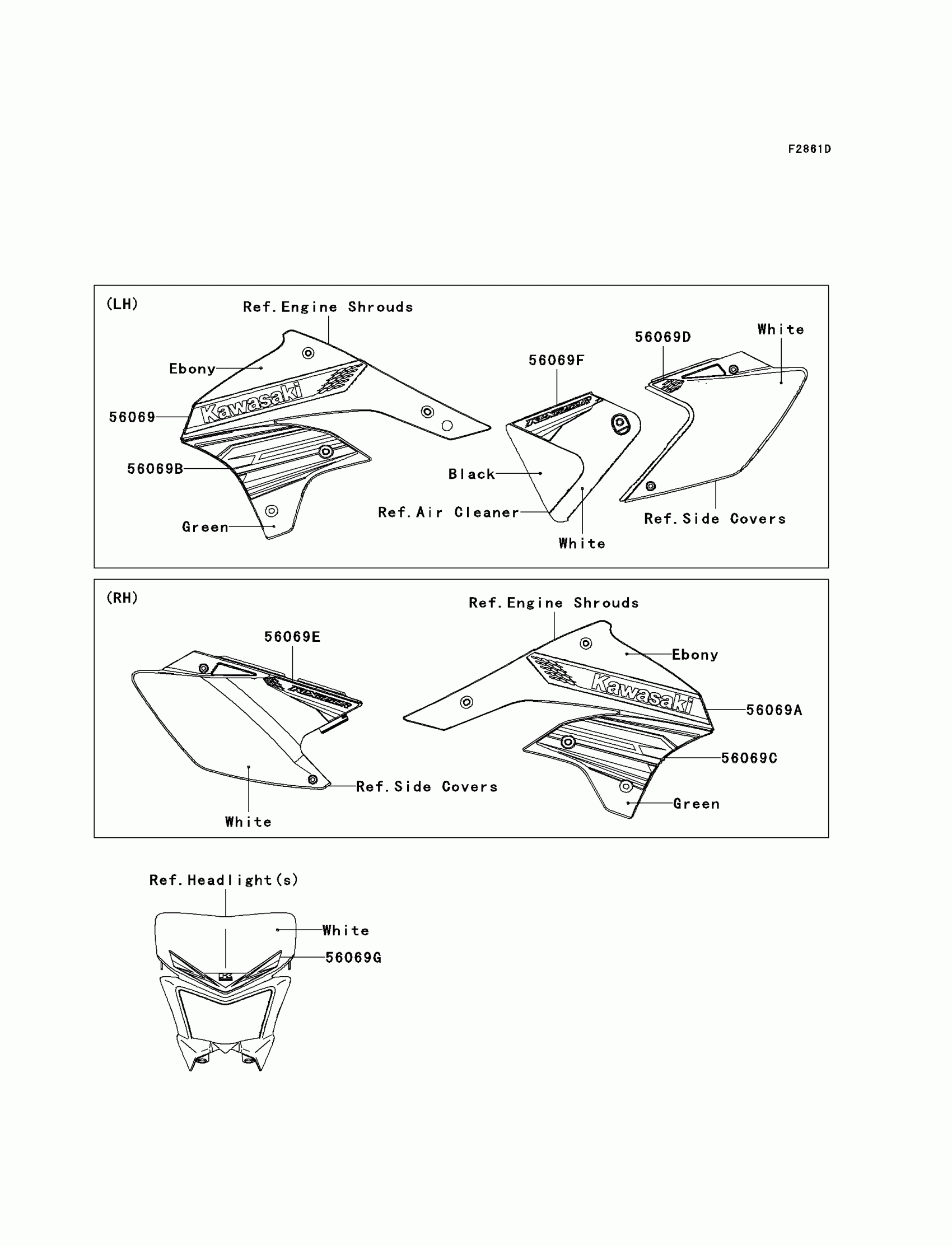

2012 Kawasaki KLX450R (Australian) Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56069

PATTERN,SHROUD,LH,KAWASAKI

56069-1546

1
Out of stock

56069A

PATTERN,SHROUD,RH,KAWASAKI

56069-1547

1
Out of stock

56069B

PATTERN,SHROUD,LH

56069-1548

1
Out of stock

56069C

PATTERN,SHROUD,RH

56069-1550

1
Out of stock

56069D

PATTERN,SIDE COVER,LH

56069-1552

1
Out of stock

56069E

PATTERN,SIDE COVER,RH

56069-1553

1
Out of stock

56069F

PATTERN,AIR CLEANER COVER

56069-1554

1
Out of stock

56069G

PATTERN,HEAD LAMP COVER

56069-1555

1
Out of stock
