2015 Kawasaki KLX450R (Australian) Headlight Diagram

← All diagrams

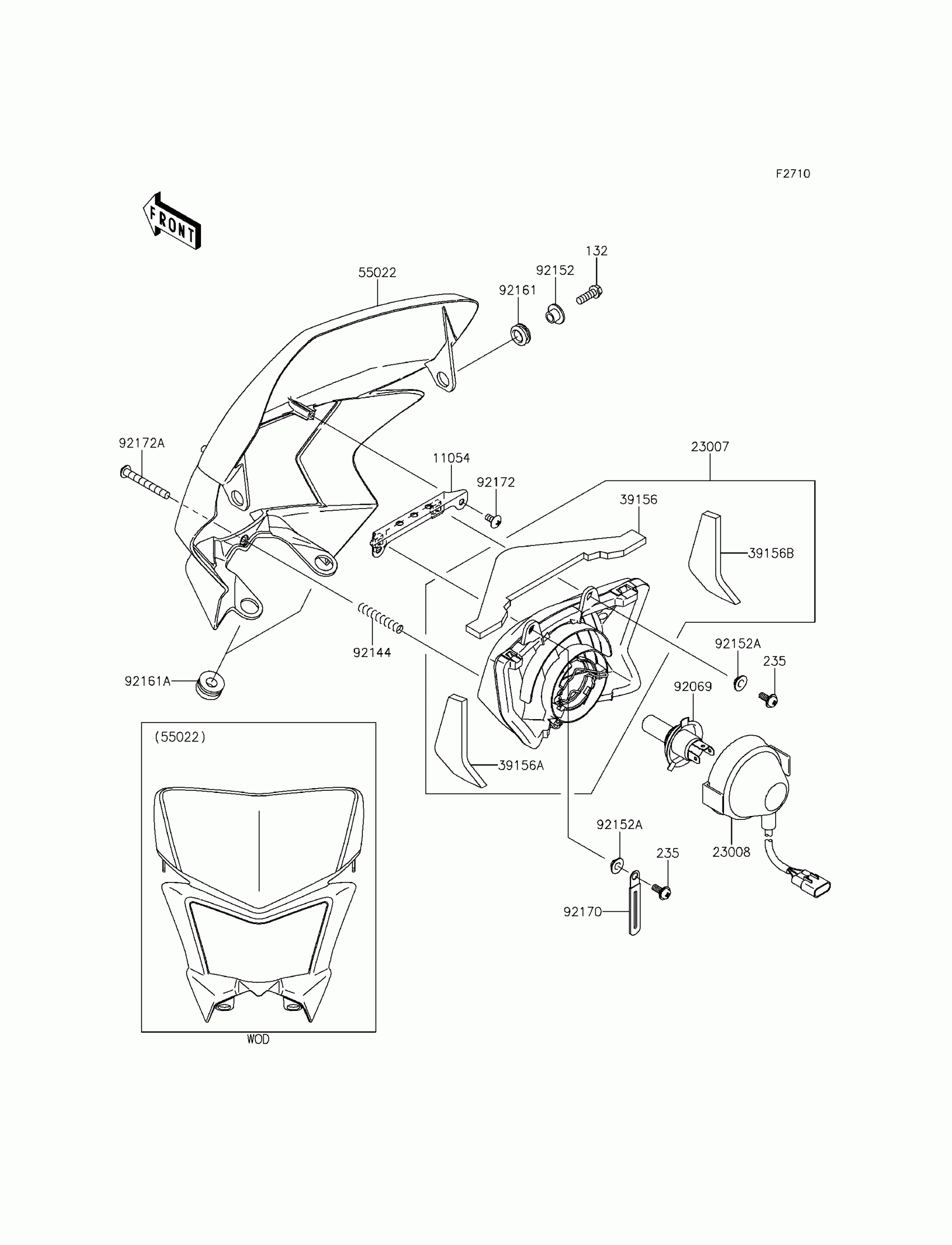

Find the part on the Headlight diagram for your 2015 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Kawasaki KLX450R (Australian) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.75

In stock

235

SCREW-PAN-WP-CROS,5X12

235AA0512

1
Out of stock

11054

BRACKET,HEAD LAMP

11054-1069

1

$11.42

In stock

23007

LENS-COMP,HEAD LAMP

23007-0134

1
Out of stock

23008

SOCKET-ASSY,HEAD LAMP

23008-0064

1
Out of stock

39156

PAD,HEAD LAMP,TOP

39156-0267

1

$25.24

In stock

39156A

PAD,HEAD LAMP,LH

39156-0268

1

$7.81

In stock

39156B

PAD,HEAD LAMP,RH

39156-0269

1

$7.81

In stock

55022

COVER-HEAD LAMP,B.WHITE

55022-0038-266

1
Out of stock

92069

BULB,12V 35/35W

92069-1120

1
Out of stock

92144

SPRING

92144-2266

1
Out of stock

92152

COLLAR

92152-0295

1
Out of stock

92152A

COLLAR

92152-0573

1
Out of stock

92161

DAMPER

92161-0266

1
Out of stock

92161A

DAMPER

92161-0537

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92172A

SCREW,TAPPING,4X40

92172-0311

1
Out of stock
