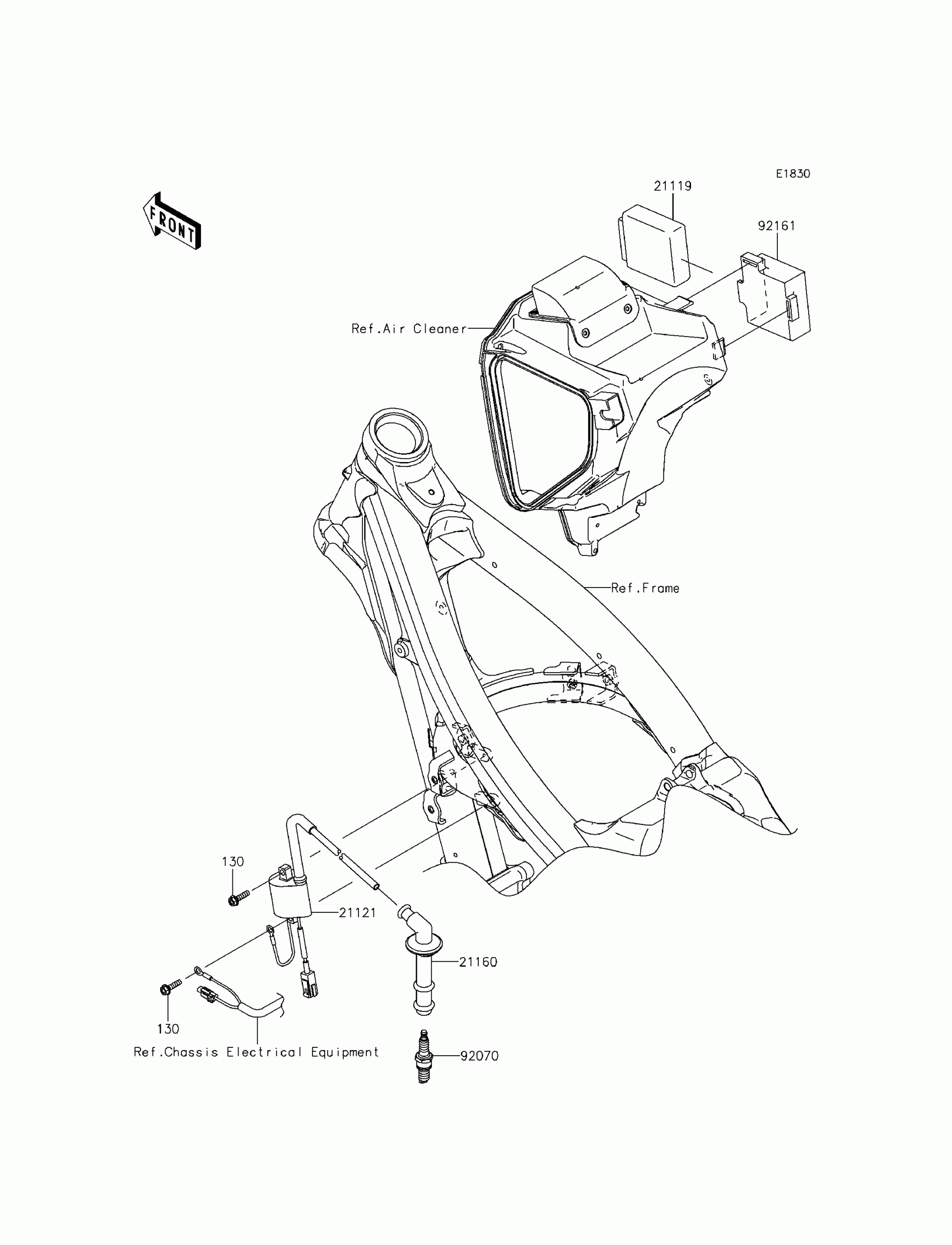

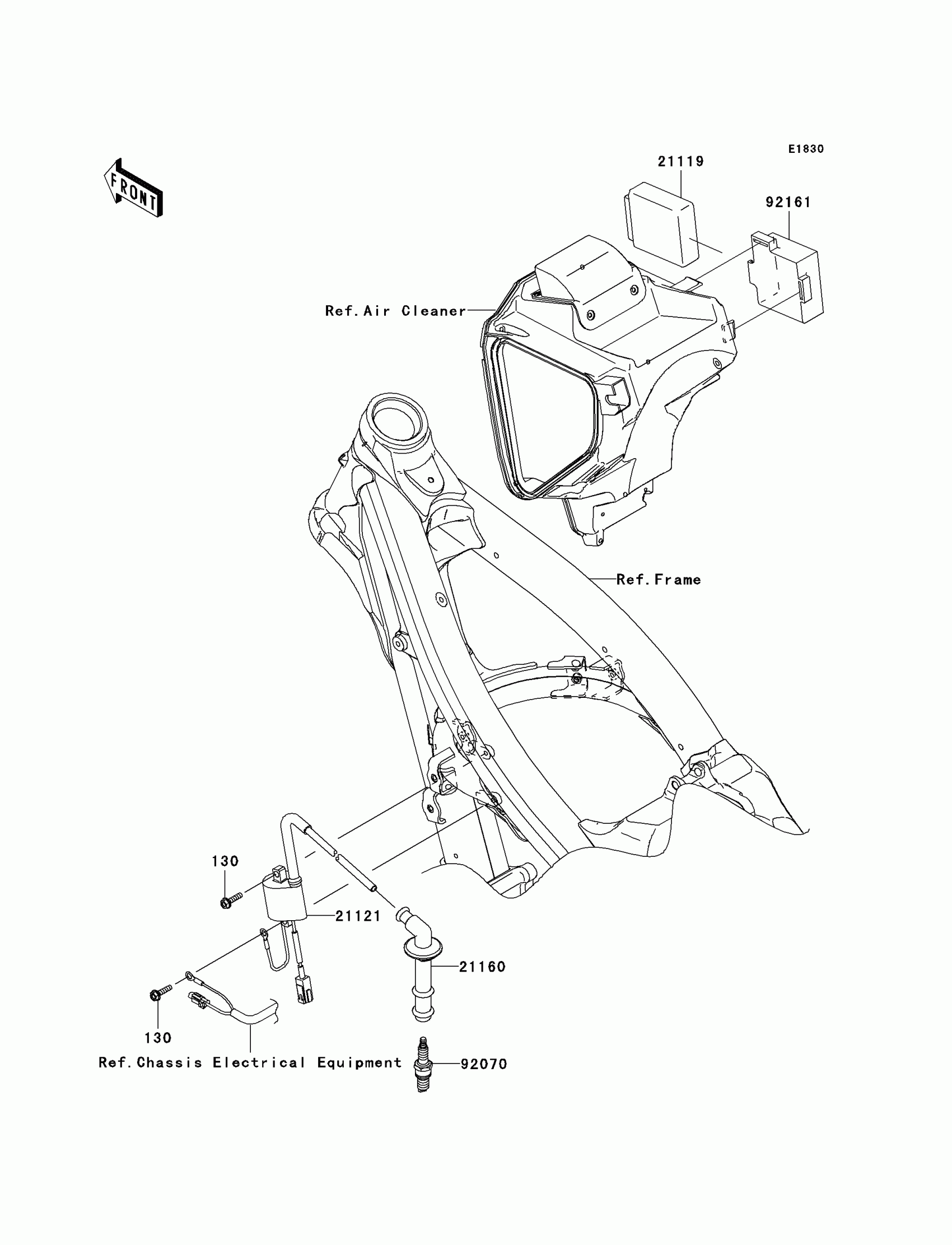

Find the part on the Ignition System diagram for your 2012 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki KLX450R (Australian) Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X20

130BB0520

1

$1.69

In stock

21119

IGNITER

21119-0074

1
Out of stock

21121

COIL-IGNITION

21121-0016

1
Out of stock

21160

CAP-ASSY-PLUG

21160-0011

1
Out of stock

92070

PLUG-SPARK,CPR8EB-9(NGK)

92070-0020

1
Out of stock

92161

DAMPER

92161-0433

1
Out of stock
