2012 Kawasaki KLX450R (Australian) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2012 Kawasaki KLX450R (Australian), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

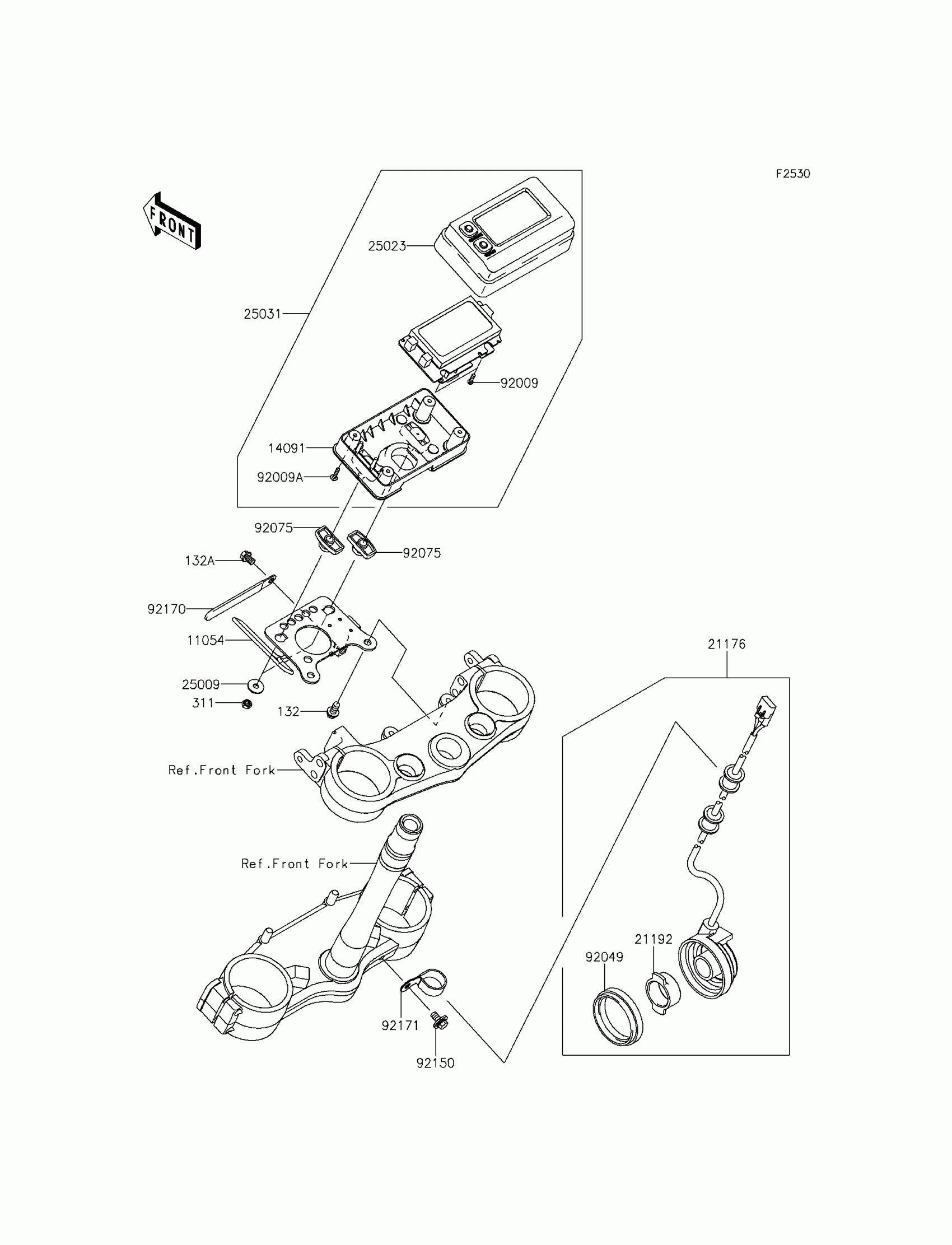

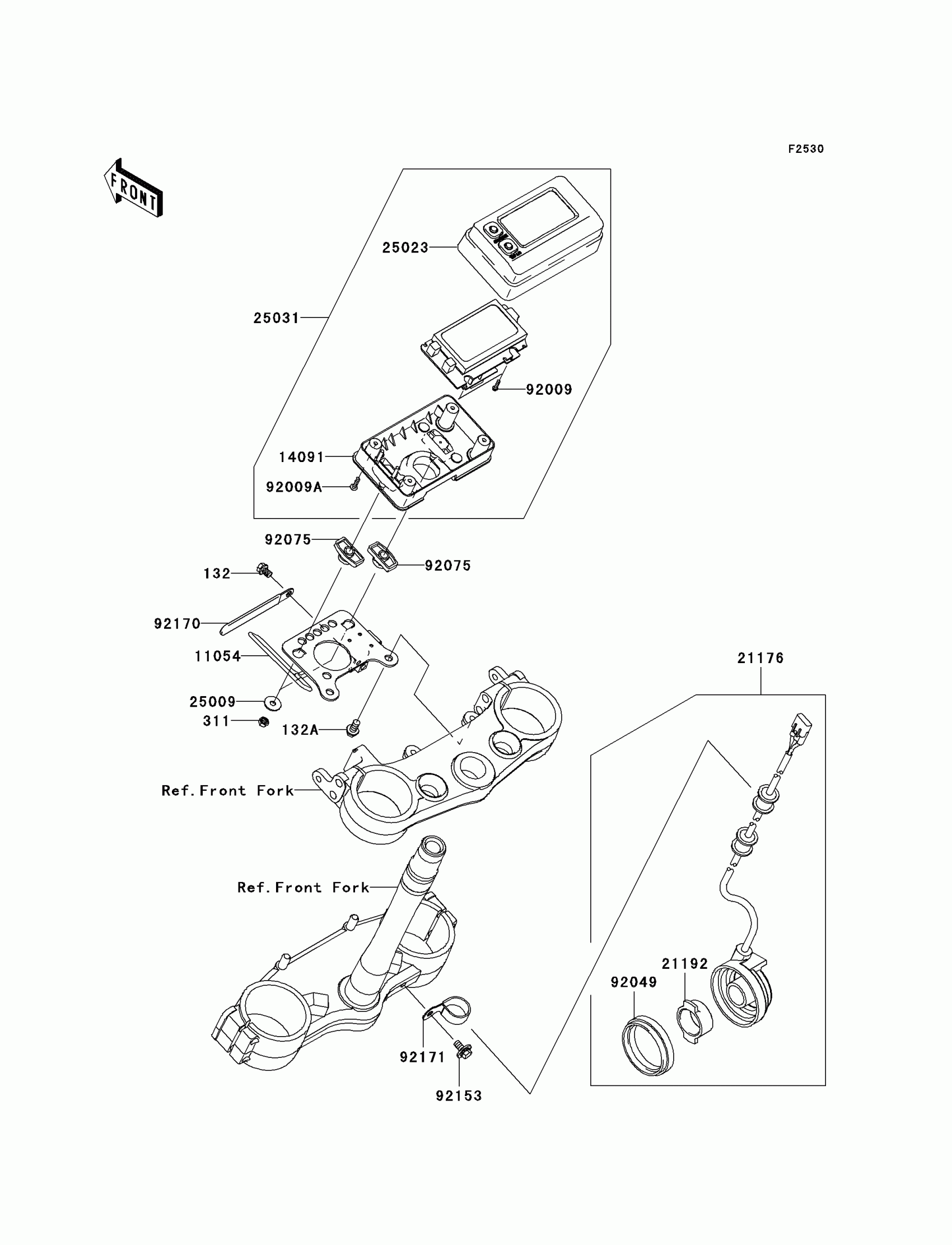

2012 Kawasaki KLX450R (Australian) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$3.24

In stock

132A

1

$1.81

In stock

311

NUT-HEX,5MM

311AB0500

1
Out of stock

11054

BRACKET

11054-1090

1

$14.39

In stock

14091

COVER,METER,LWR

14091-0806

1
Out of stock

21176

SENSOR,SPEED

21176-0080

1
Out of stock

21192

MAGNET,SPEED SENSOR

21192-0003

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

25023

COVER-METER CASE,UPP

25023-0033

1
Out of stock

25031

METER-ASSY,LCD,KPH

25031-0180

1
Out of stock

92009

SCREW,TAPPING,3X12

92009-1028

1
Out of stock

92009A

SCREW,TAPPING,3X14

92009-1592

1
Out of stock

92049

SEAL-OIL

92049-0102

1
Out of stock

92075

DAMPER,METER BRACKET

92075-1581

1
Out of stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92170

CLAMP

92170-1925

1

$1.98

In stock

92171

CLAMP

92171-1279

1
Out of stock
