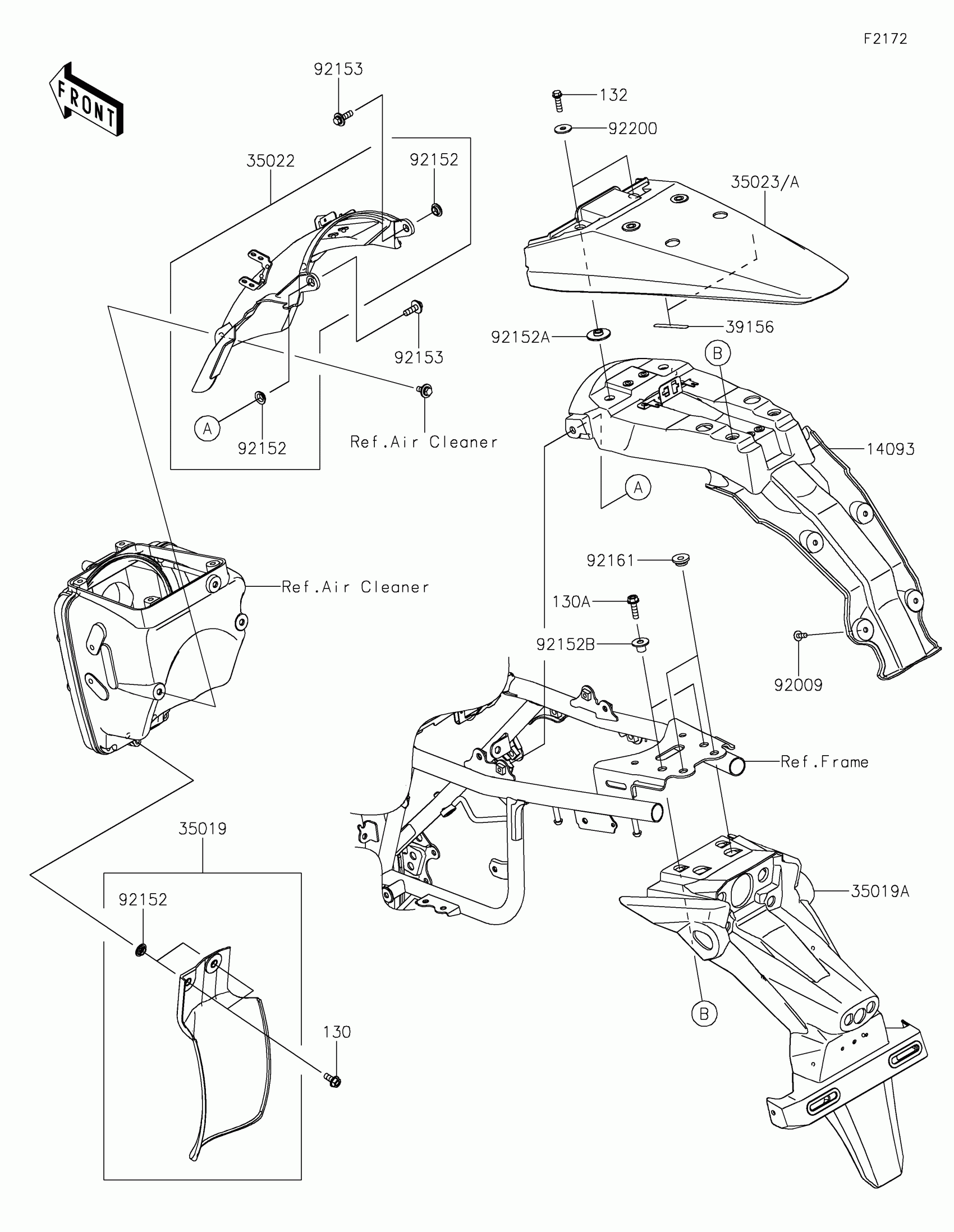

Kawasaki KLX300SM Rear Fender(s) Diagram

Description

Price

14093

COVER,RR FLAP,INNER

14093-1499

$64.82

35019

FLAP,RR FENDER,FR

35019-0004

$8.46

35019A

FLAP,RR FENDER,RR

35019-0699

$62.03

35022

FENDER-COMP-REAR,FR

35022-0114

$36.68

35023

FENDER-REAR,B.GRAY

35023-0512-67A

$33.93

35023A

FENDER-REAR,P.BLUE

35023-0512-67E

$33.93

39156

PAD,6X50

39156-2421

$1.17

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92152

COLLAR,8.8X11.2X4

92152-0909

$4.27

92152A

COLLAR

92152-3817

$8.19

92152B

COLLAR

92152-3820

$8.41

92153

BOLT,6X20

92153-0502

$1.98

92161

DAMPER

92161-1810

$0.95

92200

WASHER,6.5X20X1.6

92200-1962

$3.29

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X22

130BA0622

$1.00

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77
