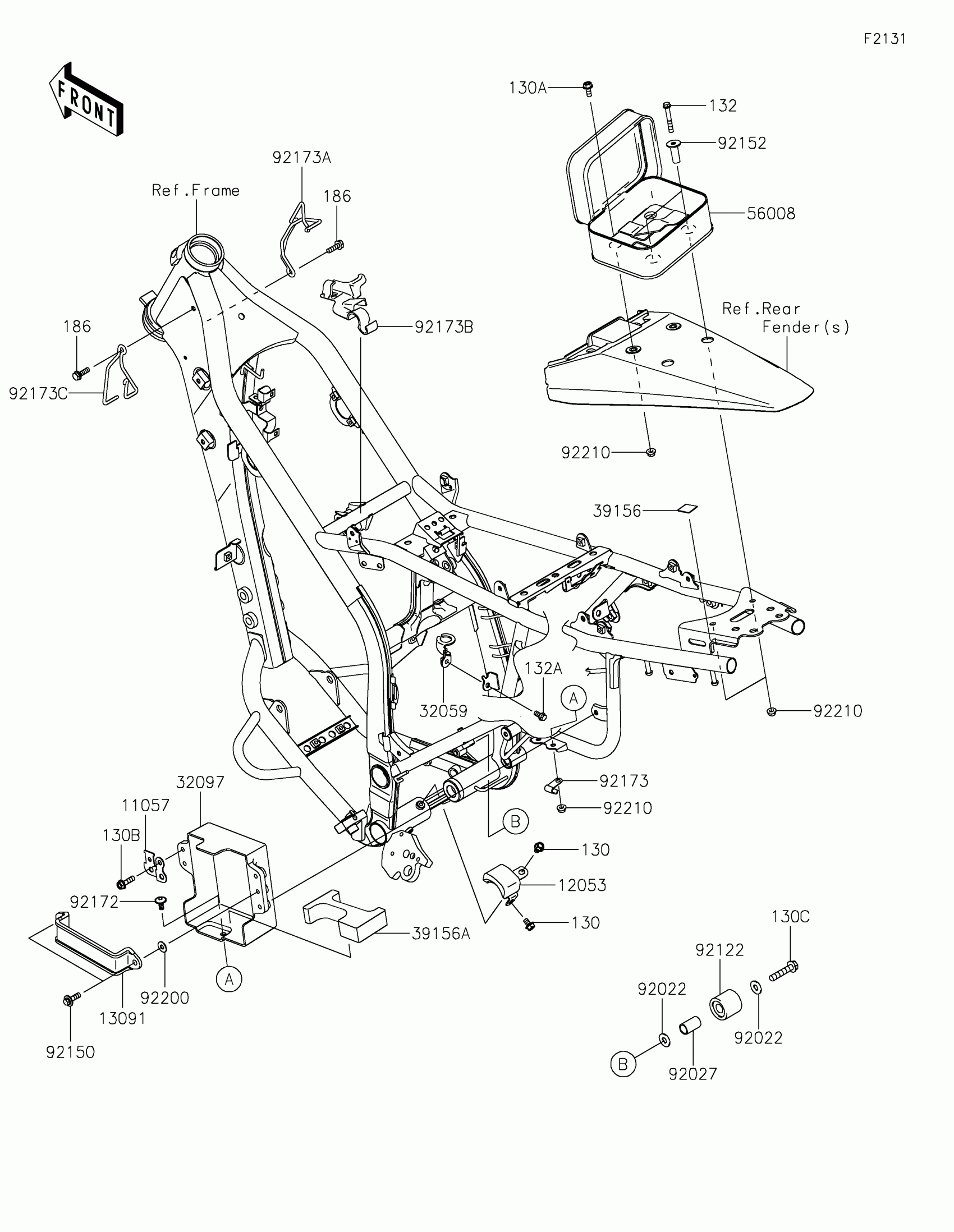

Find the part on the Frame Fittings diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX300SM Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SIGNAL LAMP RELAY

11057-4270

1
Out of stock

12053

GUIDE-CHAIN

12053-0001

1
Out of stock

13091

HOLDER

13091-1875

1
Out of stock

32059

BRACKET-SWITCH,BRAKE

32059-1117

1
Out of stock

32097

CASE-BATTERY

32097-0001

1
Out of stock

39156

PAD,20X20X1

39156-2729

1
Out of stock

39156A

PAD,BATTERY

39156-2766

1
Out of stock

56008

BAG,TOOL,BLACK

56008-0037-MA

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92027

COLLAR,CHAIN ROLLER

92027-1670

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1153

1
Out of stock

92150

BOLT,FLANGED,6X22

92150-1481

1
Out of stock

92152

COLLAR

92152-2992

1
Out of stock

92172

SCREW,6X14

92172-0004

1
Out of stock

92173

CLAMP,HARNESS

92173-1368

1
Out of stock

92173A

CLAMP,HARNESS,RH

92173-2206

1
Out of stock

92173B

CLAMP,UNDER TANK

92173-2311

1
Out of stock

92173C

CLAMP,HARNESS,LH

92173-2312

1
Out of stock

92200

WASHER,6.5X16X1.0

92200-0796

1
Out of stock

92210

NUT,FLANGED,6MM

92210-0630

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130B

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

130C

BOLT-FLANGED,8X40

130BA0840

1
Out of stock

132

BOLT-FLANGED-SMALL,6X40

132BA0640

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

1
Out of stock

186

BOLT-UPSET-WP,6X20

186BA0620

1
Out of stock
