2025 Kawasaki KLX300SM Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2025 Kawasaki KLX300SM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

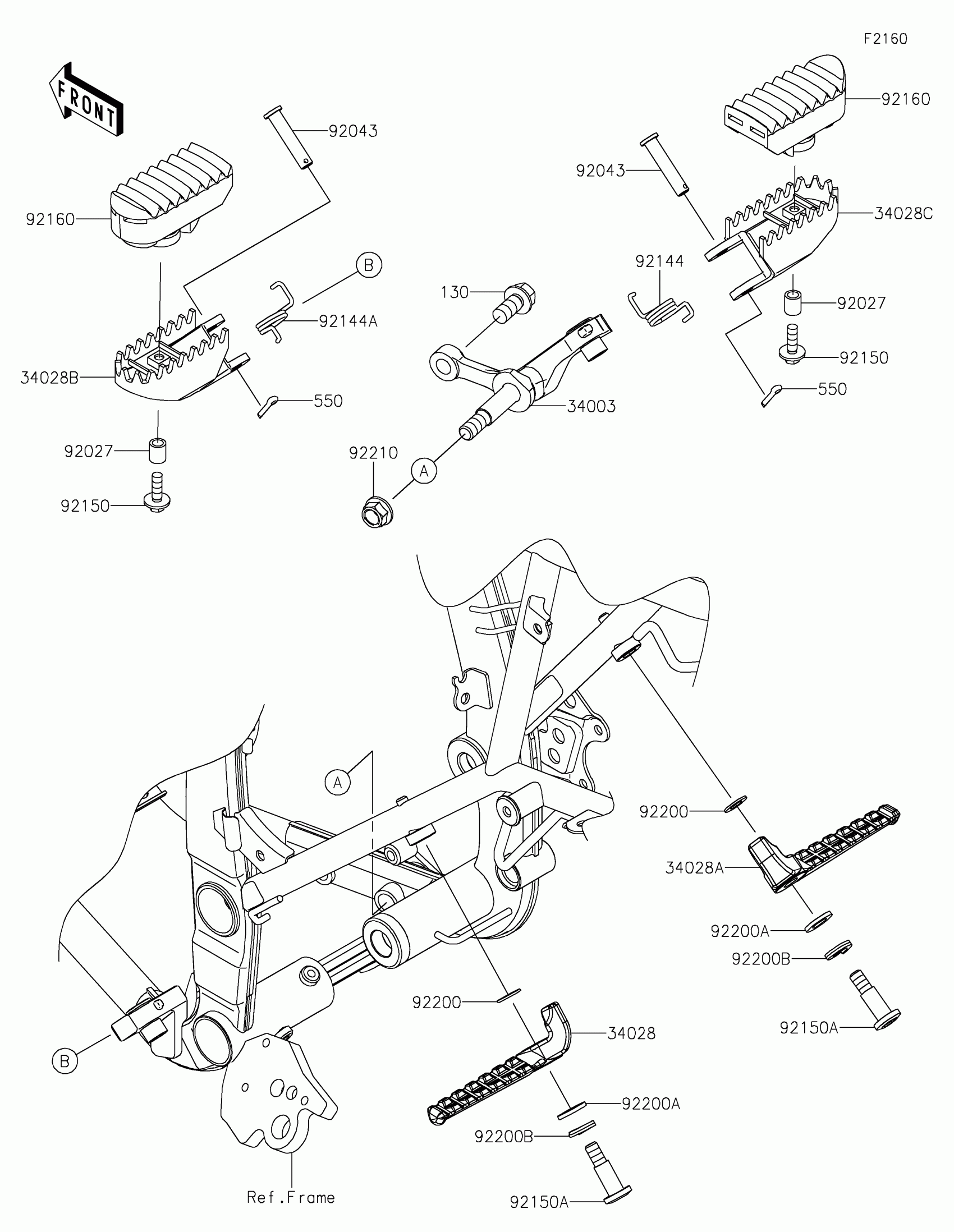

2025 Kawasaki KLX300SM Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,RH,F.S.BLACK

34003-0084-18R

1

$122.64

In stock

34028

STEP,RR,LH

34028-0325

1

$52.41

In stock

34028A

STEP,RR,RH

34028-0326

1

$52.41

In stock

34028B

STEP,FR,LH

34028-1370

1

$40.91

In stock

34028C

STEP,FR,RH

34028-1371

1

$40.91

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92043

PIN,8X35.5

92043-115

1

$9.22

In stock

92144

1

$7.29

In stock

92144A

1

$1.32

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,SOCKET,8X34

92150-1584

1

$7.56

In stock

92160

DAMPER,STEP

92160-1401

1

$9.47

In stock

92200

WASHER,8.5X16X1.2

92200-0089

1
Out of stock

92200A

WASHER,10.5X19X2.3

92200-1042

1
Out of stock

92200B

WASHER,SPRING

92200-1133

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

130

BOLT-FLANGED,10X20

130CA1020

1

$1.76

In stock

550

PIN-COTTER,2.5X15

550AA2515

1

$0.51

In stock
