2001 Kawasaki KLX300R Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2001 Kawasaki KLX300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

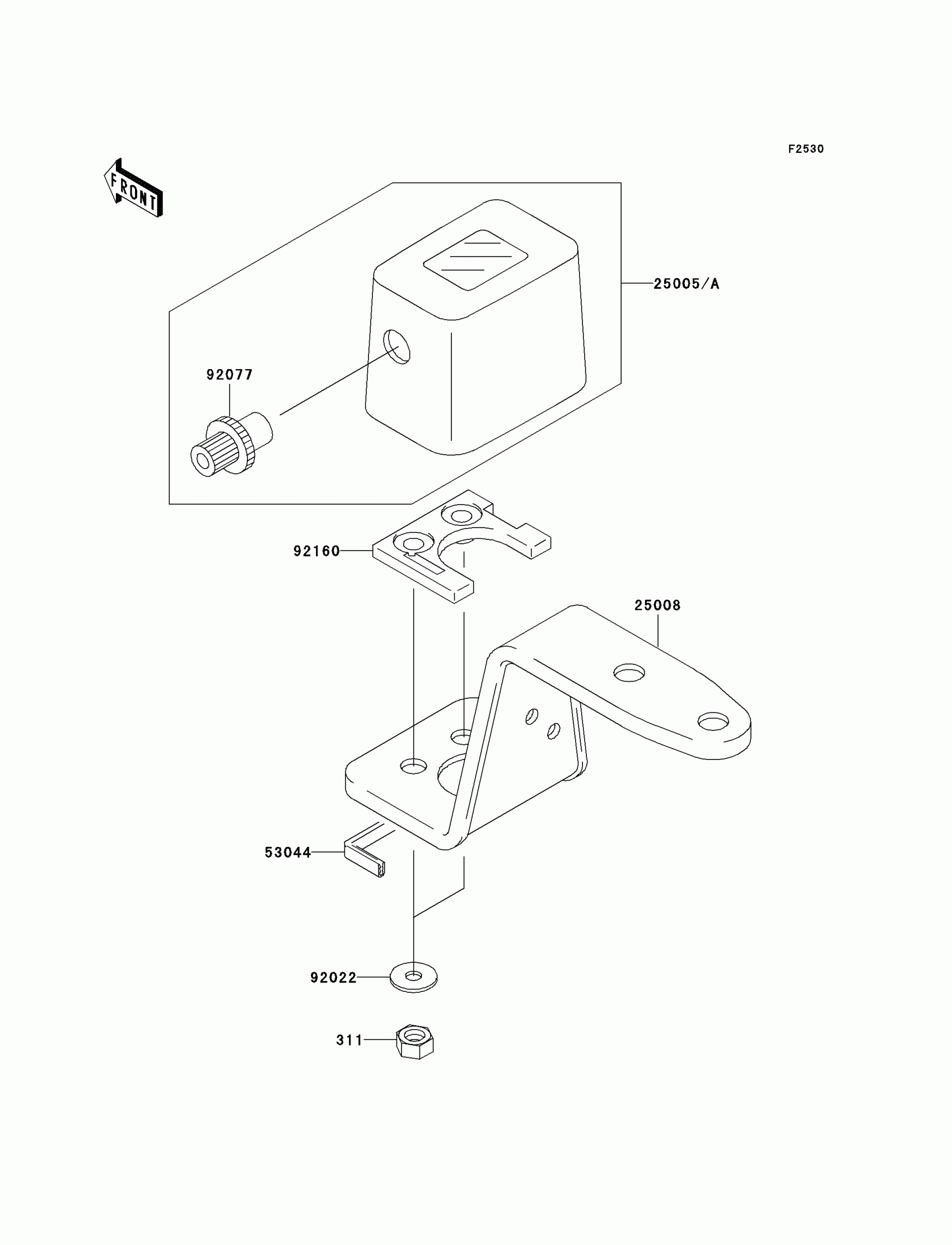

2001 Kawasaki KLX300R Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX

311B0400

1
Out of stock

25008

BRACKET-METER

25008-1196

1
Out of stock

53044

TRIM,L=157

53044-1276

1

$8.63

In stock

92022

WASHER,4.3X12.5X1

92022-1888

1
Out of stock

92077

KNOB,TRIP

92077-1114

1

$12.69

In stock

92160

DAMPER

92160-1452

1

$5.34

In stock

25005

1

$203.62

In stock

25005A

1

$264.65

In stock
