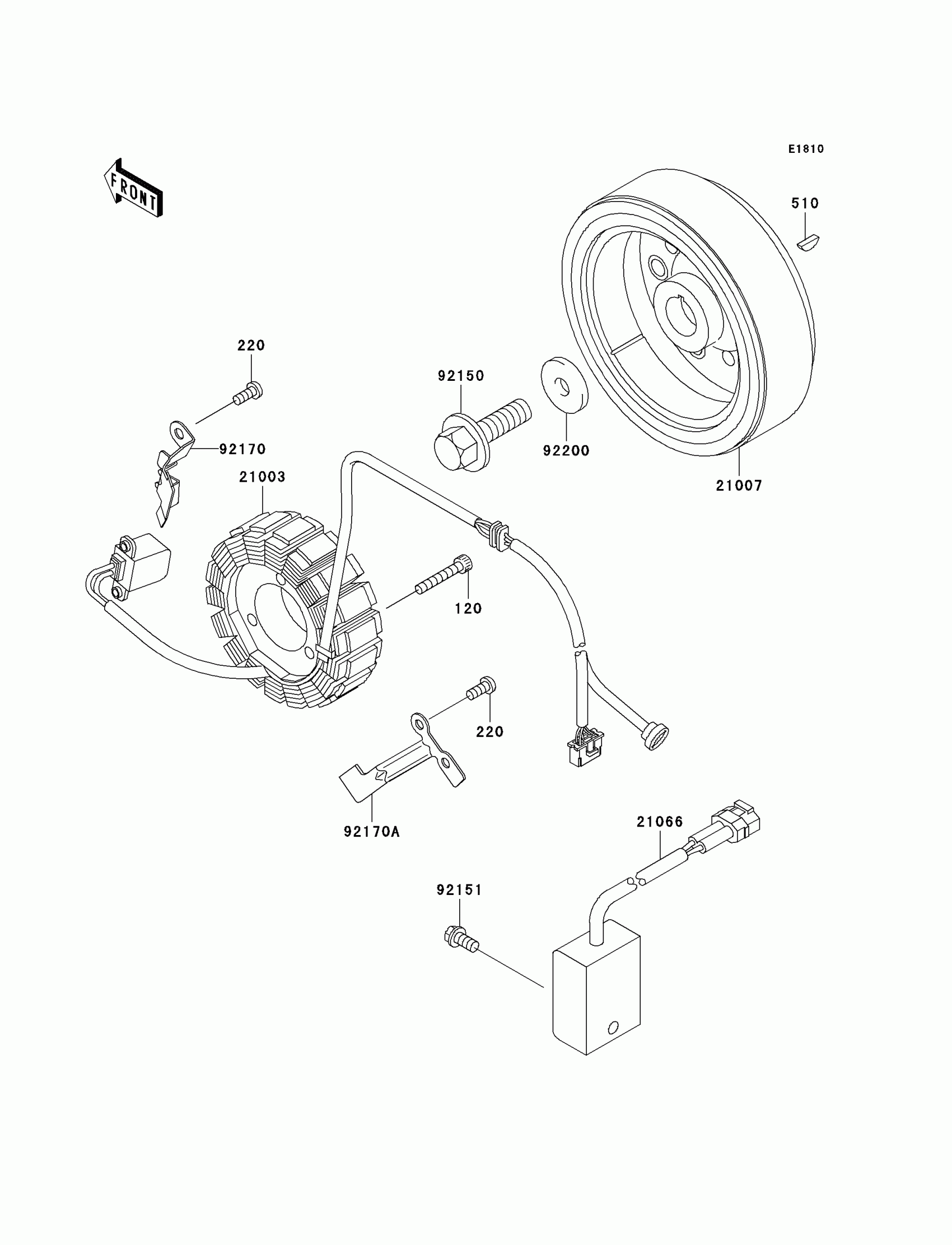

Kawasaki KLX300R Generator Diagram

#

Description
Price

120

BOLT-SOCKET,5X30

120P0530

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

220

SCREW-PAN-CROS

220B0512

$0.47

510

KEY-WOODRUFF

510A3100

$1.87

21003

STATOR

21003-1274

$629.56

21007

ROTOR,MAGNETO

21007-1314

$625.64

21066

REGULATOR-VOLTAGE

21066-1072

$268.64

92150

BOLT,10X32

92150-1134

$9.27

92170

CLAMP

92170-1346

$4.66

92170A

CLAMP

92170-1347

$5.14

92200

WASHER,10X30X4

92200-1185

$12.81
