2001 Kawasaki KLX300R Ignition System Diagram

← All diagrams

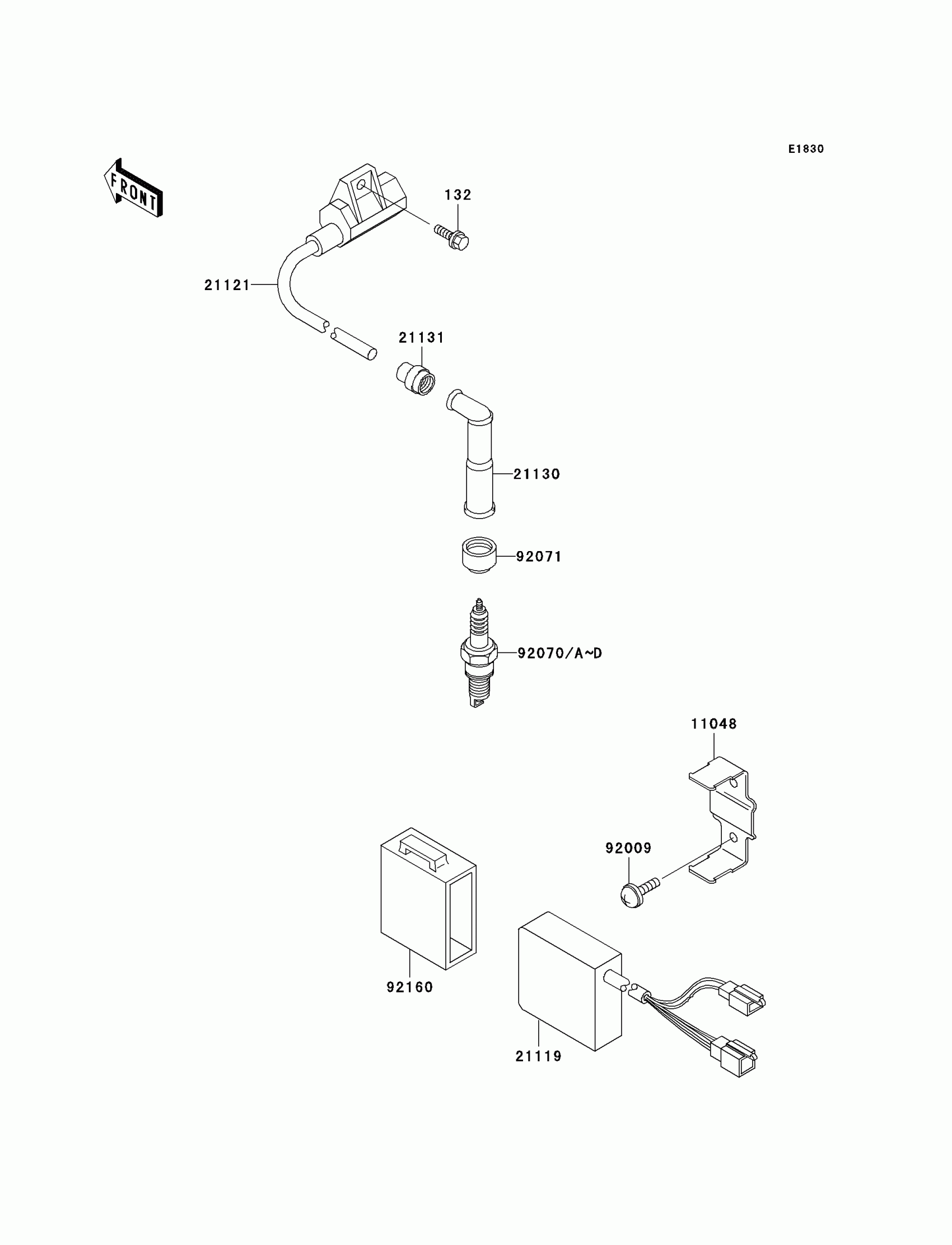

Find the part on the Ignition System diagram for your 2001 Kawasaki KLX300R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Kawasaki KLX300R Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132J0616

1
Out of stock

11048

BRACKET

11048-1291

1

$29.63

In stock

21119

IGNITER

21119-1479

1

$590.34

In stock

21121

COIL-IGNITION

21121-1152

1

$138.32

In stock

21130

CAP-SPARK PLUG

21130-1002

1

$52.70

In stock

21131

1

$4.88

In stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92070

Not Available As Spare Part - Friction Washer

1
Out of stock

92070A

1

$6.44

In stock

92070B

Not Available As Spare Part - Friction Washer

1
Out of stock

92070C

1

$6.44

In stock

92070D

PLUG-SPARK,CR9E(NGK)

92070-1266

1
Out of stock

92071

GROMMET,PLUG CAP

92071-1124

1

$9.14

In stock

92160

DAMPER,IGNITER

92160-1259

1

$20.88

In stock
