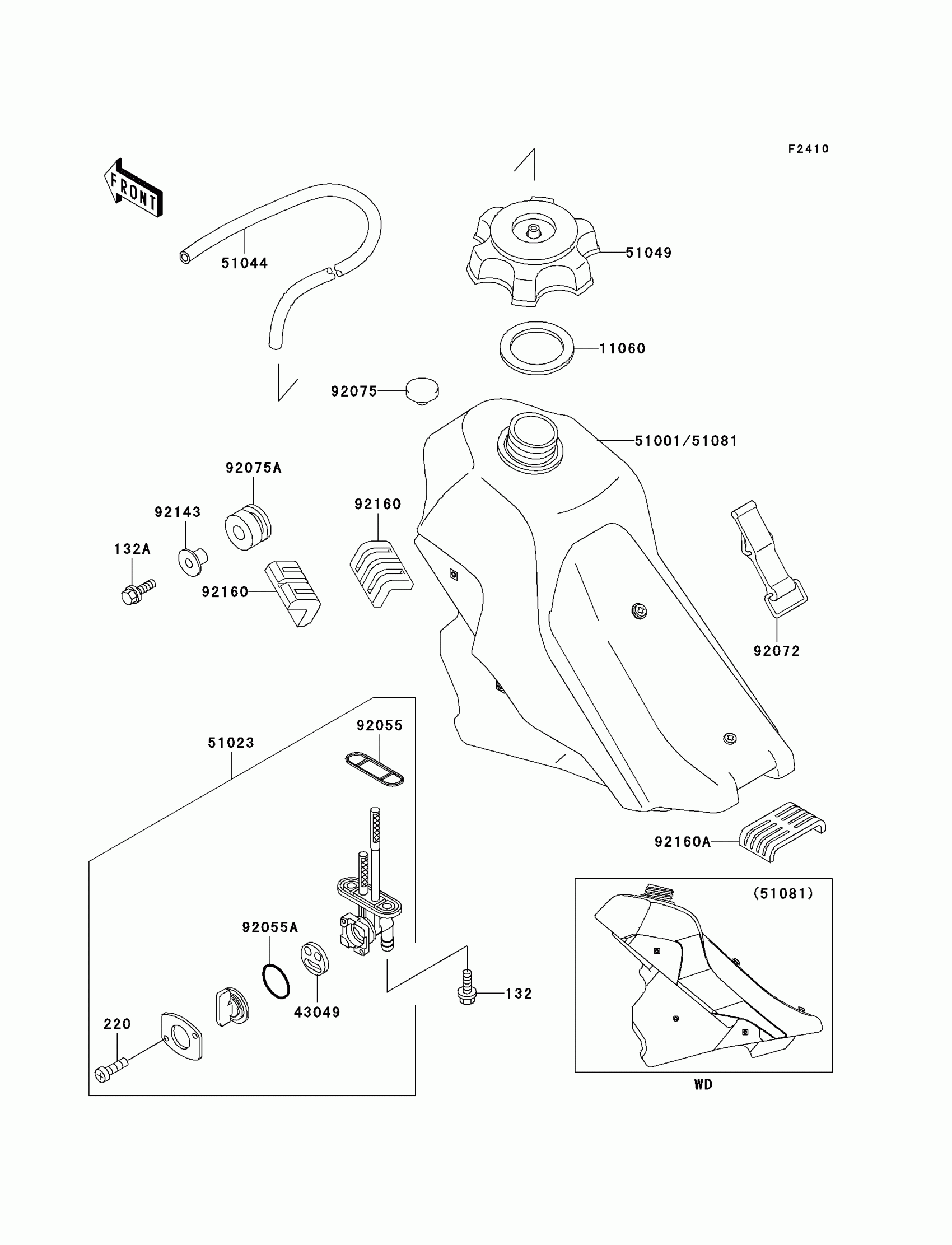

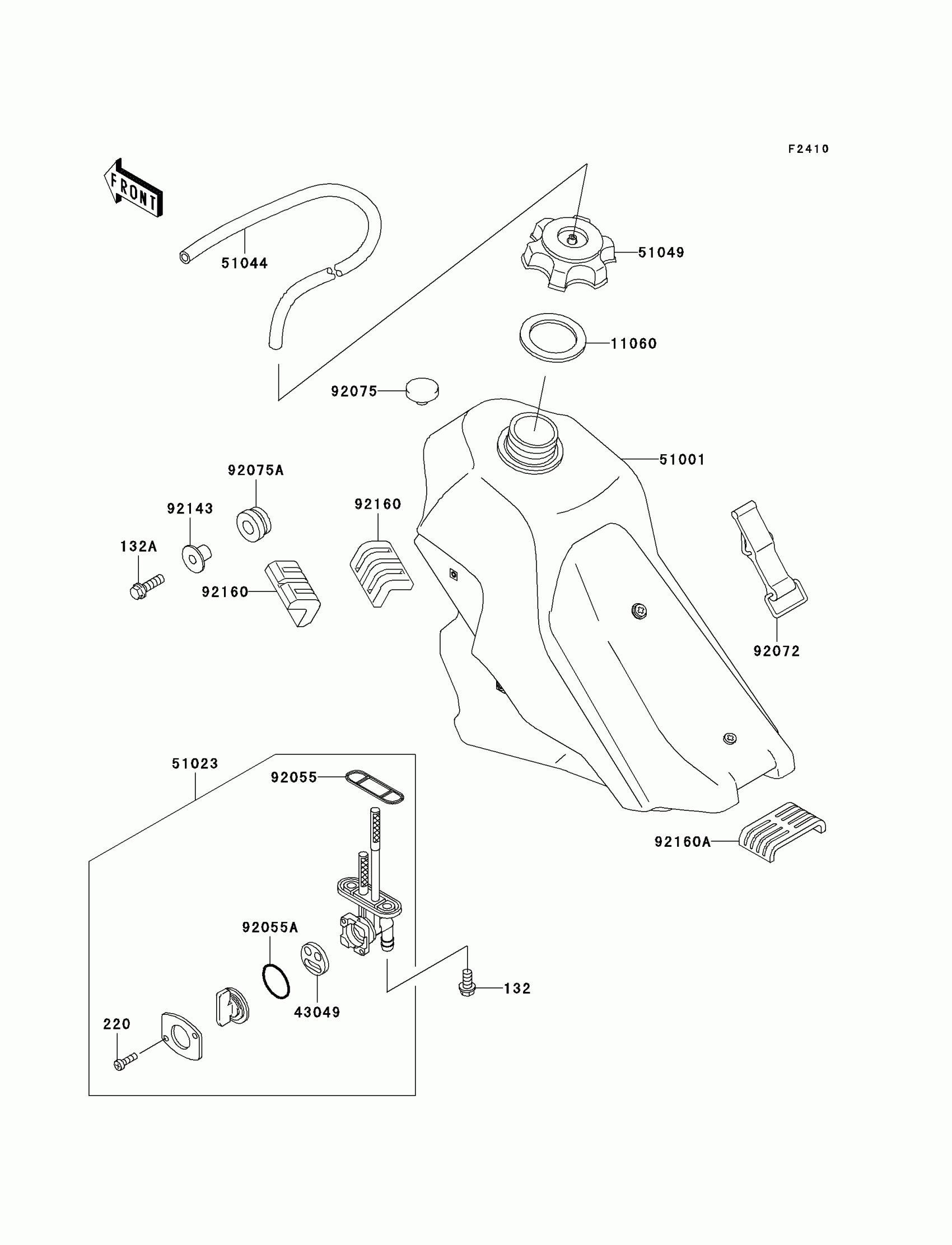

Kawasaki KLX300R Fuel Tank Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

132A

BOLT-FLANGED-SMALL

132G0620

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

11060

GASKET,FUEL TANK CAP

11060-1340

$4.64

43049

PACKING,TAP VALVE

43049-1066

$5.54

51001

TANK-COMP-FUEL,L.GREEN

51001-1506-6W

Unavailable

51023

TAP-ASSY,FUEL

51023-1230

$134.97

51044

TUBE-ASSY

51044-1185

$13.12

51049

CAP-TANK,FUEL

51049-1108

$28.60

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055A

RING-O,TAP LEVER

92055-1419

$3.81

92072

BAND,FUEL TANK

92072-1229

$9.68

92075

DAMPER RUBB MAIN STND

92075-005

$3.29

92075A

DAMPER,RUBBER

92075-1123

$3.81

92143

COLLAR

92143-1353

$6.54

92160

DAMPER,FUEL TANK

92160-1328

$5.61

92160A

DAMPER,FUEL TANK,RR

92160-1397

$7.71
