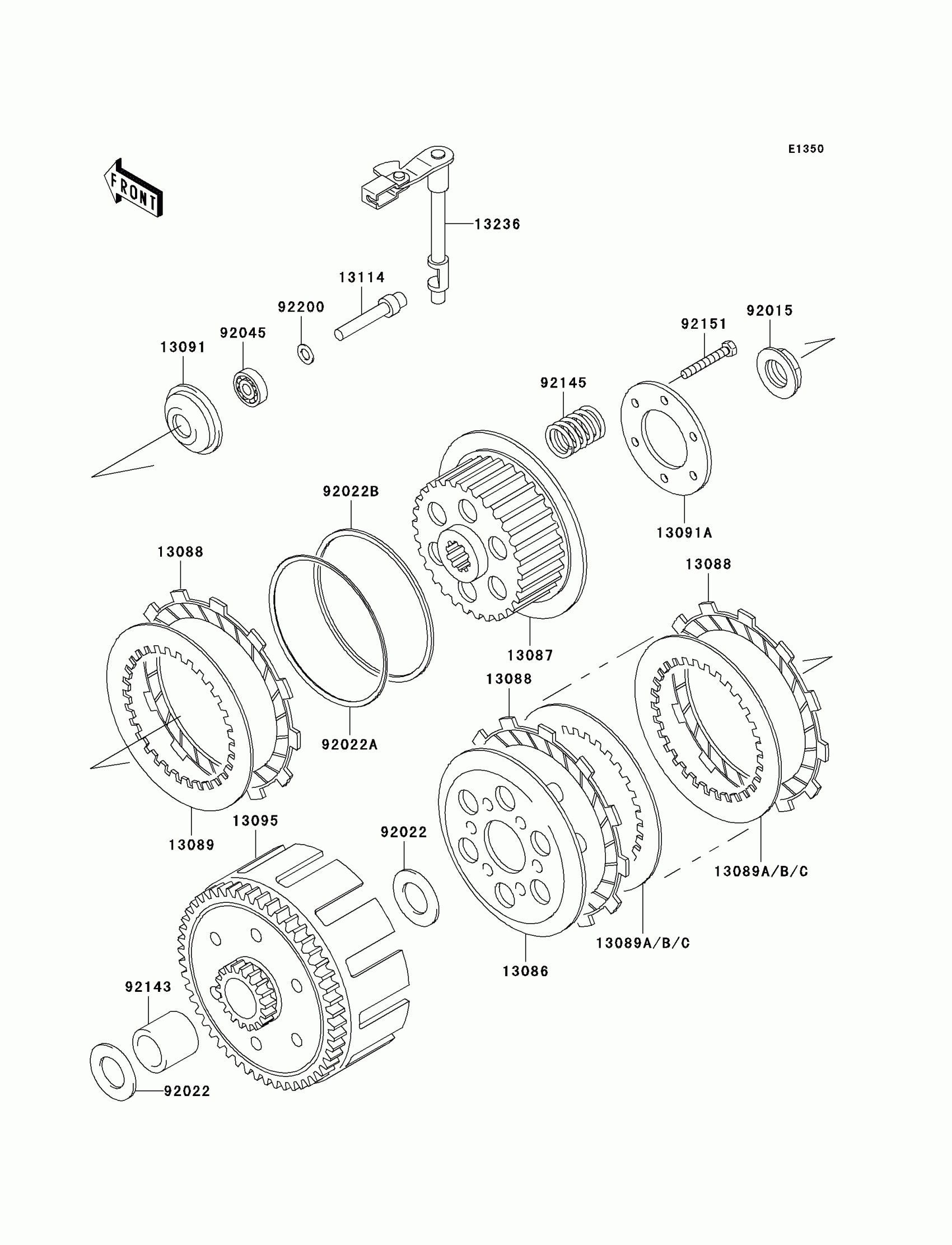

Kawasaki KLX300R Clutch Diagram

#

Description
Price

13086A

WHEEL-CLUTCH

13086-1072

$47.31

13087

HUB-CLUTCH

13087-1150

$135.81

13088

PLATE-FRICTION

13088-1125

$16.66

13089

PLATE-CLUTCH

13089-1085

$10.42

13089A

PLATE-CLUTCH,T=1.6

13089-1094

$9.73

13089B

PLATE-CLUTCH,T=2.0

13089-1116

Unavailable

13089C

PLATE-CLUTCH,T=1.2

13089-1117

Unavailable

13091

HOLDER,CLUTCH PUSHER

13091-1134

$13.39

13091A

HOLDER,CLUTCH SPRING

13091-1683

$20.69

13095A

HOUSING-COMP-CLUTCH

13095-1360

Unavailable

13114A

PUSHER-CLUTCH

13114-1068

$24.34

13236

LEVER-COMP

13236-1259

$50.86

92015

NUT,16MM

92015-1581

$14.81

92022

WASHER,20.5X34X2

92022-031

$12.47

92022A

WASHER,JUDDER SPRING

92022-1974

$14.36

92022B

WASHER,JUDDER SPRING SEAT

92022-1993

$14.36

92045

BEARING-BALL,627

92045-1236

$16.08

92143

COLLAR

92143-1669

$33.59

92145

SPRING

92145-1095

$14.08

92151

BOLT,5X35

92151-1218

$2.27

92200

WASHER,7X12.5X0.8

92200-1197

$3.01
