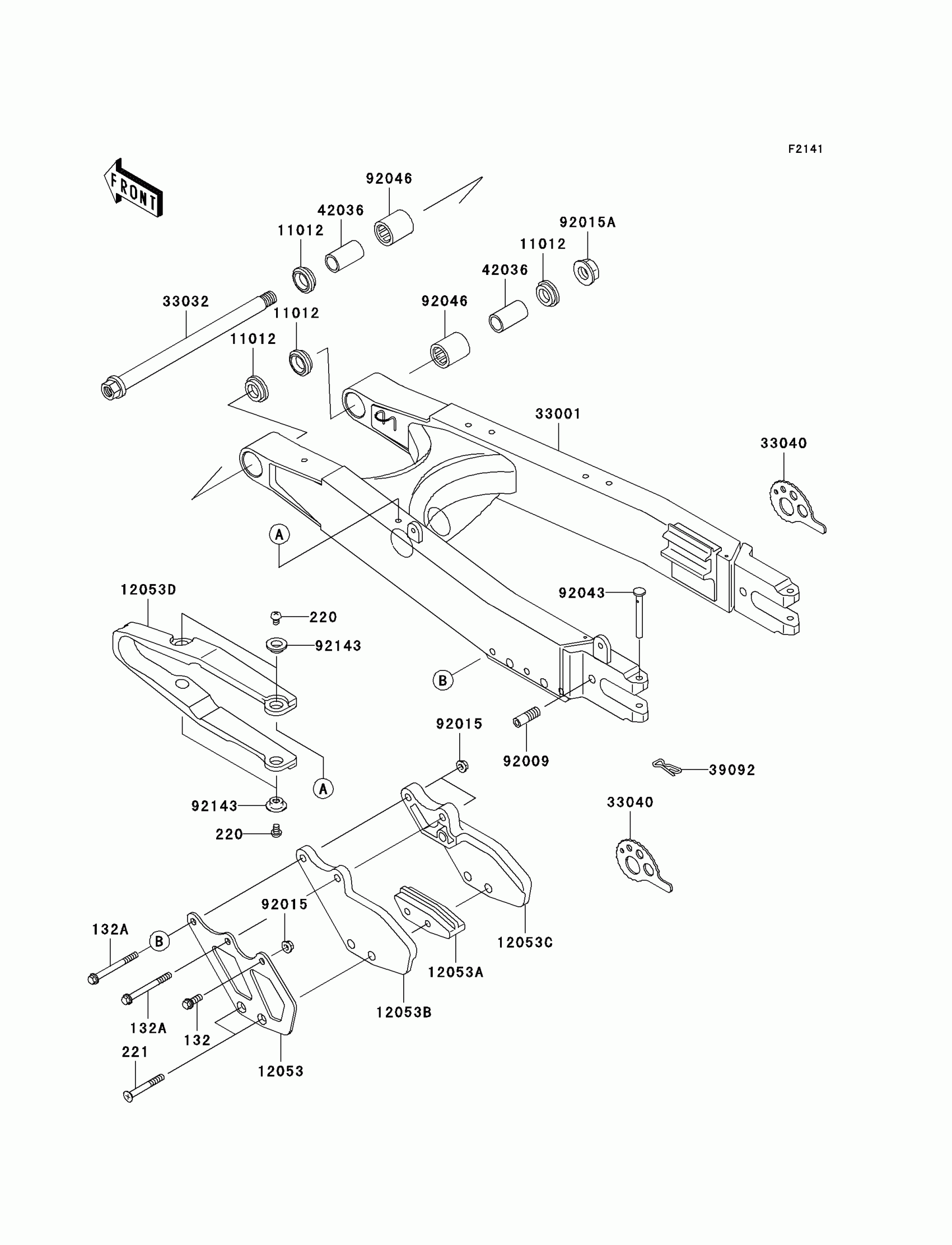

Find the part on the Swingarm diagram for your 2007 Kawasaki KLX250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki KLX250S Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X60

132G0660

1
Out of stock

220

1

$0.63

In stock

221

SCREW-CSK-CROS,6X50

221B0650

1
Out of stock

11012

CAP,SWING ARM

11012-1259

1

$20.21

In stock

12053

1

$30.83

In stock

12053A

1

$40.84

In stock

12053B

1

$55.05

In stock

12053C

1

$55.05

In stock

12053D

1

$49.57

In stock

33001

ARM-COMP-SWING,P.SILVER

33001-1564-458

1

$960.90

In stock

33032

SHAFT-SWING ARM

33032-0006

1

$64.64

In stock

33040

ADJUSTER-CHAIN

33040-1113

1

$37.02

In stock

39092

PIN-HAIR

39092-0001

1

$4.15

In stock

42036

SLEEVE,SWING ARM

42036-1064

1

$19.97

In stock

92009

SCREW,SET,10X29

92009-1686

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,14MM

92015-1407

1

$7.86

In stock

92043

PIN,6X45

92043-1590

1

$5.74

In stock

92046

BEARING-NEEDLE

92046-1128

1
Out of stock

92143

COLLAR

92143-1156

1

$4.93

In stock
