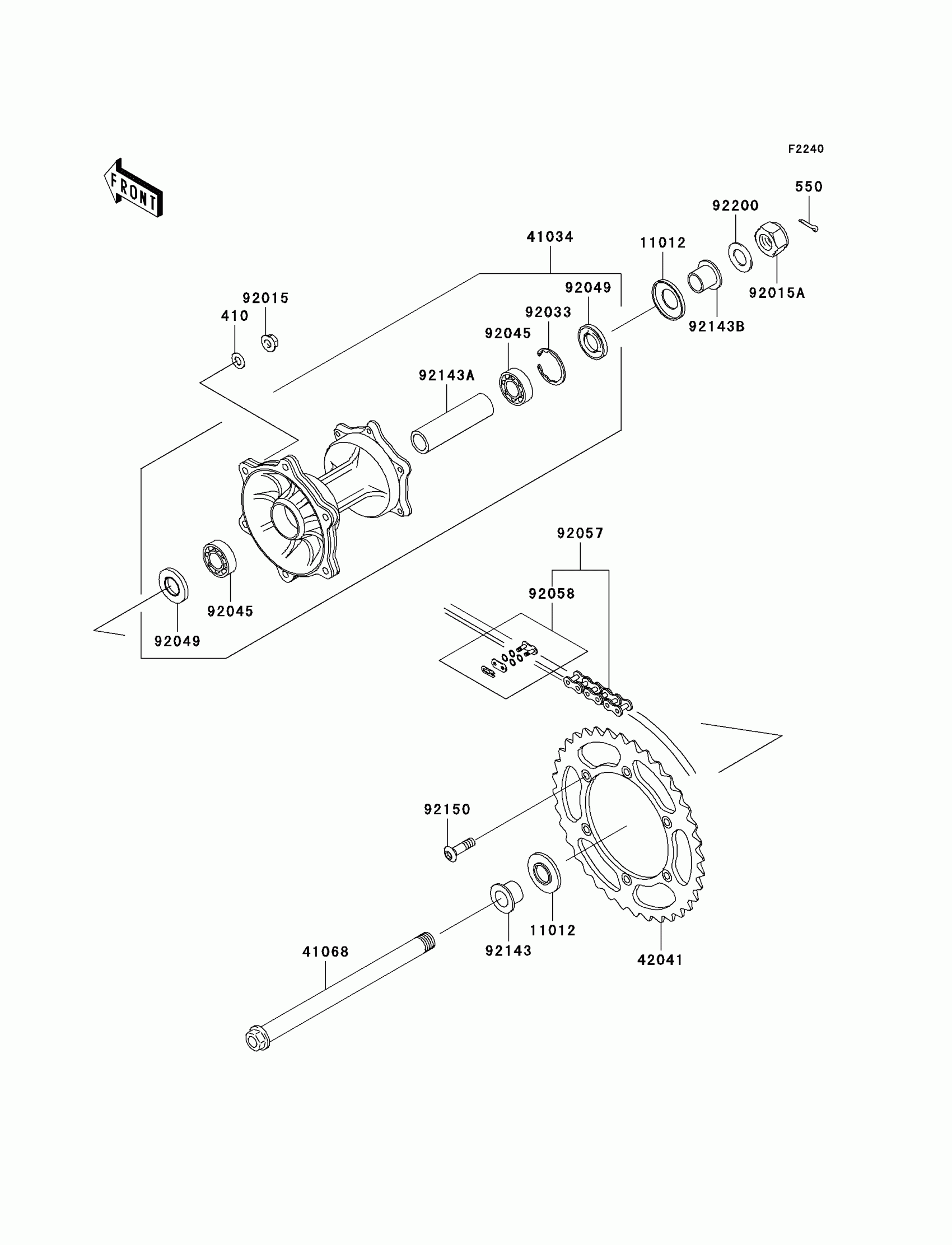

Kawasaki KLX250S Rear Hub Diagram

#

Description
Price

410

WASHER PLAIN 8MM

410B0800

Unavailable

550

PIN-COTTER,3.0X25

550D3025

Unavailable

11012

CAP,AXLE

11012-1581

$4.88

41034

DRUM-ASSY,REAR BRAKE

41034-1216

$636.18

41068

AXLE,RR

41068-0014

$91.53

42041

SPROCKET-HUB,42T

42041-1421

$60.59

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,LOCK,20MM

92015-1770

$28.80

92033

RING-SNAP,42MM

92033-1041

$4.64

92045

BEARING-BALL,6004X8JRLLX2/3A

92045-1239

$33.49

92049

SEAL-OIL,BJNC2 25425

92049-1203

$16.78

92057

CHAIN,DRIVE,EK520LV-OX106L

92057-1367

$356.50

92058

JOINT-CHAIN,DRIVE,EK

92058-1070

$11.34

92143

COLLAR,RR AXLE,L=22

92143-1259

$36.10

92143A

COLLAR,RR BRAKE DRUM,L=105

92143-1402

Unavailable

92143B

COLLAR,RR AXLE,RH,L=20

92143-1840

$36.10

92150

BOLT,SOCKET,8X28

92150-1978

$6.55

92200

WASHER,20.2X36X2

92200-1146

$4.42
