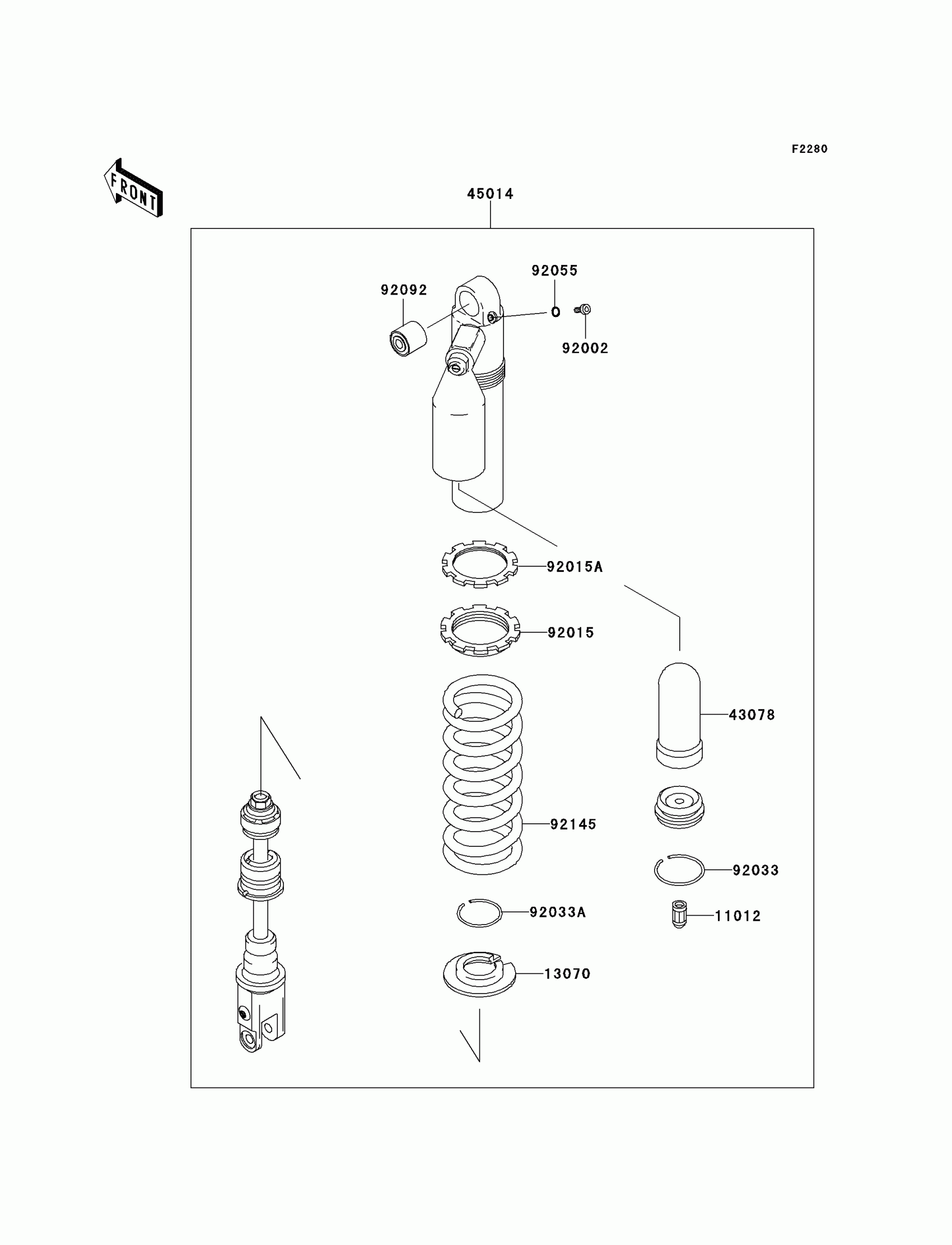

Kawasaki KLX250S Shock Absorber(s) Diagram

Description

Price

11012

CAP,VALVE AIR

11012-1391

$5.02

13070

GUIDE,SPRING

13070-1165

$36.09

43078

RESERVOIR,SHOCKABSORBER

43078-1094

$125.95

45014

SHOCKABSORBER

45014-5020

$1,519.37

92002

BOLT,DRAIN

92002-1955

$10.73

92015

NUT,SPRING ADJUST

92015-1703

$41.28

92015A

NUT,SPRING ADJUST LOCK

92015-1704

$33.96

92033

RING-SNAP

92033-1209

$7.01

92033A

RING-SNAP,SHOCKABSORBER

92033-1228

$4.39

92055

RING-O

92055-1383

$3.14

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1062

$29.37

92145

SPRING,SHOCK,K=54N/MM,I.SILVER

92145-1161-8V

$545.22
