1996 Kawasaki KLX250R Rear Suspension Diagram

← All diagrams

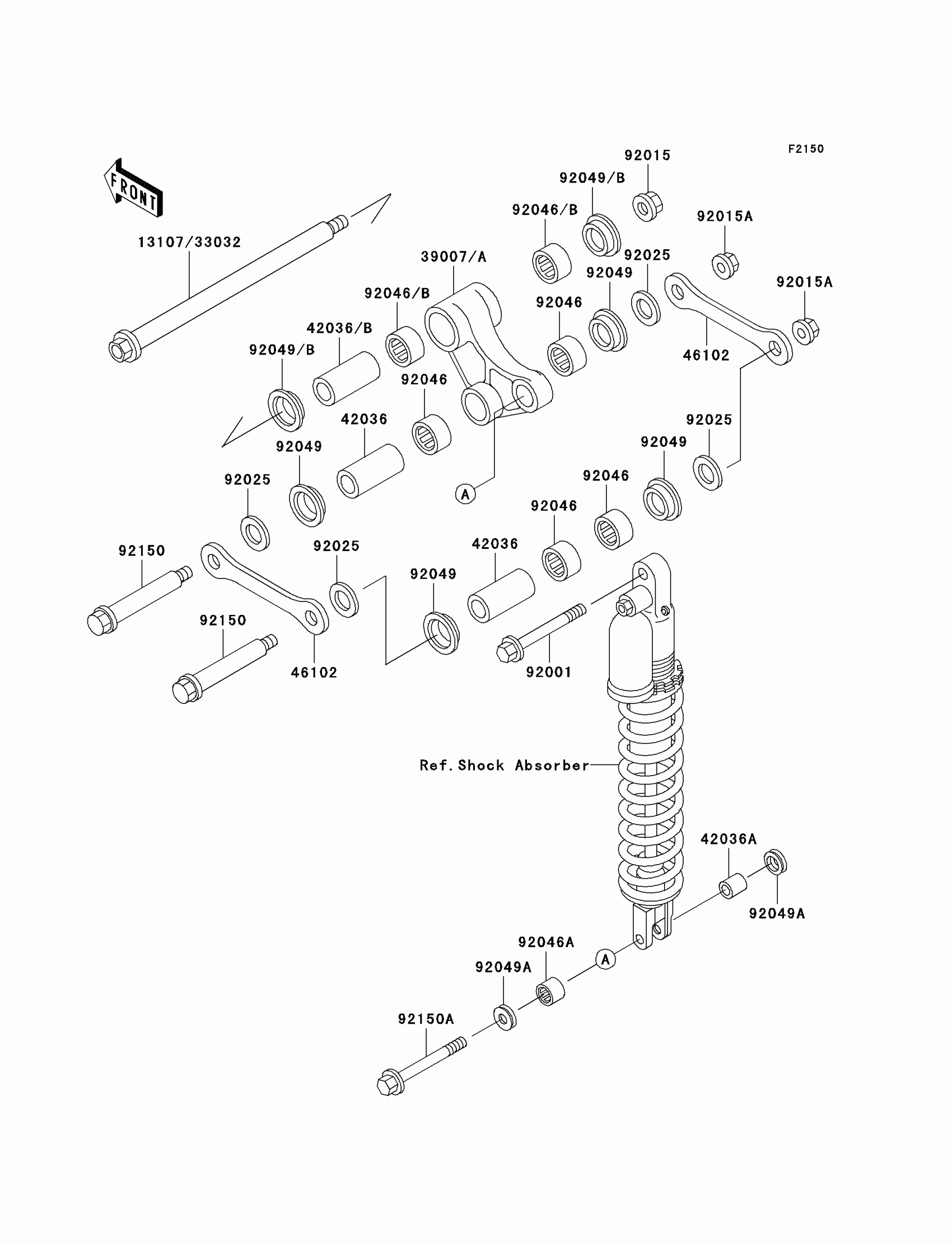

Find the part on the Rear Suspension diagram for your 1996 Kawasaki KLX250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX250R Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,ARM,14MM

13107-1330

1
Out of stock

39007A

ARM-SUSP,UNI TRAK

39007-1234

1

$305.74

In stock

42036

SLEEVE,15X22X57

42036-1245

1
Out of stock

42036A

SLEEVE,10X16X19

42036-1248

1
Out of stock

42036B

SLEEVE,17X25X57

42036-1318

1
Out of stock

46102

ROD,SUSPENSION

46102-1350

1
Out of stock

92001

BOLT,FLANGED,10X44

92001-1499

1
Out of stock

92015

NUT,14MM

92015-1407

1
Out of stock

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92025

SHIM,15.3X27.5X0.6

92025-1135

1
Out of stock

92046

BEARING-NEEDLE,F-2220

92046-1162

1
Out of stock

92046A

BEARING-NEEDLE,16BM2212

92046-1192

1
Out of stock

92046B

BEARING-NEEDLE,BM2520

92046-1228

1
Out of stock

92049

SEAL-OIL,MHA22 28 5.7F

92049-1254

1
Out of stock

92049A

SEAL-OIL

92049-1330

1
Out of stock

92049B

SEAL-OIL,MF025N1

92049-1426

1
Out of stock

92150

BOLT,ROD,12X93

92150-1337

1
Out of stock

92150A

BOLT,FLANGED,10X40

92150-1711

1
Out of stock
