Description

Price

220

SCREW-PAN-CROS

220C0514

$1.33

550

PIN COTTER 1.2X10

550D1210

$1.66

11036

BRACKET-A,LEVER HOLDER

11036-1297

Unavailable

13070

GUIDE,THROTTLE CABLE

13070-1270

Unavailable

13091

HOLDER,CLUTCH LEVER

13091-1131

$47.82

27010A

SWITCH,LIGHTING

27010-1279

$68.35

27010B

SWITCH,ENGINE STOP

27010-1350

$49.50

32099

CASE,THROTTLE,UPP

32099-1143

$35.14

32099A

CASE,THROTTLE,LWR

32099-1144

$35.14

46003

HANDLE,SILVER NO.25

46003-1382-CE

$125.06

46012

HOLDER-HANDLE,UPP

46012-1191

$34.54

46019

GRIP-ASSY,THROTTLE

46019-1078

$38.08

46055

SCREW,CABLE ADJUST,8MM

46055-009

$14.38

46056

NUT,CABLE ADJUST

46056-006

$6.82

46075

GRIP,LH

46075-1107

$29.74

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1163

$54.47

46092

LEVER-GRIP,CLUTCH

46092-1110

$21.27

59441

COVER-HANDLE,LH,L.GREEN

59441-1094-6W

Unavailable

59441A

COVER-HANDLE,RH,L.GREEN

59441-1108-6W

Unavailable

92001

BOLT,FLANGED,6X10

92001-1034

$7.83

92009

SCREW,5X16

92009-1699

$3.59

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$3.57

92019

NUT,LOCK,6MM

92019-008

$3.12

92043

PIN,5X27.5

92043-1434

$8.95

92072

BAND,L=140

92072-1293

$5.26

92150

BOLT

92150-1291

$22.61

92150A

BOLT,FLANGED,8X35

92150-1696

$5.37

92170

CLAMP,BRAKE HOSE

92170-1255

$8.80

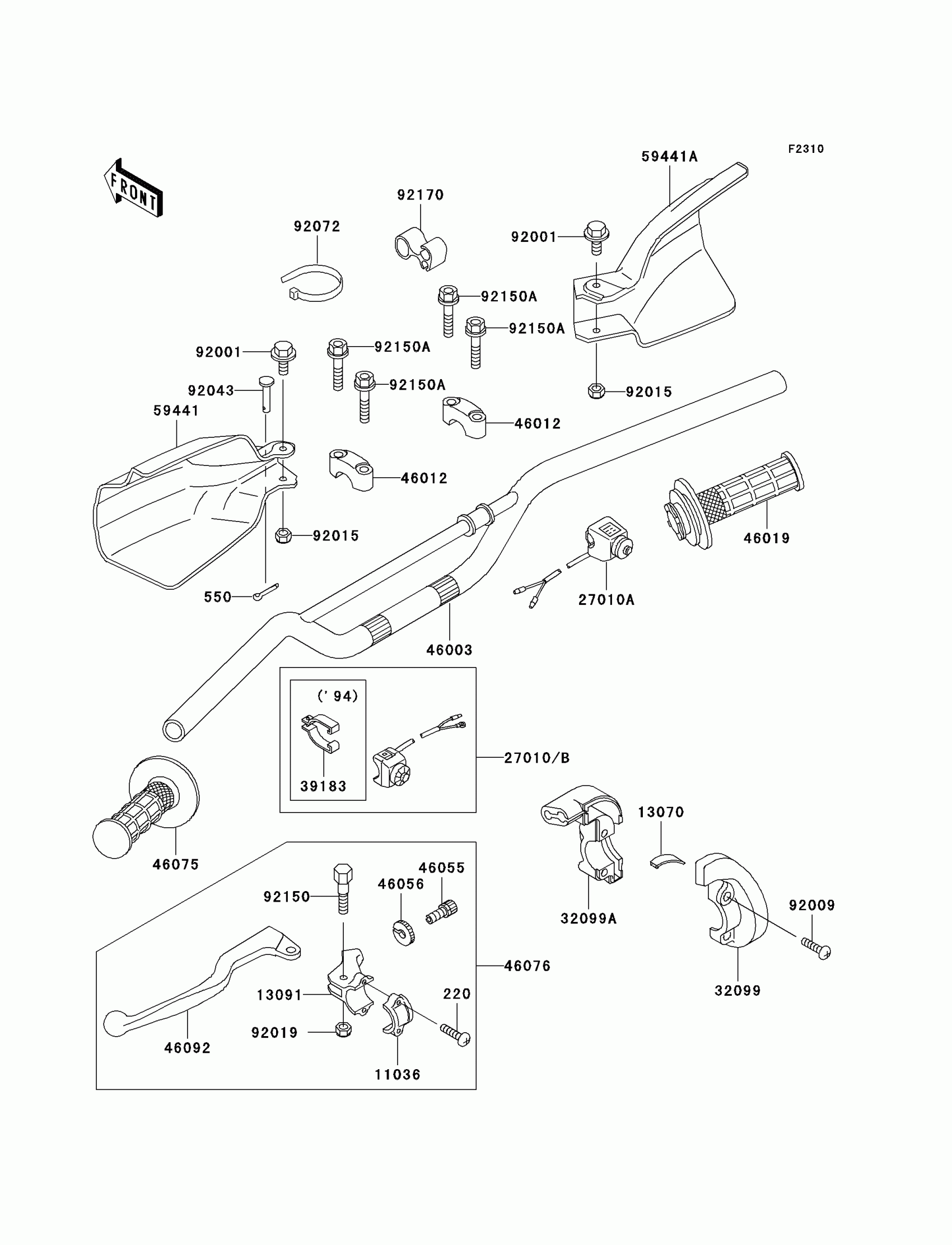

Kawasaki KLX250R Handlebar Diagram

SCREW-PAN-CROS

PIN COTTER 1.2X10

BRACKET-A,LEVER HOLDER

GUIDE,THROTTLE CABLE

HOLDER,CLUTCH LEVER

SWITCH,LIGHTING

SWITCH,ENGINE STOP

CASE,THROTTLE,UPP

CASE,THROTTLE,LWR

HANDLE,SILVER NO.25

HOLDER-HANDLE,UPP

GRIP-ASSY,THROTTLE

SCREW,CABLE ADJUST,8MM

NUT,CABLE ADJUST

GRIP,LH

LEVER-ASSY-GRIP,CLUTCH

LEVER-GRIP,CLUTCH

COVER-HANDLE,LH,L.GREEN

COVER-HANDLE,RH,L.GREEN

BOLT,FLANGED,6X10

SCREW,5X16

NUT,LOCK,FLANGED,6MM

NUT,LOCK,6MM

PIN,5X27.5

BAND,L=140

BOLT

BOLT,FLANGED,8X35

CLAMP,BRAKE HOSE
