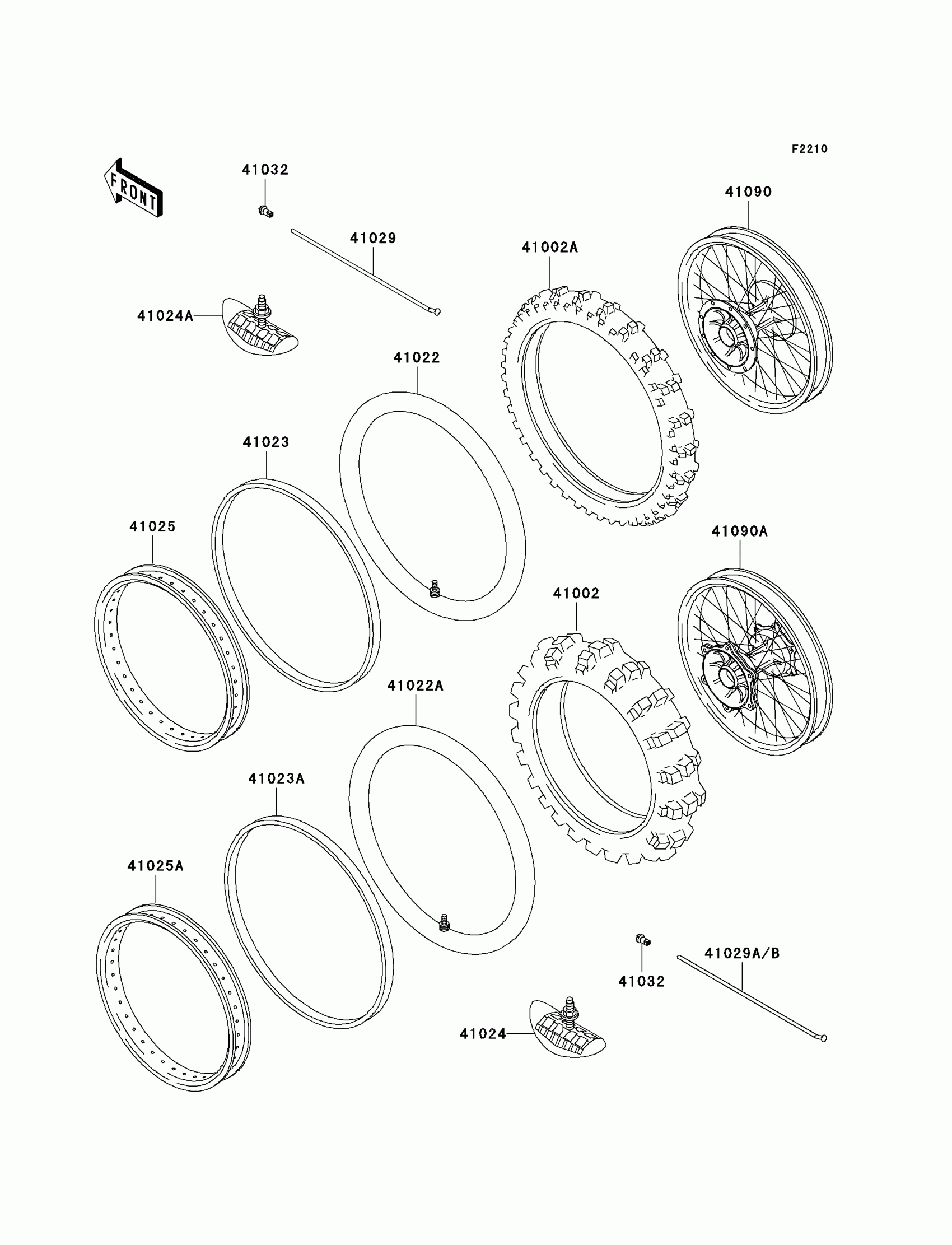

Kawasaki KLX250R Wheels/Tires Diagram

TIRE,RR,100/100-18 59M,K695(D)

41002-1753

Unavailable

TIRE,FR,80/100-21 51M,K490J(D)

41002-1803

Unavailable

TUBE-TIRE,80/100-21(D)

41022-1118

$51.02

TUBE-TIRE,100/100-18(D)

41022-1119

$51.02

BAND-RIM,80/100-21(D)

41023-1069

Unavailable

BAND-RIM,100/100-18(D)

41023-1070

$10.54

STOPPER-RIM,2.15-M(DUNLOP)

41024-009

$60.31

STOPPER-RIM,1.60-M(DUNLOP)

41024-010

$52.75

RIM,FR,1.60X21

41025-1257

$404.15

RIM,RR,2.15X18

41025-1275

$518.82

SPOKE-INNER,FR,228MMX165D

41029-1206

$8.29

SPOKE-INNER,RR,RH,193MMX165D

41029-1217

$4.04

SPOKE-INNER,RR,LH,189MMX160D

41029-1223

$4.68

NIPPLE-SPOKE

41032-1061

$3.48

WHEEL-SUB ASSY,FR

41090-1090

$980.56

WHEEL-SUB ASSY,RR

41090-1095

$1,012.69
