1996 Kawasaki KLX250R Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1996 Kawasaki KLX250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

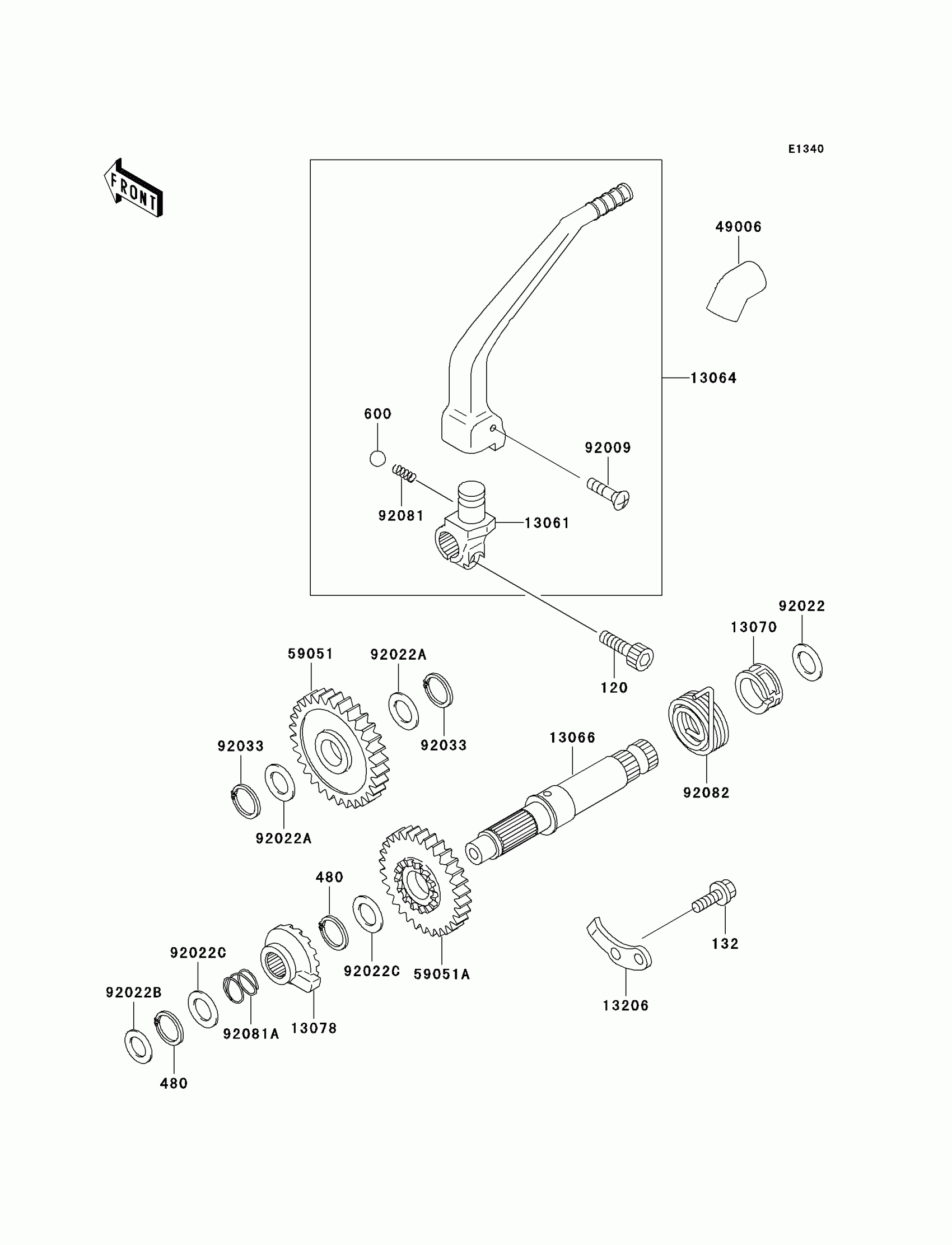

1996 Kawasaki KLX250R Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X25

120S0825

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

480

CIRCLIP-TYPE-C,16MM

480J1600

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

13061

BOSS,KICK PEDAL

13061-1397

1
Out of stock

13064

LEVER-ASSY-KICK,PEDAL

13064-1172

1
Out of stock

13066

SHAFT-KICK

13066-1088

1
Out of stock

13070

GUIDE,KICK SPRING

13070-011

1
Out of stock

13078

RATCHET

13078-1052

1
Out of stock

13206

GUIDE-KICK

13206-1062

1
Out of stock

49006

BOOT

49006-1287

1
Out of stock

59051

GEAR-SPUR,IDLE,28T

59051-1120

1
Out of stock

59051A

GEAR-SPUR,KICK,29T

59051-1131

1
Out of stock

92009

SCREW,6X27

92009-1607

1
Out of stock

92022

WASHER,18.5X23X1.2

92022-118

1
Out of stock

92022A

WASHER,17.3X25X0.5

92022-1614

1
Out of stock

92022B

WASHER,12.3X20X0.5

92022-269

1
Out of stock

92022C

WASHER,16.8X22X0.5

92022-315

1
Out of stock

92033

RING-SNAP

92033-032

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1
Out of stock

92081A

SPRING,RATCHET

92081-122

1
Out of stock

92082

SPRING,KICKSTARTER

92082-003

1
Out of stock
