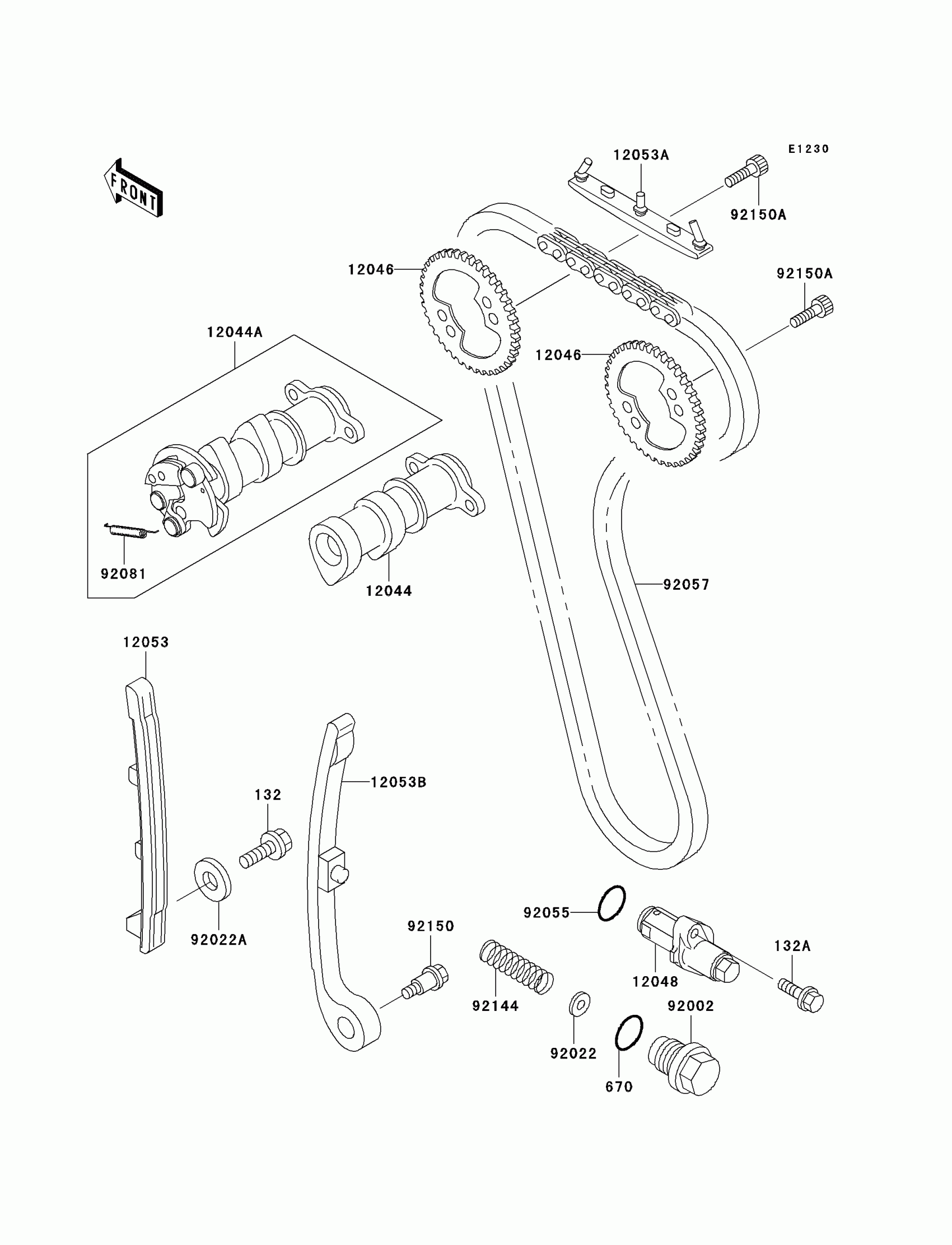

Kawasaki KLX250R Camshaft(s)/Tensioner Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X35

132Y0635

Unavailable

670

O RING,18MM

670B2018

$1.08

12044

CAMSHAFT-VALVE,INTAKE

12044-1327

$273.07

12044A

CAMSHAFT-VALVE,EXHAUST

12044-1364

Unavailable

12046

SPROCKET,CAMSHAFT,32T

12046-1141

Unavailable

12048

TENSIONER-ASSY

12048-1128

Unavailable

12053

GUIDE-CHAIN,FR

12053-1315

$52.84

12053A

GUIDE-CHAIN,UPP

12053-1317

$10.19

12053B

GUIDE-CHAIN

12053-1349

Unavailable

92002

BOLT,TENSIONER

92002-1621

$24.46

92022

WASHER,8.5X13.5X2

92022-1108

$3.85

92022A

WASHER,7X27X1.6

92022-227

$3.57

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,92RH2010

92057-1416

Unavailable

92081

SPRING,DECOMPRESSOR

92081-1626

Unavailable

92144

SPRING,TENSIONER

92144-1769

$7.95

92150

BOLT,L=28

92150-1644

Unavailable

92150A

BOLT,SOCKET,6X10

92150-1650

$3.85
