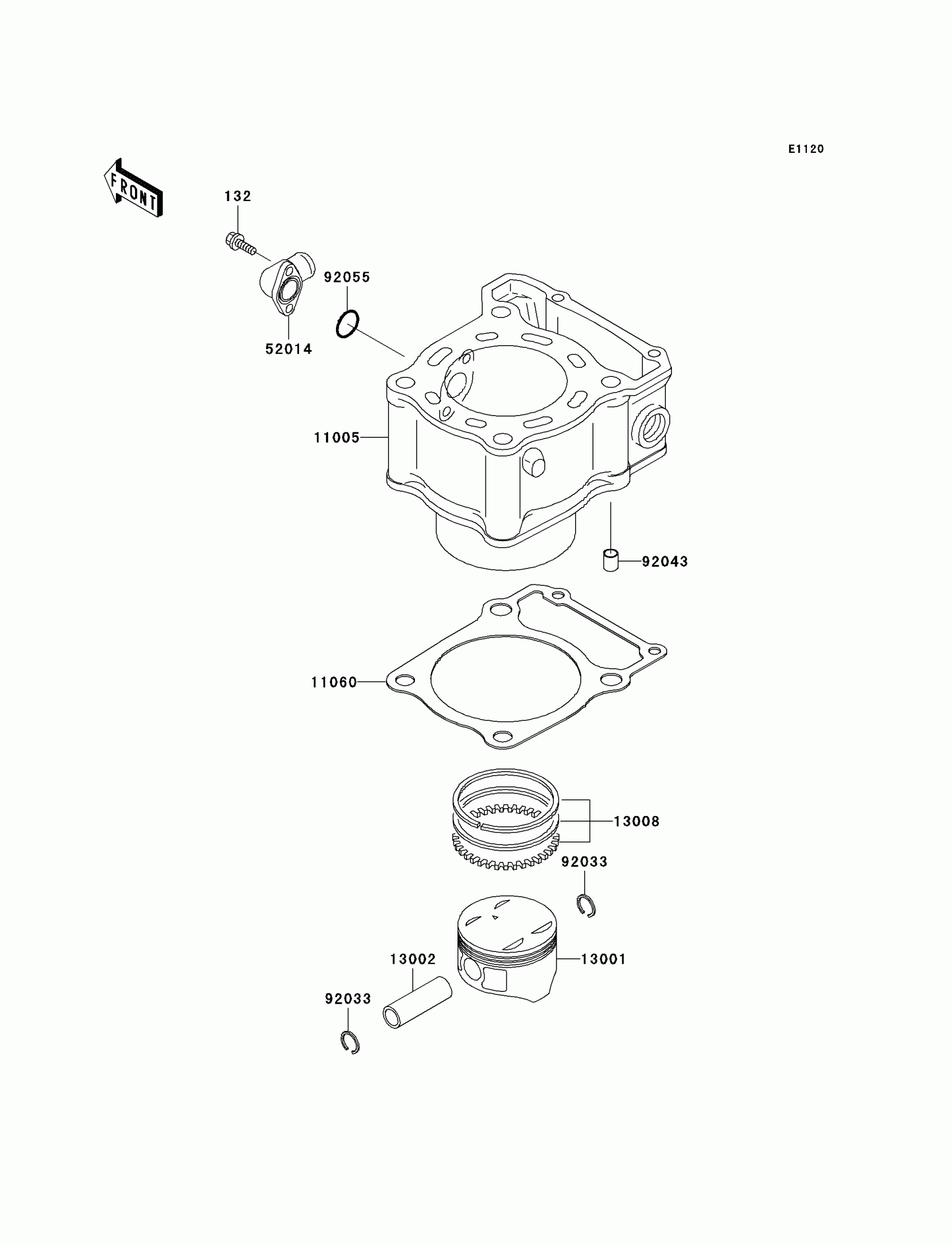

Kawasaki KLX250R Cylinder/Piston(s) Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X14

132Y0614

Unavailable

11005

CYLINDER-ENGINE

11005-1723

Unavailable

11060

GASKET,CYLINDER BASE

11060-1319

$12.63

13001

PISTON-ENGINE

13001-1433

$134.11

13002

PIN-PISTON

13002-1073

$21.68

13008

RING-SET-PISTON

13008-1149

$67.48

52014

ELBOW

52014-1065

$33.06

92033

RING-SNAP

92033-1054

$1.76

92043

PIN,10.1X12X14

92043-4009

$4.67

92055

RING-O,19.5X1.5

92055-055

$3.29
