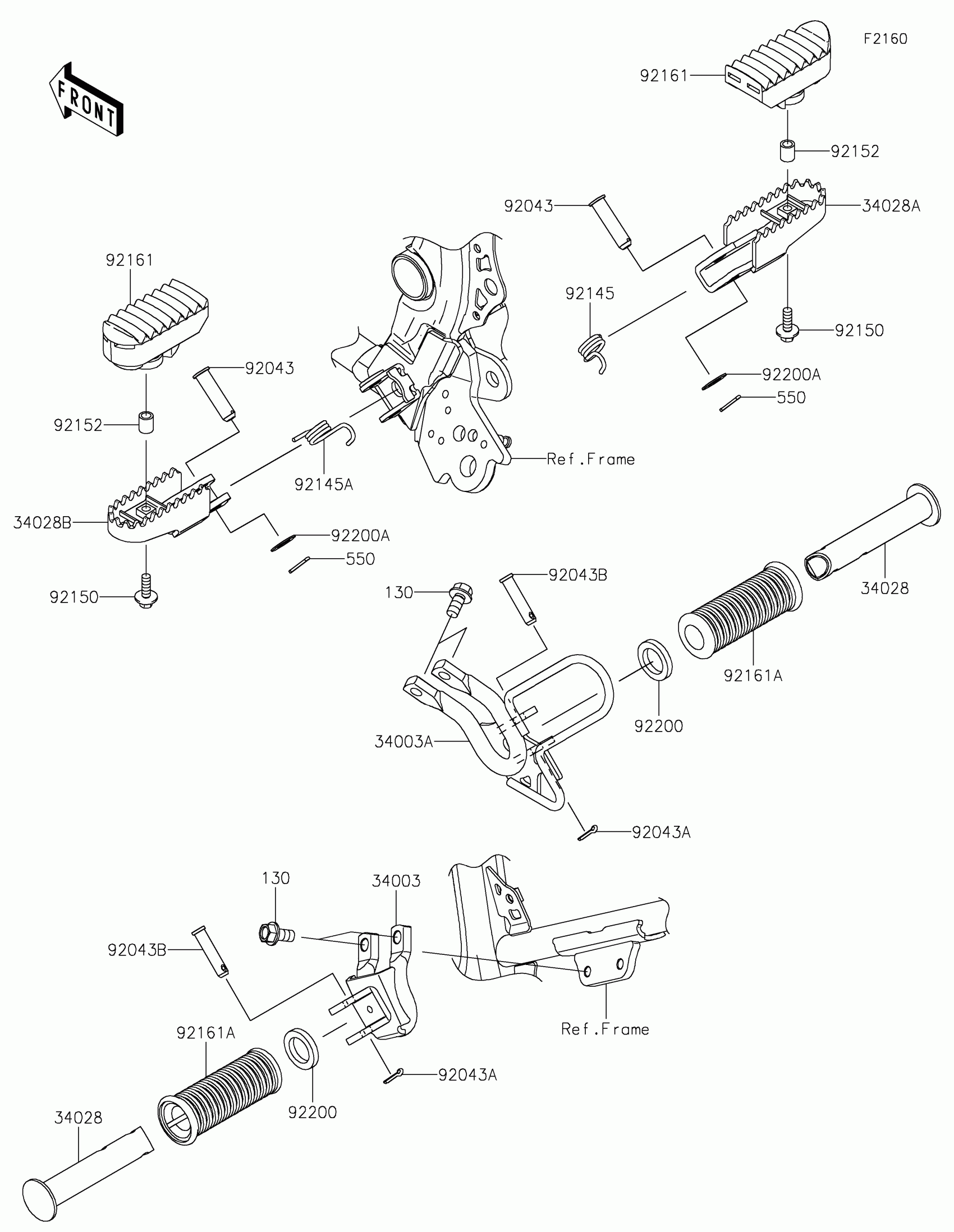

Find the part on the Footrests diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,LH,F.S.BLACK

34003-0183-18R

1

$36.23

In stock

34003A

HOLDER-STEP,RH,F.S.BLACK

34003-0206-18R

1

$52.11

In stock

34028

STEP,RR

34028-0007

1

$8.25

In stock

34028A

STEP,FR,RH,P.SILVER

34028-0112-458

1

$31.45

In stock

34028B

STEP,FR,LH,P.SILVER

34028-0115-458

1

$31.45

In stock

92043

PIN,10X35

92043-0744

1

$5.24

In stock

92043A

PIN,COTTER,2.5X18

92043-0771

1

$0.69

In stock

92043B

PIN

92043-1714

1

$1.56

In stock

92145

SPRING,STEP,RH

92145-2300

1

$9.49

In stock

92145A

SPRING,STEP,LH

92145-2301

1

$9.49

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92152

COLLAR

92152-0933

1

$2.34

In stock

92161

DAMPER,STEP

92161-0848

1

$12.02

In stock

92161A

DAMPER,REAR STEP

92161-0866

1

$12.85

In stock

92200

WASHER,20X30X4.5

92200-0869

1
Out of stock

92200A

WASHER,10.5X20X1.0

92200-0870

1
Out of stock

130

BOLT-FLANGED,8X16

130CA0816

1

$2.05

In stock

550

PIN-COTTER,2.0X18

550AA2018

1

$2.08

In stock
