2024 Kawasaki KLX230R S Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

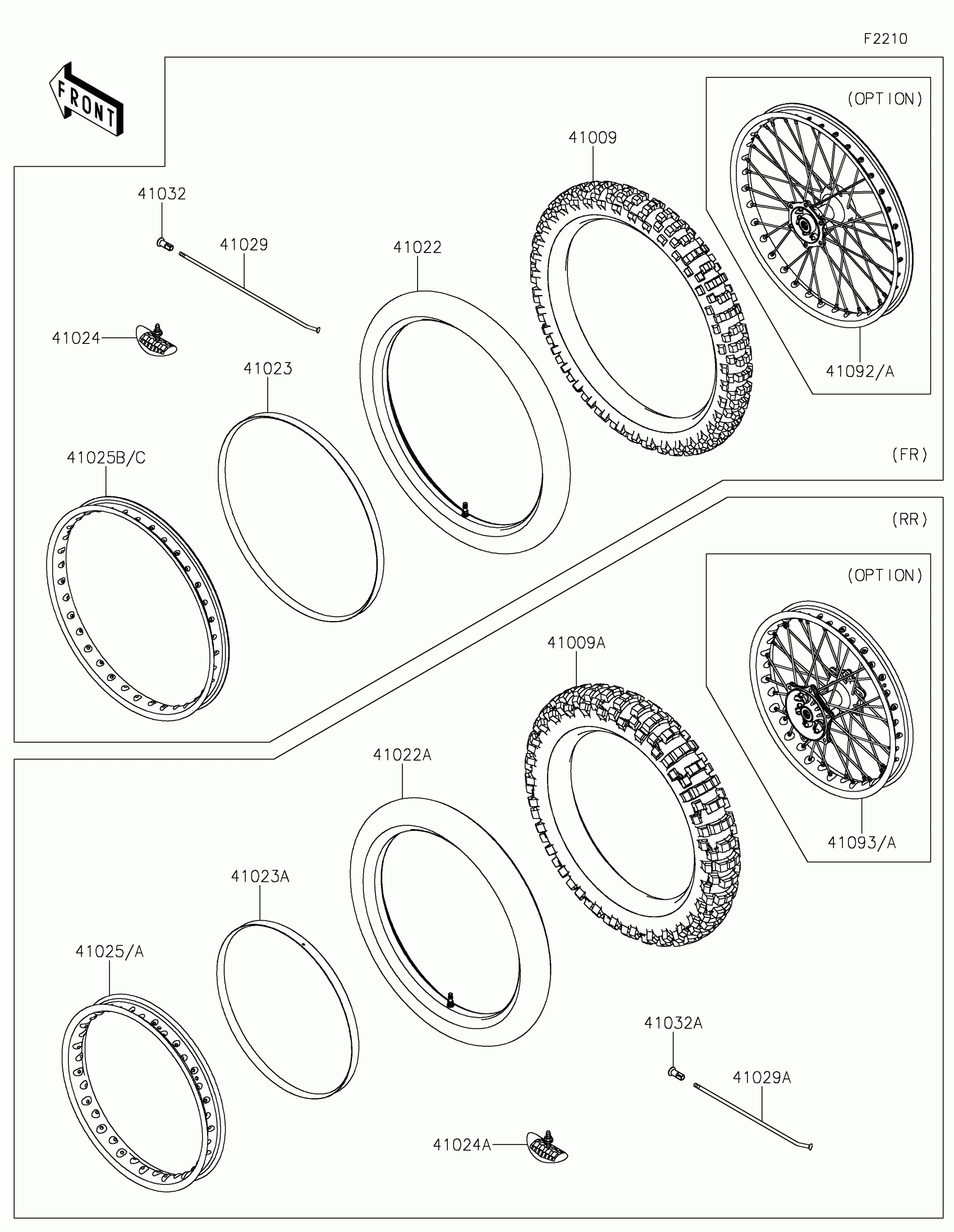

2024 Kawasaki KLX230R S Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41009

TIRE,FR,80/100-21 51M,D952F

41009-0813

1
Out of stock

41009A

TIRE,RR,100/100-18 59M,D952

41009-0814

1
Out of stock

41022

TUBE-TIRE

41022-0110

1
Out of stock

41022A

TUBE-TIRE

41022-0111

1
Out of stock

41023

BAND-RIM,2.75-21

41023-0028

1
Out of stock

41023A

BAND-RIM,4.10-18

41023-0029

1
Out of stock

41024

STOPPER-RIM,1.60-M(DUNLOP)

41024-010

1
Out of stock

41024A

STOPPER-RIM,1.85-M(DUNLOP)

41024-011

1
Out of stock

41025

RIM,RR,18X1.85,SILVER

41025-0399-WA

1
Out of stock

41025A

RIM,RR,18X1.85,BLACK

41025-0399-WC

1
Out of stock

41025B

RIM,FR,21X1.60,SILVER

41025-0400-WA

1
Out of stock

41025C

RIM,FR,21X1.60,BLACK

41025-0400-WC

1
Out of stock

41029

SPOKE-INNER,225.5MMX162D

41029-0105

1
Out of stock

41029A

SPOKE-INNER,186.5MMX162D

41029-0106

1
Out of stock

41032

NIPPLE-SPOKE

41032-0010

1

$2.92

In stock

41032A

NIPPLE-SPOKE

41032-0013

1

$2.66

In stock

41092

WHEEL-SUB ASSY,FR,SILVER

41092-0041-WA

1
Out of stock

41092A

WHEEL-SUB ASSY,FR,BLACK

41092-0041-WC

1
Out of stock

41093

WHEEL-SUB ASSY,RR,SILVER

41093-0025-WA

1
Out of stock

41093A

WHEEL-SUB ASSY,RR,BLACK

41093-0025-WC

1
Out of stock
