2024 Kawasaki KLX230R S Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

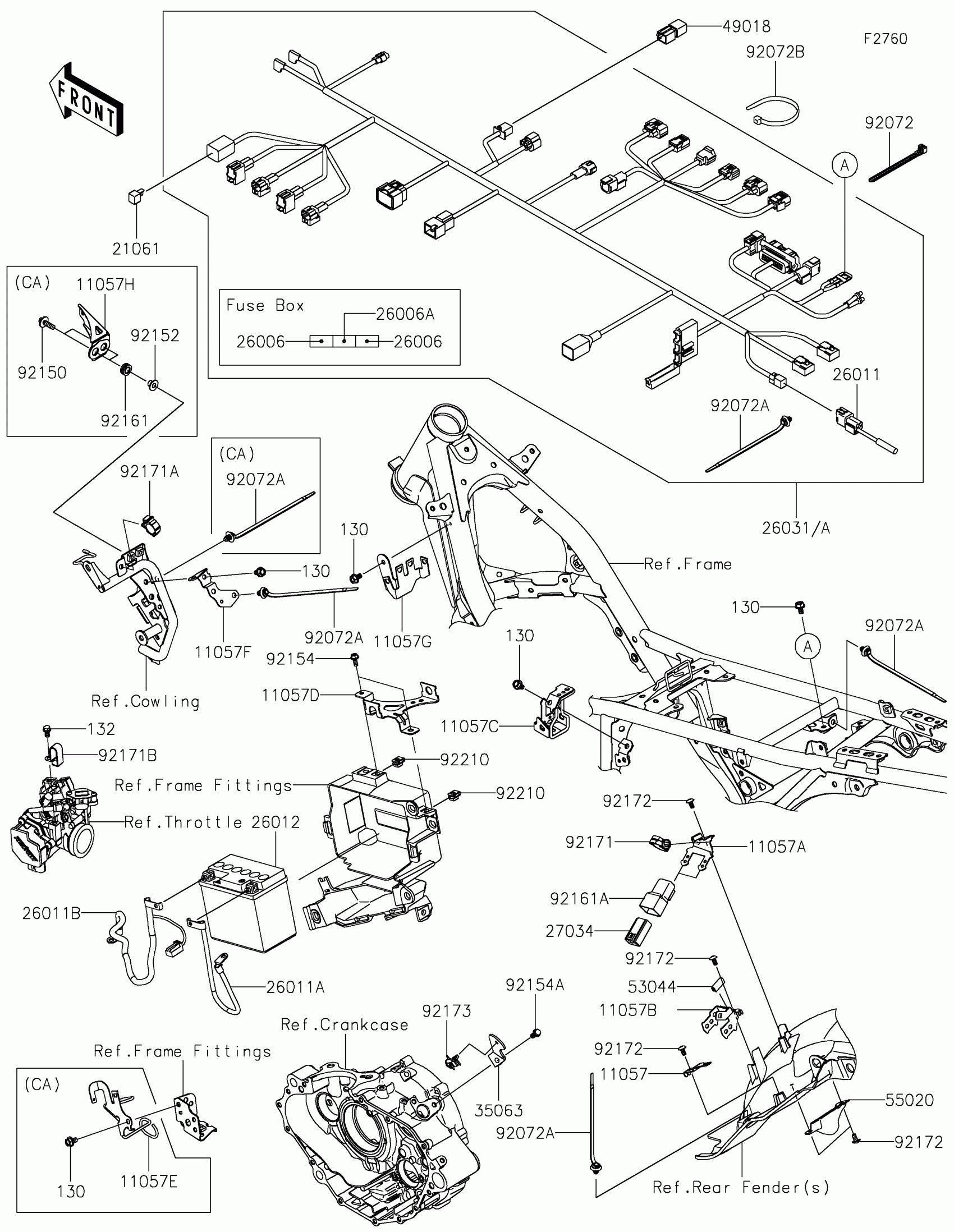

2024 Kawasaki KLX230R S Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,DIAG

11057-2018

1
Out of stock

11057A

BRACKET,RELAY-ASSY

11057-2019

1
Out of stock

11057B

BRACKET,SWITCH

11057-2020

1
Out of stock

11057C

BRACKET,VEHICLE DOWN SENSOR

11057-2021

1
Out of stock

11057D

BRACKET,ECU

11057-2022

1
Out of stock

11057F

BRACKET,ENGINE START SWITCH

11057-2520

1
Out of stock

11057G

BRACKET

11057-2539

1
Out of stock

21061

RECTIFIER

21061-1003

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,DIAG

26011-0858

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-1869

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-1870

1
Out of stock

26012

BATTERY,YTX5L-BS,12V 4AH

26012-0905

1
Out of stock

26031

HARNESS,MAIN

26031-2807

1
Out of stock

27034

RELAY

27034-0012

1
Out of stock

35063

STAY

35063-1476

1
Out of stock

49018

DIODE

49018-0005

1
Out of stock

53044

TRIM,9X6.5X20

53044-0596

1

$3.68

In stock

55020

GUARD,OXYGEN SENSOR

55020-2254

1
Out of stock

92072

BAND,L=140

92072-1293

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92072B

BAND,L=152

92072-3874

1
Out of stock

92154

BOLT,FLANGED,5X12

92154-1215

1
Out of stock

92154A

BOLT,FLANGED,6X12

92154-1776

1
Out of stock

92161A

DAMPER

92161-2290

1
Out of stock

92171

CLAMP,20MM DIA.

92171-0069

1

$2.29

In stock

92171A

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92171B

CLAMP

92171-0911

1
Out of stock

92172

SCREW,CROS,5X10

92172-1255

1
Out of stock

92173

CLAMP

92173-1163

1
Out of stock

92210

NUT,PLATE,5MM

92210-0262

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

132

1

$2.05

In stock
