2024 Kawasaki KLX230R S Rear Hub Diagram

← All diagrams

Find the part on the Rear Hub diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

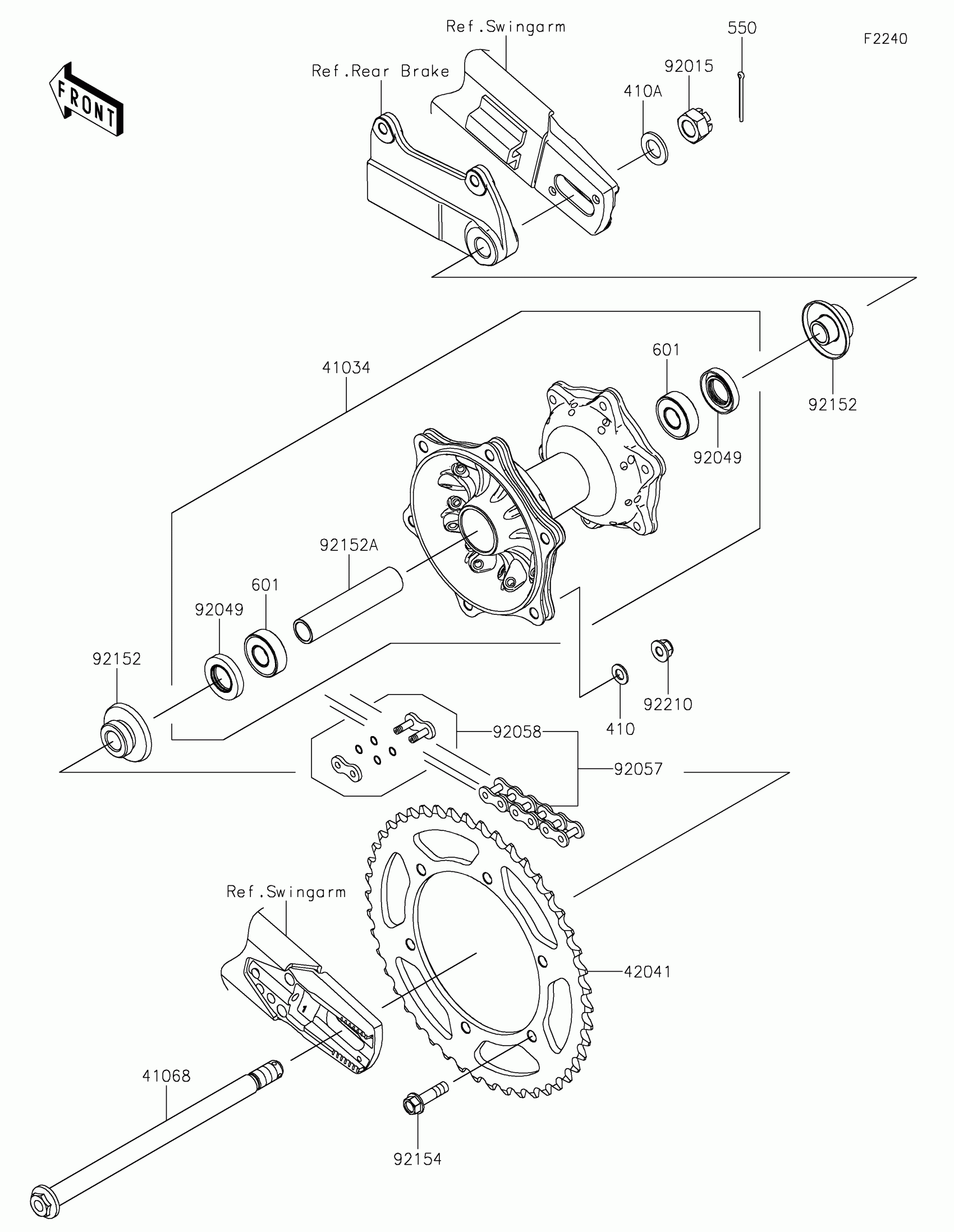

2024 Kawasaki KLX230R S Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,RR

41034-0612

1

$524.99

In stock

41068

AXLE,RR,15X244

41068-0647

1

$94.29

In stock

42041

SPROCKET-HUB,46T

42041-0171

1

$84.46

In stock

92015

NUT,CASTLE,14MM

92015-1765

1

$7.80

In stock

92049

SEAL-OIL

92049-0114

1
Out of stock

92057

1

$356.50

In stock

92058

JOINT-CHAIN

92058-0069

1

$11.34

In stock

92152

COLLAR

92152-2544

1

$35.75

In stock

92152A

COLLAR,15.2X20X96.2

92152-2546

1

$23.44

In stock

92154

BOLT,FLANGED,8X30

92154-3918

1

$2.29

In stock

92210

NUT,8MM

92210-0570

1
Out of stock

410

1

$0.84

In stock

410A

1

$1.81

In stock

550

PIN-COTTER,3.0X35

550AA3035

1

$2.29

In stock

601

BEARING-BALL

601B6202UU

1

$20.38

In stock
