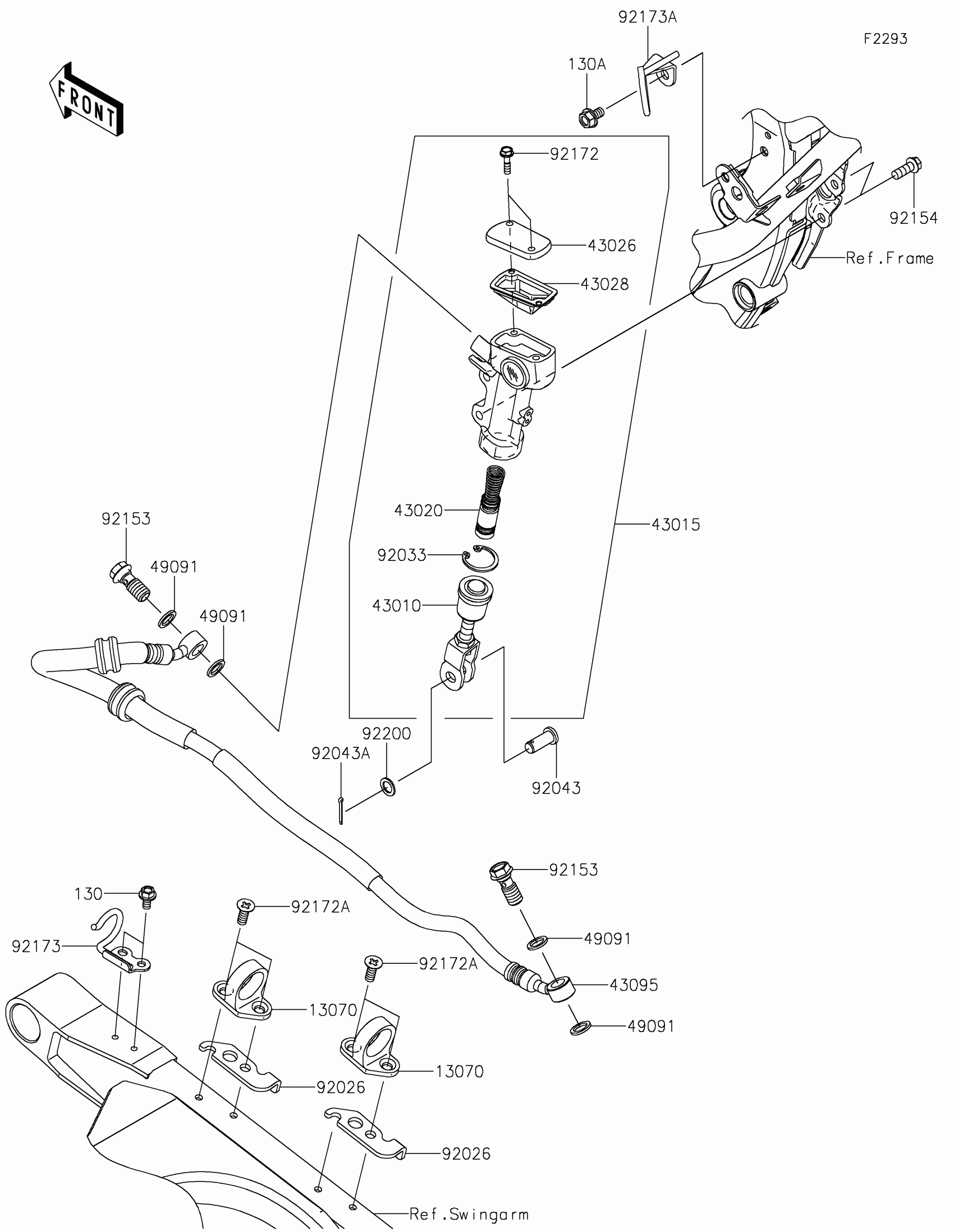

Kawasaki KLX230R S Rear Master Cylinder Diagram

Description

Price

13070

GUIDE,HOSE

13070-1144

$6.13

43010

ROD-ASSY-BRAKE

43010-0025

$55.97

43015

CYLINDER-ASSY-MASTER,RR

43015-0724

$285.59

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-0023

$15.32

43028

DIAPHRAGM

43028-1092

$16.80

43095

HOSE-BRAKE,M/CYLINDER-CALIPER

43095-1630

$75.57

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92026

SPACER

92026-0879

$5.08

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92043

92043-0004

$8.49

92043A

PIN,COTTER,2.0X15

92043-0766

$0.95

92153

BOLT,OIL,L=23

92153-0029

$1.44

92154

BOLT,FLANGED,6X16

92154-0460

$1.35

92172

SCREW

92172-1064

$1.54

92172A

SCREW,6X16

92172-1198

$1.66

92173

CLAMP,BRAKE HOSE,SWING ARM

92173-1976

$4.08

92173A

CLAMP,BRAKE HOSE,SWING ARM

92173-1978

$4.31

92200

WASHER,8.5X13X1

92200-1980

$3.53

130

BOLT-FLANGED,5X10

130BA0510

$1.27

130A

BOLT-FLANGED,6X10

130BA0610

$0.97
