2024 Kawasaki KLX230R S Front Master Cylinder Diagram

← All diagrams

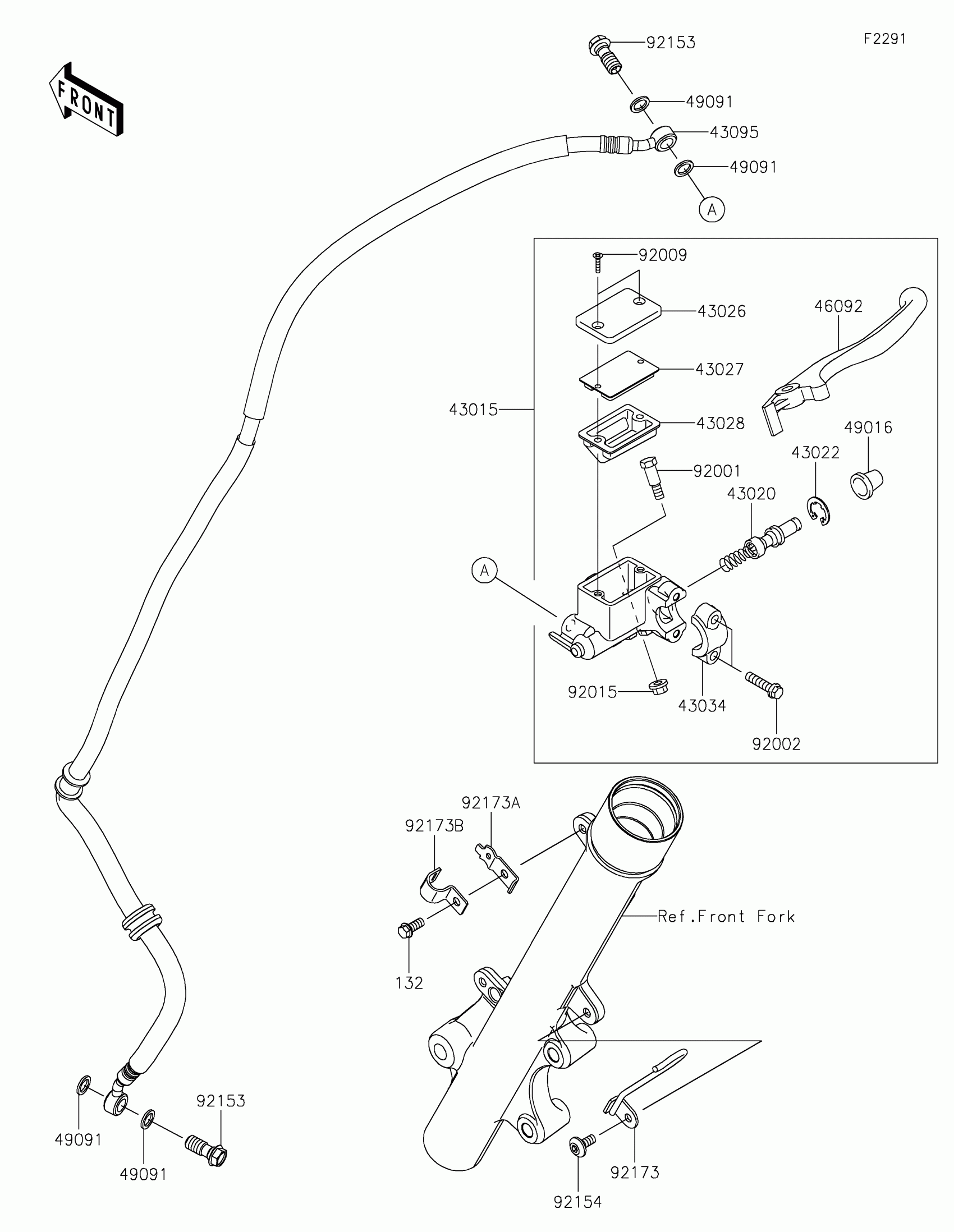

Find the part on the Front Master Cylinder diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki KLX230R S Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43015

CYLINDER-ASSY-MASTER,FR

43015-0726

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0036

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-0004

1
Out of stock

43026

CAP-BRAKE

43026-1082

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1057

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

43095

HOSE-BRAKE,M/CYLINDER-CALIPER

43095-1733

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-0044

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92001

BOLT,FRONT BRAKE LEVER

92001-1728

1
Out of stock

92002

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92153

BOLT,OIL,L=23

92153-0029

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-3763

1
Out of stock

92173

CLAMP,BRAKE HOSE,CALIPER

92173-1972

1
Out of stock

92173A

CLAMP,BRAKE HOSE,FORK

92173-1974

1
Out of stock

92173B

CLAMP,BRAKE HOSE,FORK

92173-1975

1
Out of stock

132

BOLT-FLANGED-SMALL,6X14

132BA0614

1
Out of stock
