2024 Kawasaki KLX230R S Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

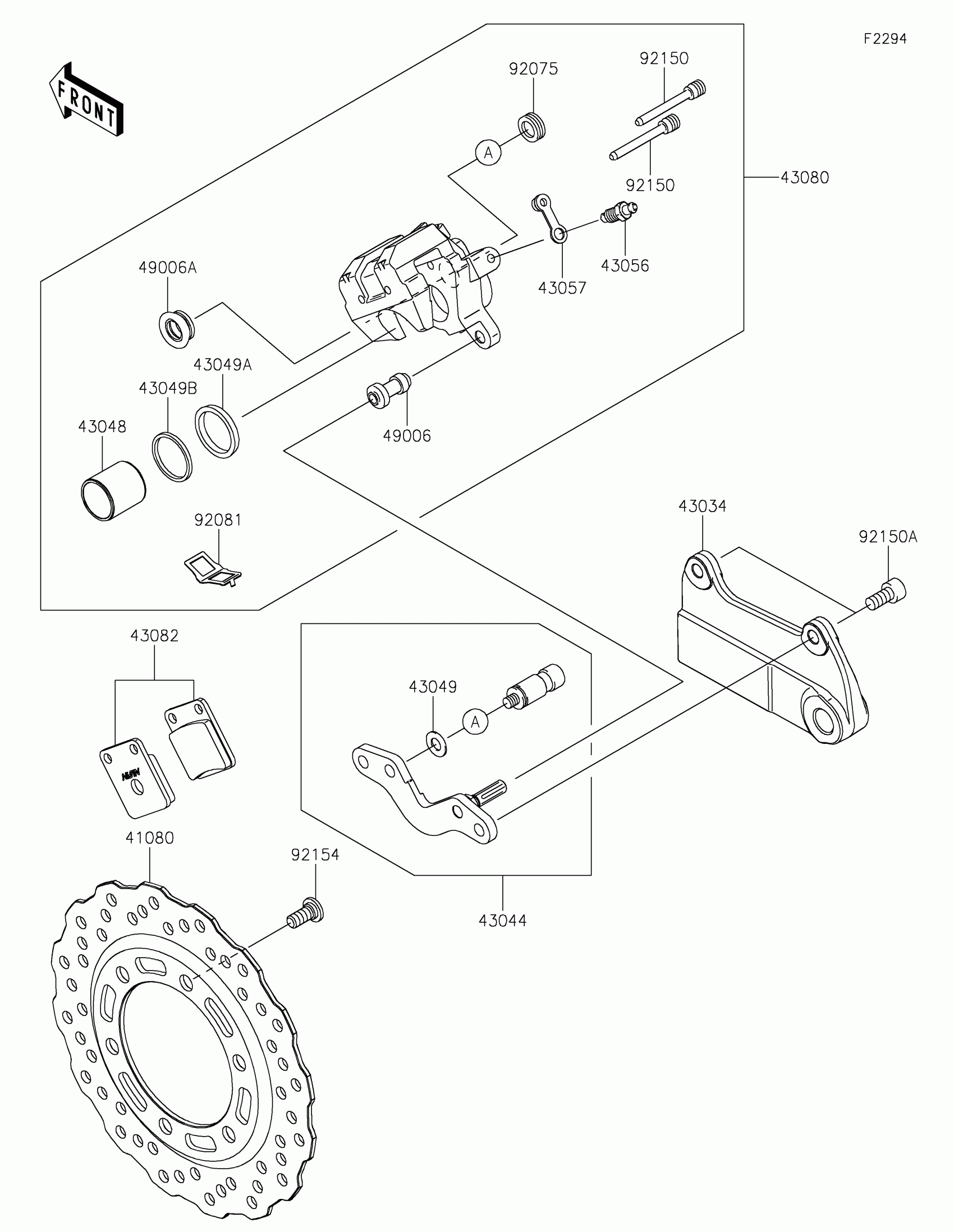

2024 Kawasaki KLX230R S Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,RR

41080-0702

1
Out of stock

43034

HOLDER-BRAKE,RR

43034-0125

1
Out of stock

43044

HOLDER-COMP-CALIPER,RR

43044-1076

1
Out of stock

43048

PISTON-CALIPER

43048-1090

1
Out of stock

43049

PACKING

43049-1025

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049B

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR

43080-0078

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0159

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1089

1
Out of stock

92075

DAMPER

92075-1414

1
Out of stock

92081

SPRING,PAD

92081-1502

1
Out of stock

92150

BOLT

92150-1144

1
Out of stock

92150A

BOLT,SOCKET,8X16

92150-1840

1
Out of stock

92154

BOLT,SOCKET,8X18

92154-3951

1
Out of stock
