2005 Kawasaki KLX125L Ignition System Diagram

← All diagrams

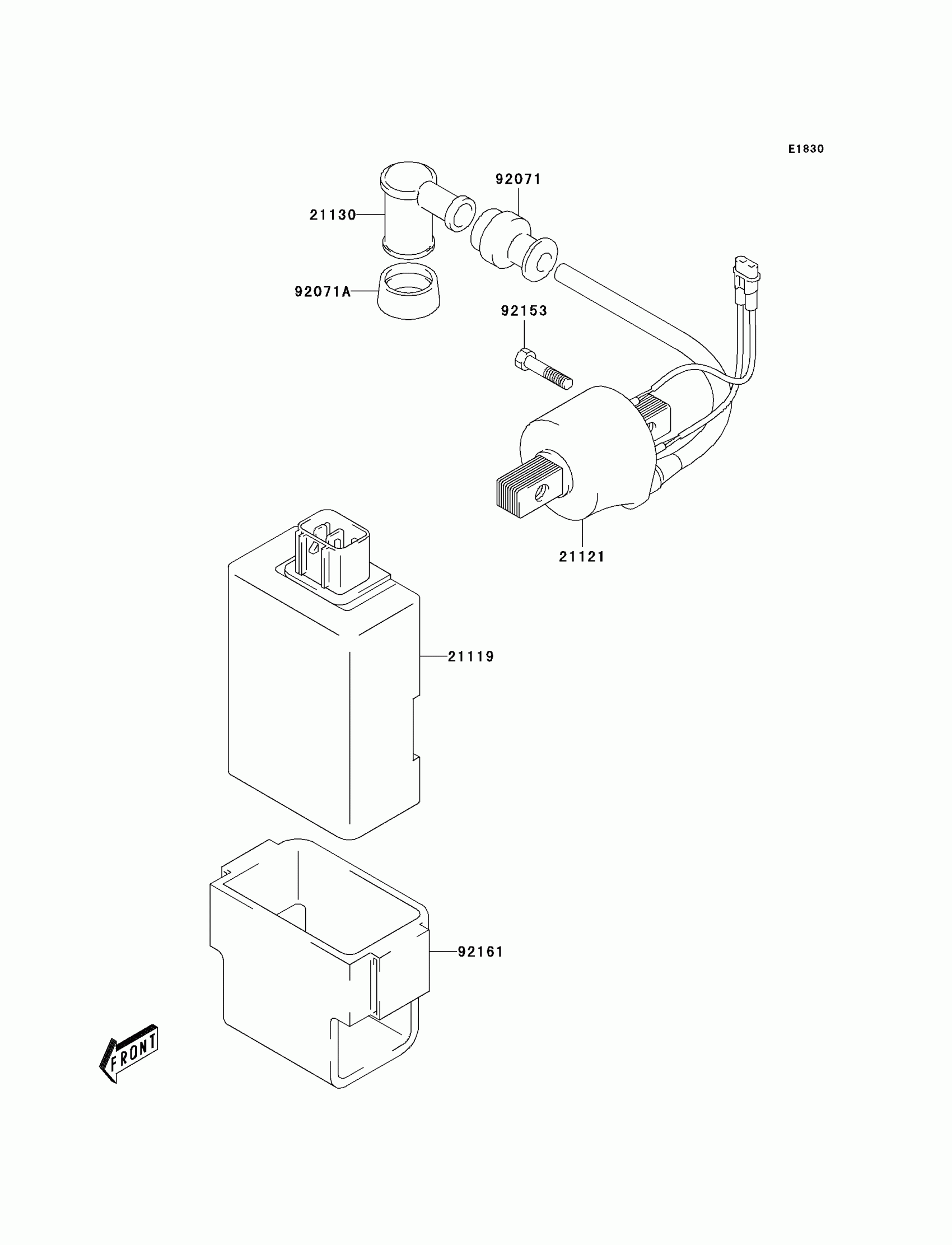

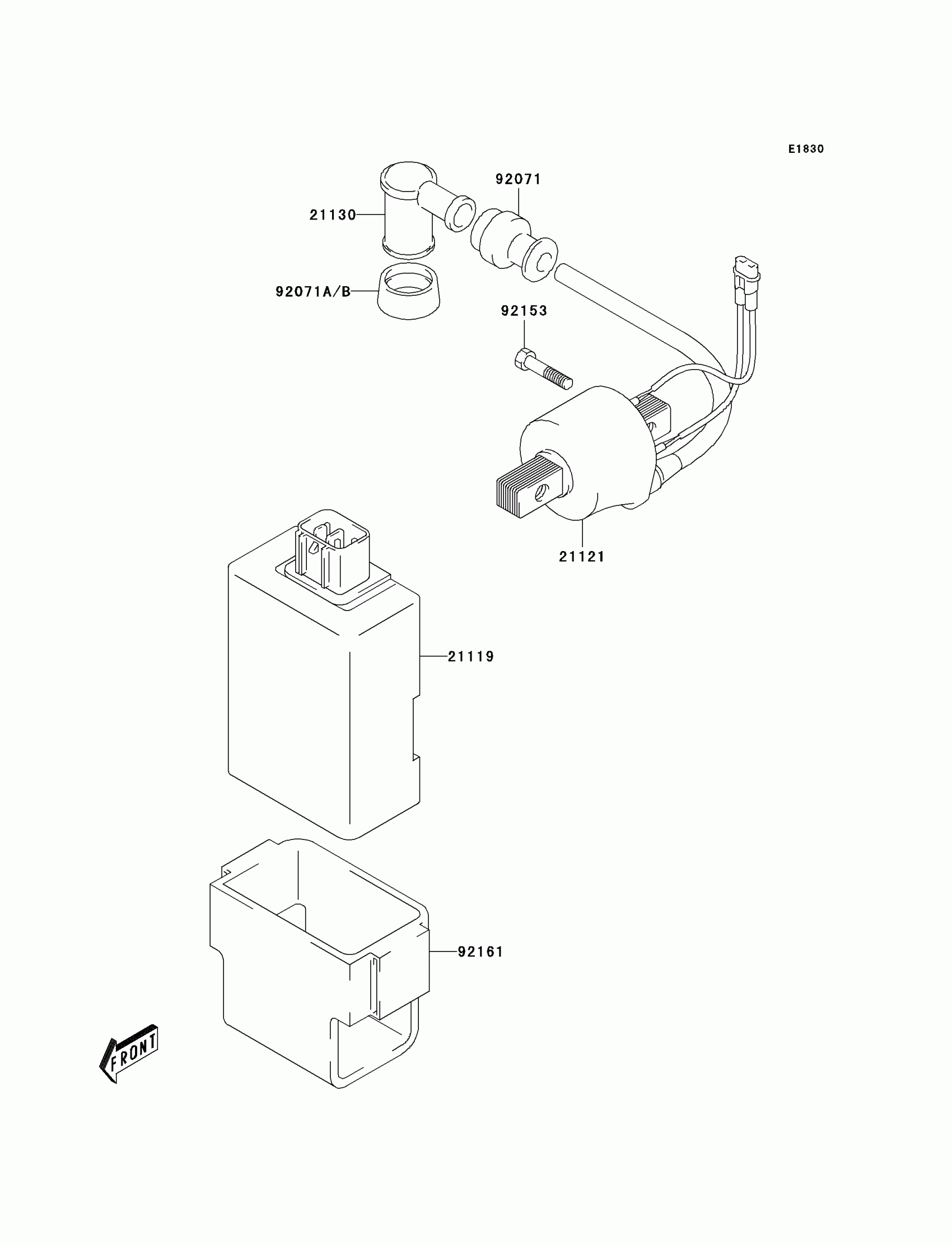

Find the part on the Ignition System diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX125L Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-S003

1

$331.53

In stock

21121

COIL-IGNITION

21121-S003

1

$106.12

In stock

21130

CAP-SPARK PLUG

21130-S003

1

$14.37

In stock

92071

GROMMET,HIGHTENSION

92071-S004

1

$4.81

In stock

92071B

GROMMET,SPARK PLUG CAP

92071-S013

1
Out of stock

92153

BOLT

92153-S002

1

$1.64

In stock

92161

DAMPER

92161-S058

1

$10.10

In stock
← Generator Frame →
