2005 Kawasaki KLX125L Frame Diagram

← All diagrams

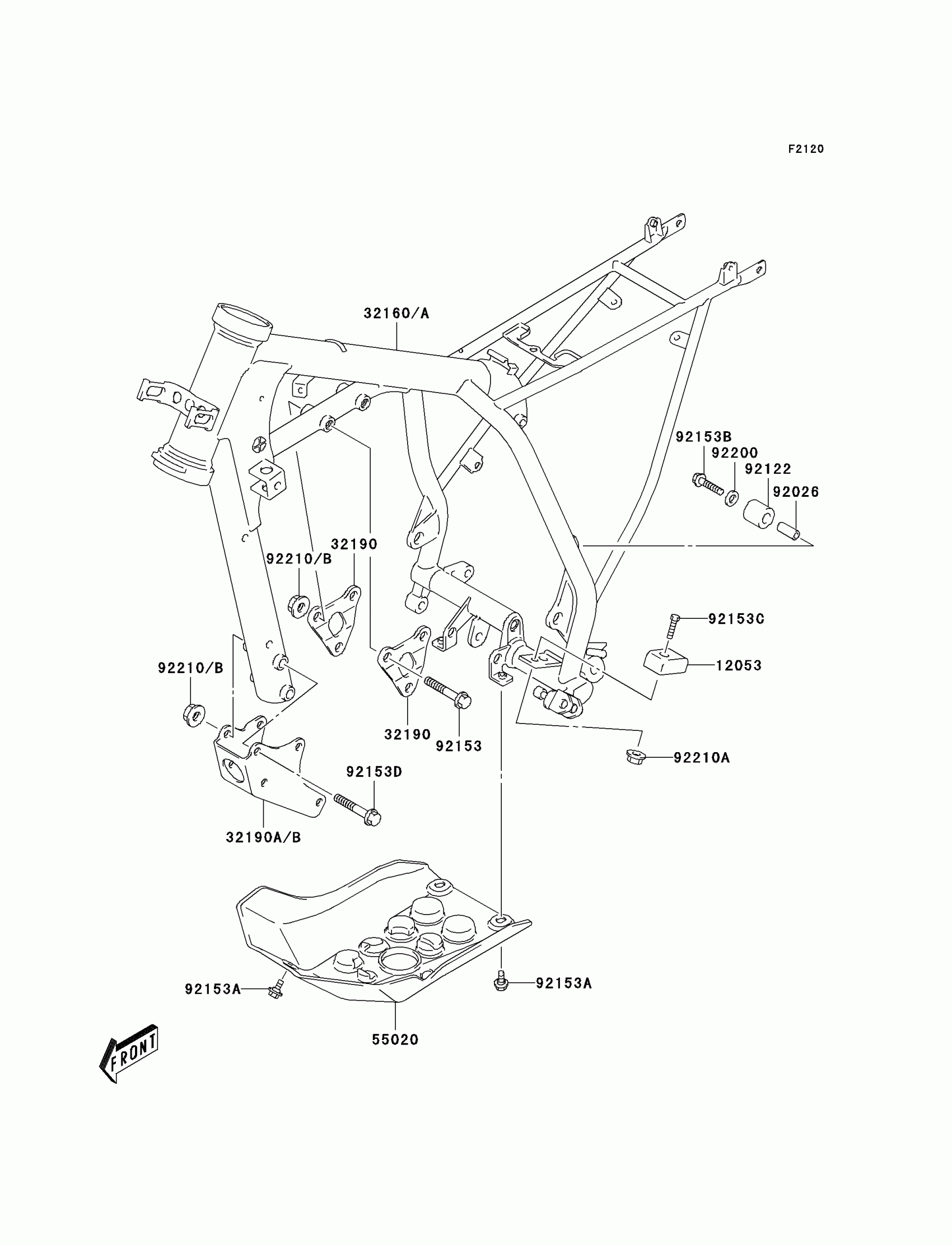

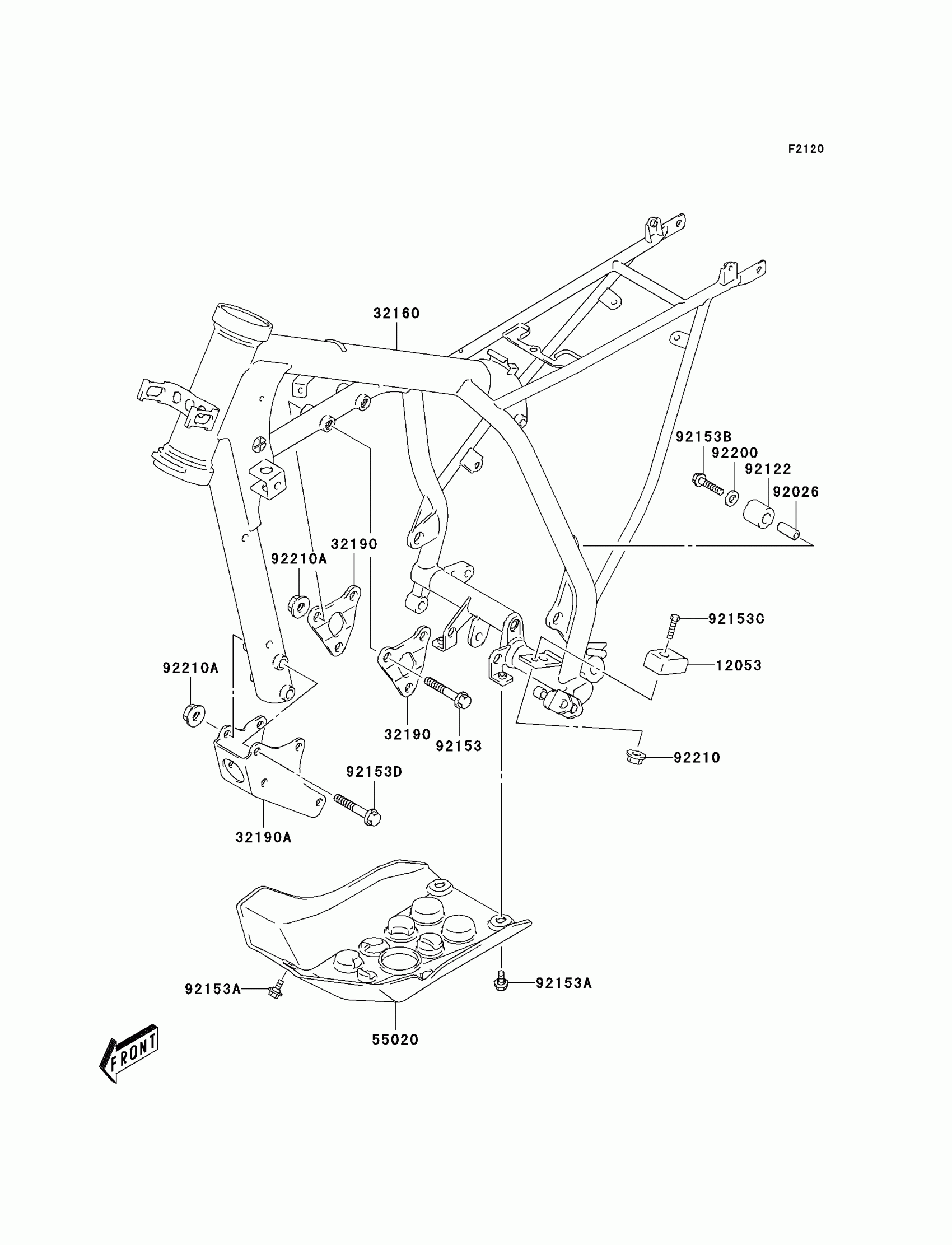

Find the part on the Frame diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX125L Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN

12053-S012

1

$24.27

In stock

32160A

FRAME-COMP,P.SILVER

32160-S003-909

1

$1,212.32

In stock

32190

BRACKET-ENGINE

32190-S003

1
Out of stock

32190B

BRACKET-ENGINE,P.SILVER

32190-S005-909

1

$34.03

In stock

55020

GUARD,ENGINE

55020-S004

1

$46.52

In stock

92026

SPACER

92026-S053

1

$4.44

In stock

92122

1

$24.02

In stock

92153

BOLT

92153-S151

1

$4.17

In stock

92153A

BOLT

92153-S161

1
Out of stock

92153B

BOLT

92153-S183

1

$4.44

In stock

92153C

BOLT

92153-S184

1

$2.00

In stock

92153D

BOLT

92153-S188

1

$5.10

In stock

92200

WASHER

92200-S125

1
Out of stock

92210A

NUT

92210-S054

1
Out of stock

92210B

NUT

92210-S094

1
Out of stock
