2005 Kawasaki KLX125L Chassis Electrical Equipment Diagram

← All diagrams

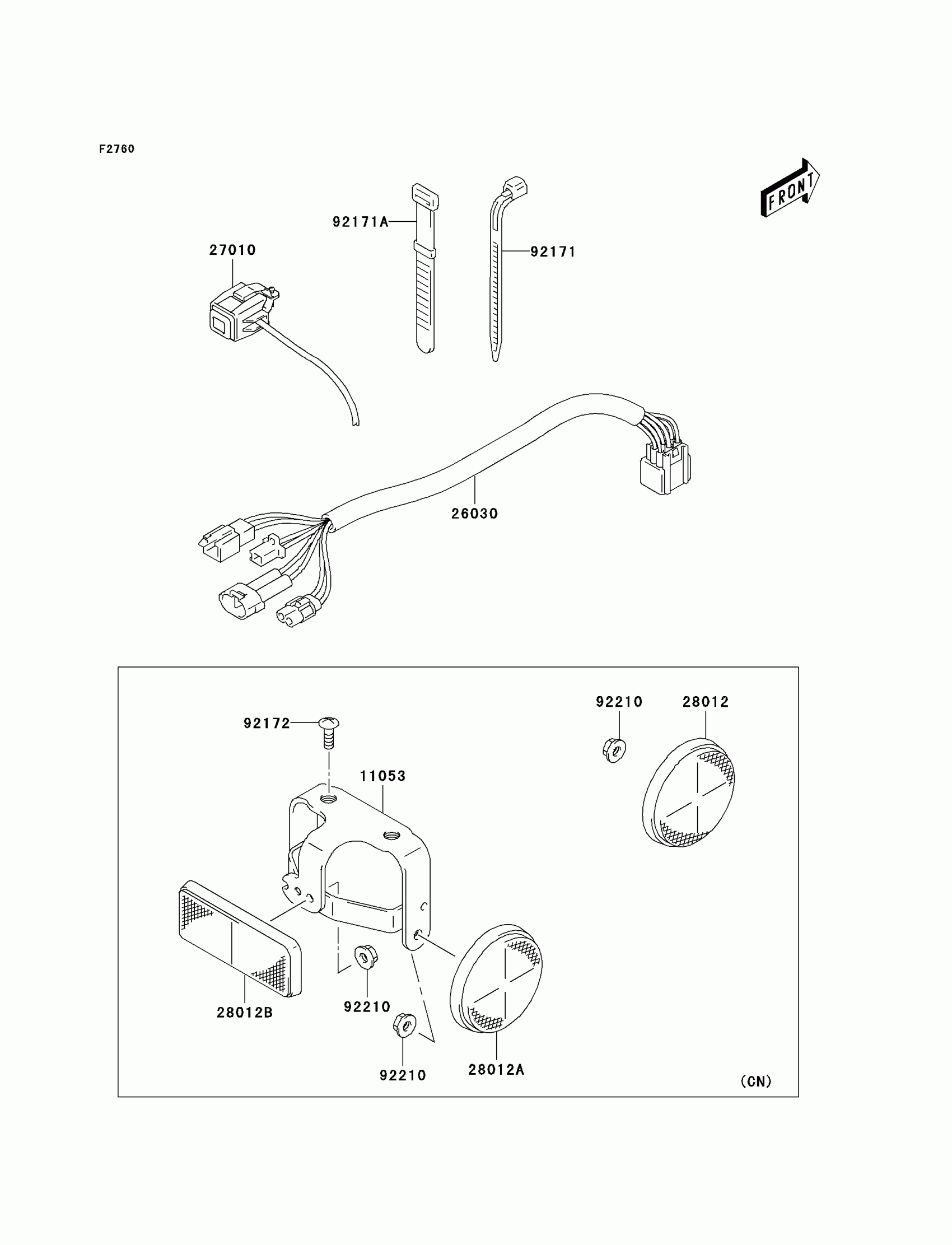

Find the part on the Chassis Electrical Equipment diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki KLX125L Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26030

HARNESS

26030-S004

1

$75.57

In stock

27010

SWITCH

27010-S018

1

$52.46

In stock

92171

CLAMP,L=165

92171-S016

1
Out of stock

92171A

CLAMP,L=120

92171-S035

1

$3.68

In stock

11053

BRACKET,RR

11053-S003

1
Out of stock

28012

REFLECTOR-REFLEX,FR

28012-S001

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-S002

1
Out of stock

28012B

REFLECTOR-REFLEX,RR

28012-S003

1

$19.81

In stock

92172

SCREW

92172-S017

1
Out of stock

92210

NUT

92210-S067

1
Out of stock
