2005 Kawasaki KLX125L Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2005 Kawasaki KLX125L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

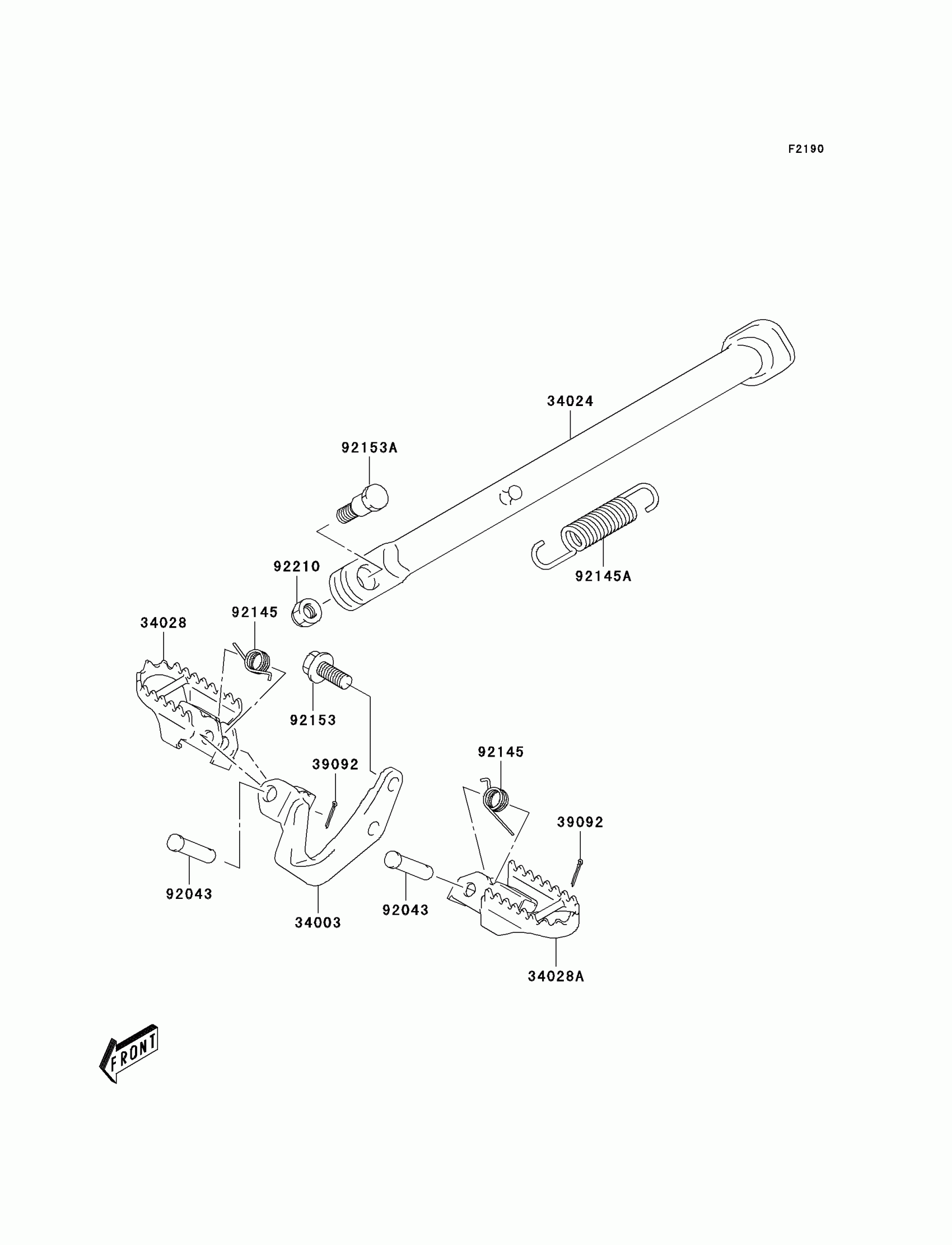

2005 Kawasaki KLX125L Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

1

$81.00

In stock

34024

STAND-SIDE

34024-S004

1

$67.85

In stock

34028

STEP,FR,RH

34028-S001

1
Out of stock

34028A

STEP,FR,LH

34028-S002

1

$20.86

In stock

39092

PIN-HAIR,FR FOOTREST COTTER

39092-S004

1
Out of stock

92043

PIN,FOOTREST

92043-S022

1
Out of stock

92145

SPRING,FOOTREST

92145-S050

1

$2.44

In stock

92145A

SPRING,STAND

92145-S053

1

$4.92

In stock

92153

BOLT

92153-S145

1

$2.20

In stock

92153A

BOLT

92153-S153

1

$4.39

In stock

92210

NUT

92210-S060

1
Out of stock
