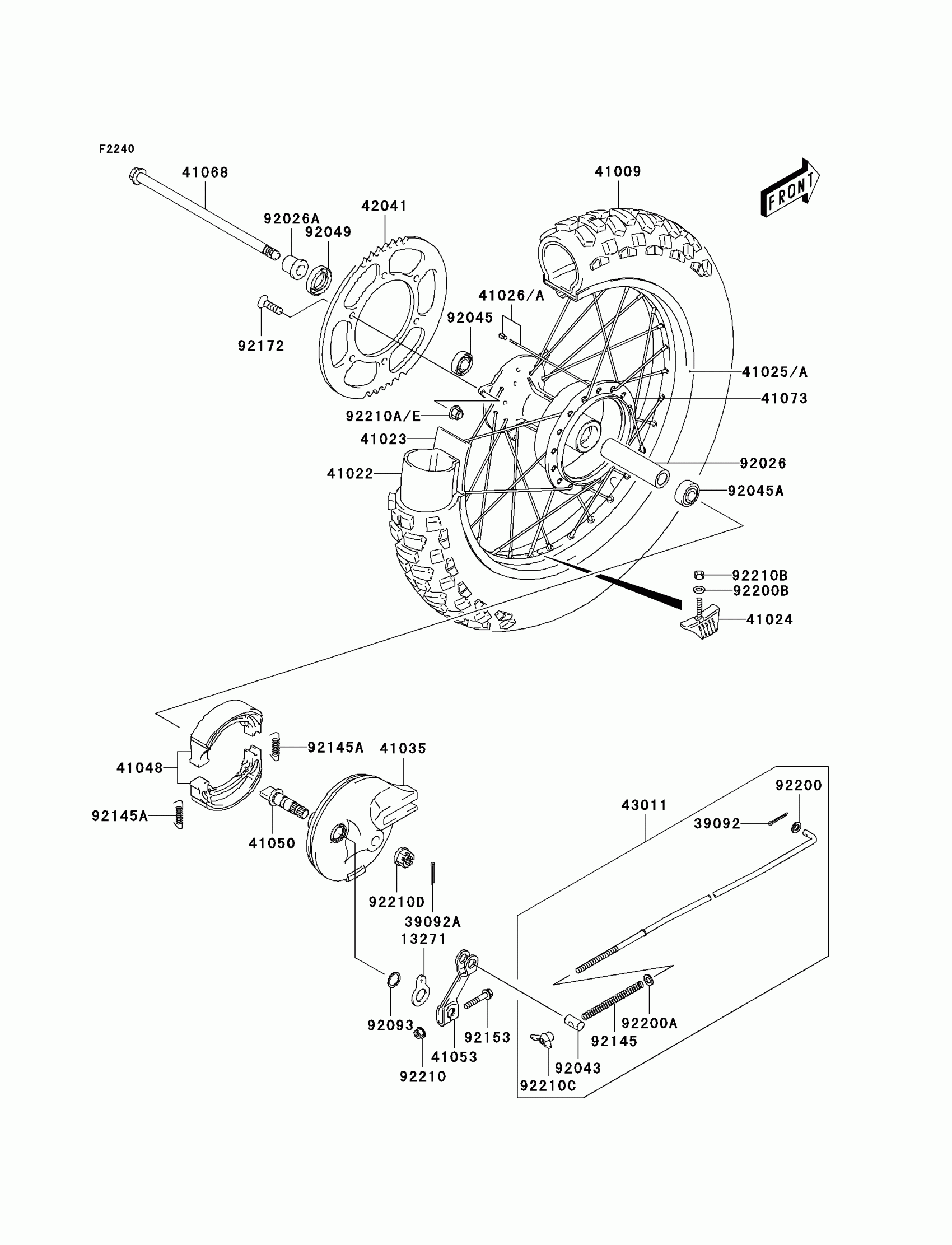

Kawasaki KLX125 Rear Hub(A1/A2) Diagram

#

Description
Price

13271

PLATE,BRAKE LINING INDICATOR

13271-S022

$4.66

39092

PIN-HAIR,COTTER

39092-S005

$1.42

39092A

PIN-HAIR,REAR AXLE COTTER

39092-S006

Unavailable

41009

TIRE,RR

41009-S006

Unavailable

41022

TUBE-TIRE

41022-S002

$38.13

41023

BAND-RIM

41023-S002

$6.58

41024

STOPPER-RIM

41024-S001

$40.49

41025A

RIM,RR WHEEL,14X1.60

41025-S017

$276.08

41026A

SPOKE-ASSY,REAR WHEEL

41026-S010

$50.51

41035

PANEL-ASSY-BRAKE

41035-S002

$134.90

41048

SHOE-BRAKE

41048-S003

Unavailable

41050

CAM-BRAKE

41050-S003

$21.75

41053

LEVER-BRAKE CAM

41053-S003

$20.93

41068

AXLE,RR

41068-S004

$39.32

41073

DRUM-ASSY,REAR

41073-S010

$347.08

42041

SPROCKET-HUB,51T

42041-S001

$63.02

43011

ROD-BRAKE

43011-S001

$19.90

92026

SPACER,REAR HUB BEARING

92026-S006

$9.37

92026A

SPACER,REAR AXLE

92026-S055

$15.36

92043

PIN,BRAKE ROD ADJUSTER

92043-S023

$2.27

92045

BEARING-BALL,REAR HUB,LH

92045-S029

$13.15

92045A

BEARING-BALL,REAR HUB,RH

92045-S030

$14.14

92049

SEAL-OIL,REAR HUB

92049-S025

$5.98

92093

SEAL

92093-S008

$5.10

92145

SPRING,REAR BRAKE ROD

92145-S046

$2.17

92145A

SPRING,REAR BRAKE SHOE

92145-S047

$3.13

92153

BOLT

92153-S130

Unavailable

92172

SCREW,SPROCKET

92172-S111

$2.44

92200

WASHER

92200-S002

$1.42

92200A

WASHER

92200-S003

$1.42

92200B

WASHER

92200-S028

$1.42

92210

NUT

92210-S004

$1.42

92210B

NUT

92210-S051

$1.42

92210C

NUT

92210-S055

$3.76

92210D

NUT

92210-S056

$16.49

92210E

NUT

92210-S094

$2.97
