2022 Kawasaki KLX110 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2022 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

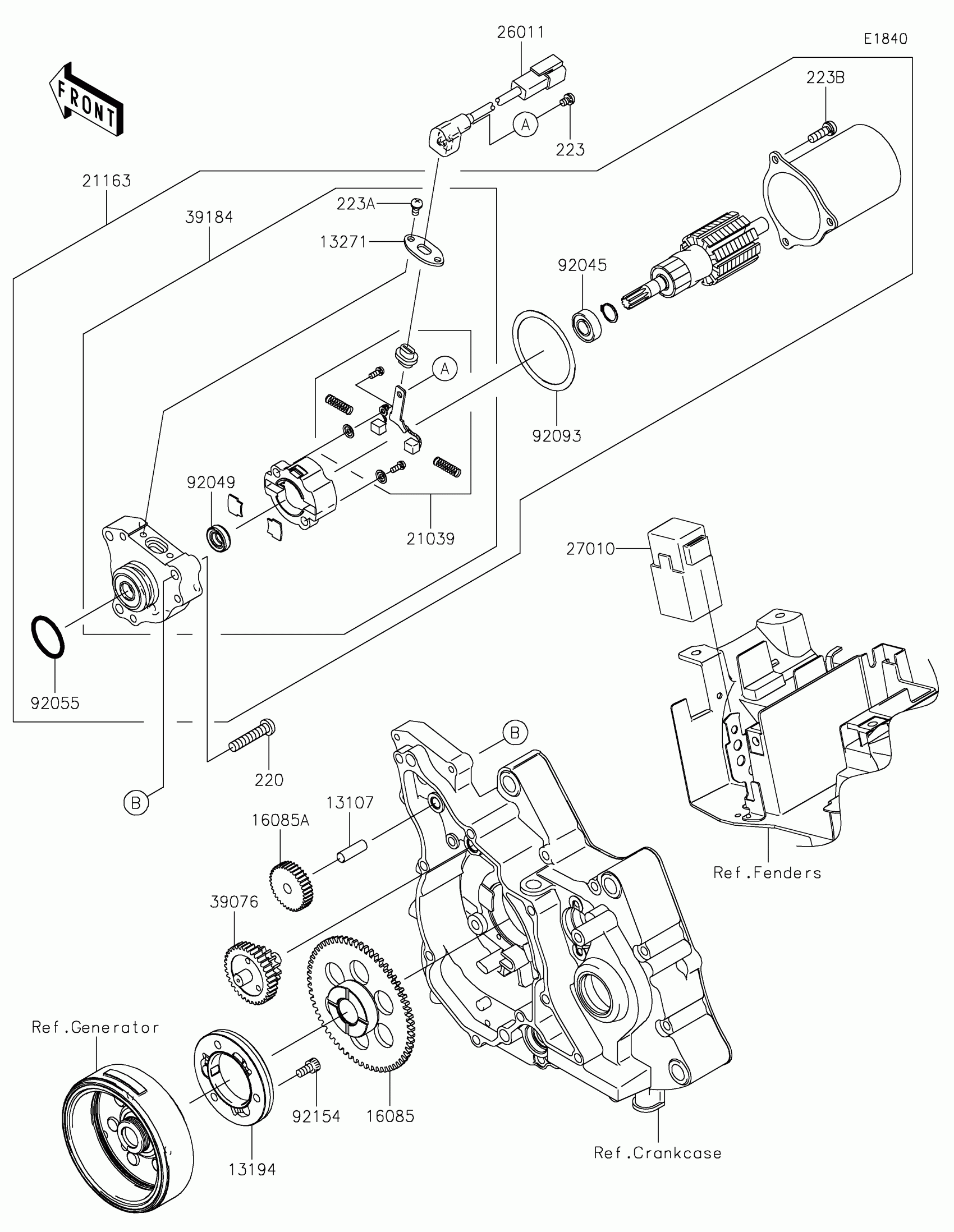

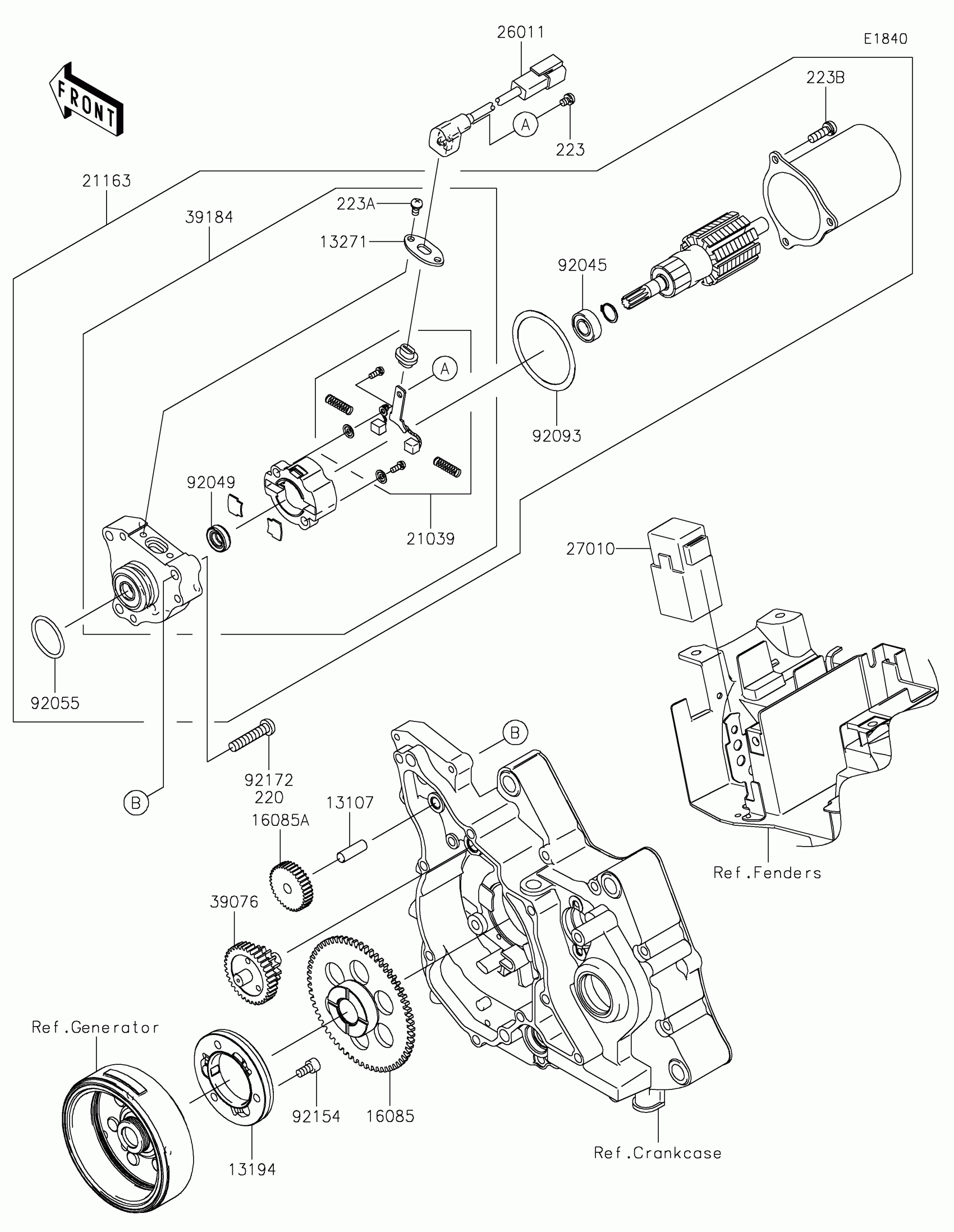

2022 Kawasaki KLX110 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,8X25

13107-1142

1

$7.56

In stock

13194

CLUTCH-ONEWAY

13194-0013

1

$106.27

In stock

13271

PLATE

13271-0674

1
Out of stock

16085

GEAR

16085-0136

1

$112.09

In stock

16085A

GEAR,IDLE,45T

16085-0593

1

$54.83

In stock

21039

1

$20.85

In stock

21163

STARTER-ELECTRIC

21163-0777

1

$273.84

In stock

26011

WIRE-LEAD

26011-0249

1

$29.34

In stock

27010

SWITCH

27010-0085

1

$51.18

In stock

39076

LIMITER

39076-0022

1

$96.42

In stock

39184

BRACKET-ASSY

39184-0014

1

$78.60

In stock

92045

1

$12.05

In stock

92049

SEAL-OIL,STARTER MOTOR

92049-1465

1
Out of stock

92055

RING-O

92055-1276

1

$7.86

In stock

92093

SEAL,STARTER MOTOR

92093-1079

1

$3.94

In stock

92154

BOLT

92154-0325

1

$2.58

In stock

220

1

$3.69

In stock

223

1

$2.93

In stock

223A

1

$1.17

In stock

223B

1

$4.90

In stock
