2005 Kawasaki KLX110 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

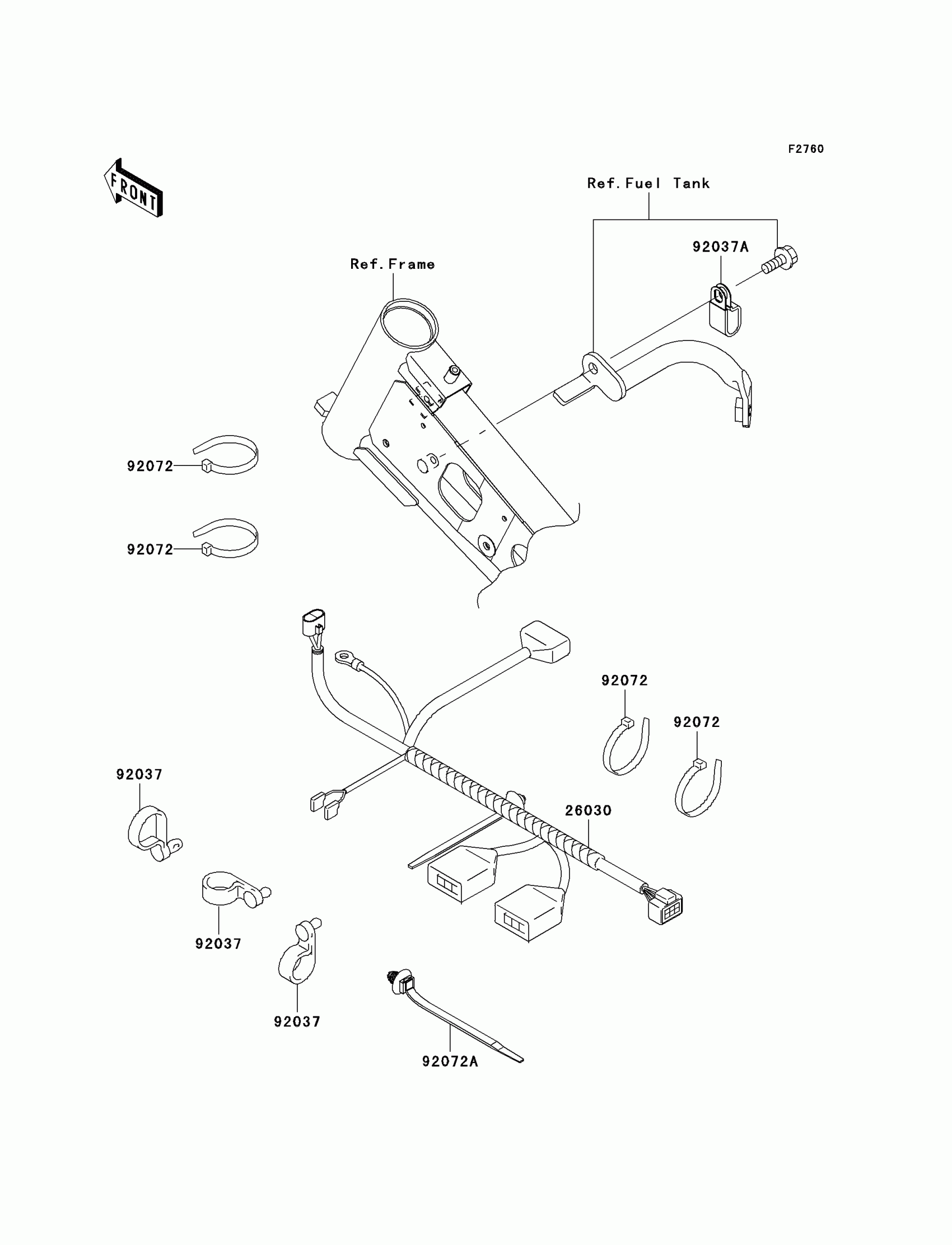

2005 Kawasaki KLX110 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26030

HARNESS,MAIN

26030-1931

1

$152.91

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP

92037-1608

1

$6.44

In stock

92072

BAND,L=140

92072-1293

1

$5.61

In stock

92072A

1

$2.97

In stock
