2005 Kawasaki KLX110 Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2005 Kawasaki KLX110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

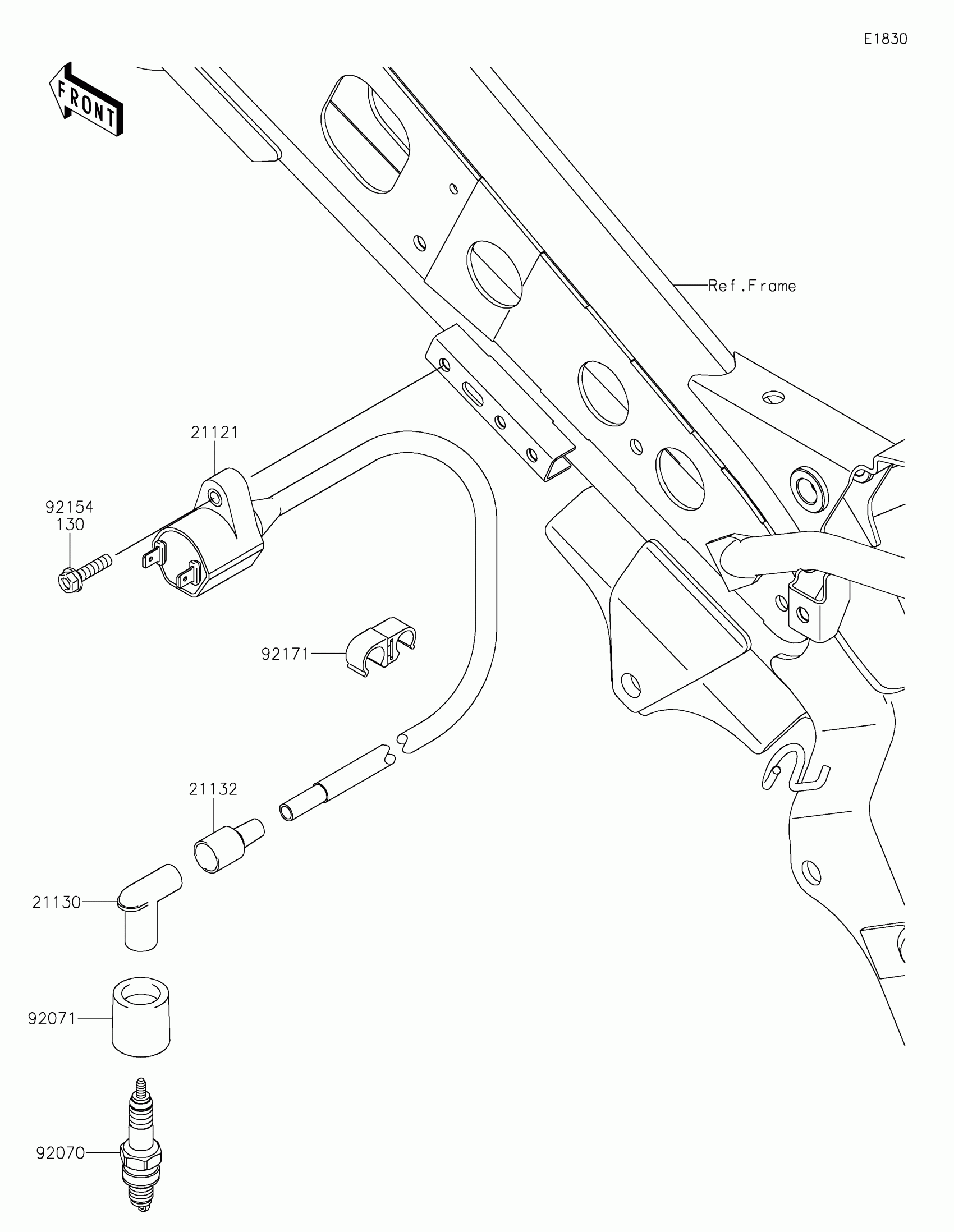

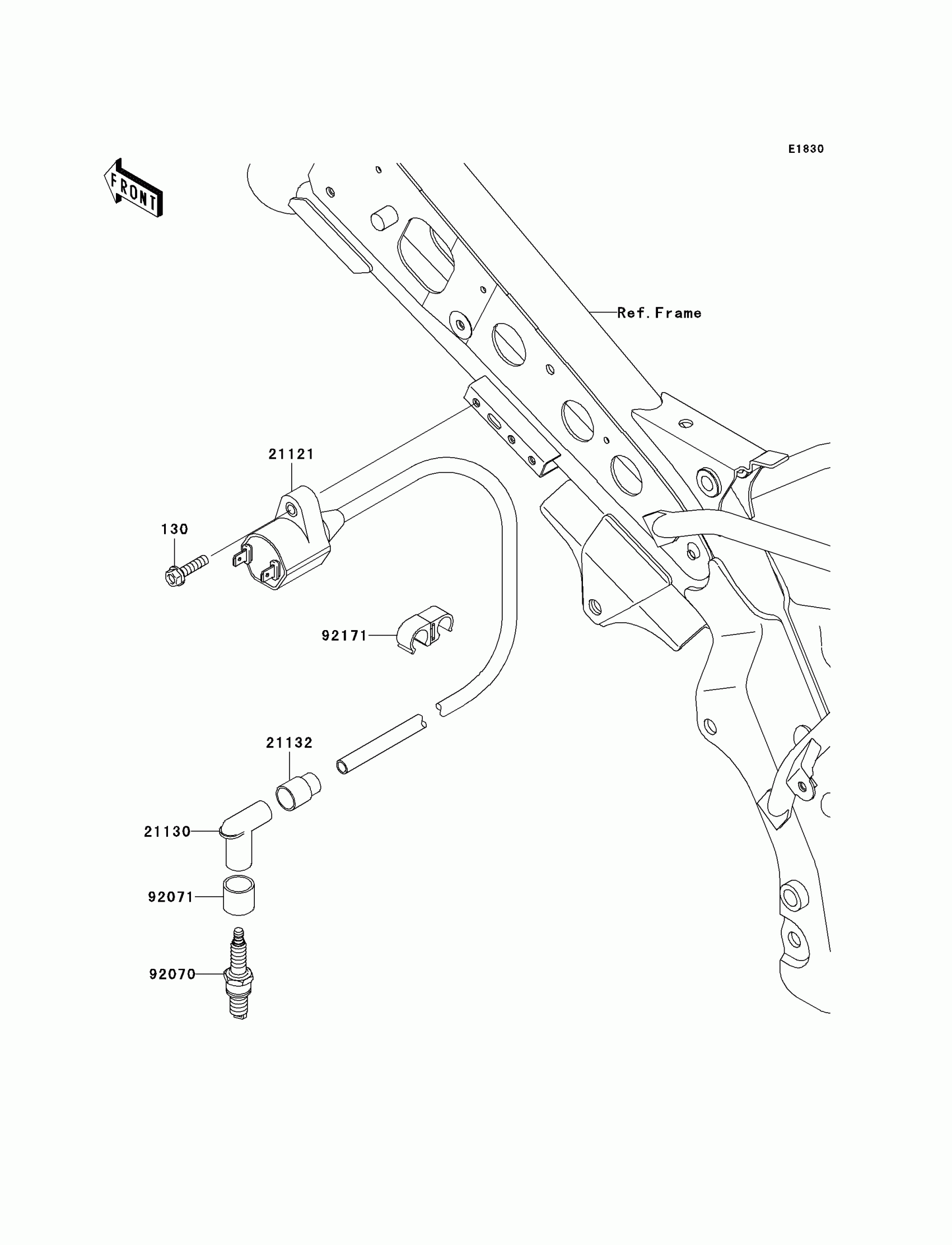

2005 Kawasaki KLX110 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130G0520

1
Out of stock

21121

COIL-IGNITION

21121-1311

1

$113.84

In stock

21130

CAP-SPARK PLUG

21130-1003

1

$26.75

In stock

21132

1

$3.39

In stock

92070

1

$2.92

In stock

92071

GROMMET,PLUG CAP

92071-1184

1

$5.37

In stock

92171

CLAMP

92171-1487

1

$2.29

In stock
