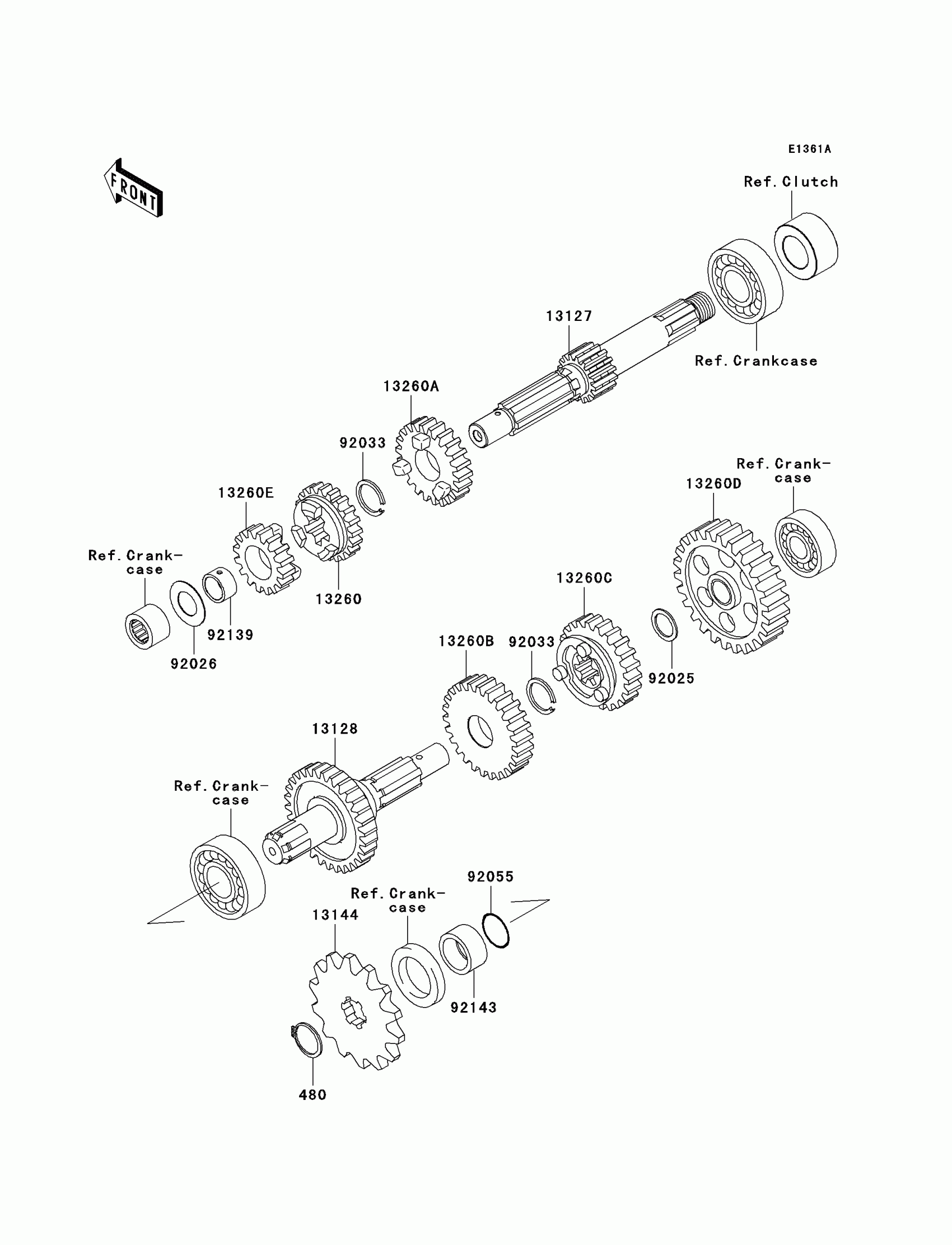

Kawasaki KLX110 Transmission(A2-A4) Diagram

Description

Price

480

CIRCLIP-TYPE-C,17MM

480J1700

$0.64

13127

SHAFT-TRANSMISSION INPUT,12T

13127-1280

$131.72

13128

SHAFT-TRANSMISSION OUTPUT

13128-1244

Unavailable

13144

SPROCKET-OUTPUT,14T

13144-1044

$13.93

13260

GEAR,INPUT 3RD,20T

13260-1857

Unavailable

13260A

GEAR,INPUT TOP,23T

13260-1858

Unavailable

13260B

GEAR,OUTPUT 3RD,27T

13260-1860

Unavailable

13260C

GEAR,OUTPUT TOP,25T

13260-1861

Unavailable

13260D

GEAR,OUTPUT LOW,36T

13260-1862

$70.78

13260E

GEAR,INPUT 2ND,16T

13260-1986

$31.35

92025

SHIM

92025-1280

$2.64

92026

SPACER

92026-1091

$3.85

92033

RING-SNAP,17MM

92033-1060

$3.39

92055

RING-O,16.8MM

92055-1235

$4.37

92139

BUSHING

92139-1102

$12.22

92143

COLLAR,SPROCKET

92143-1680

$10.24
