2009 Kawasaki KLX®450R Rear Brake Diagram

← All diagrams

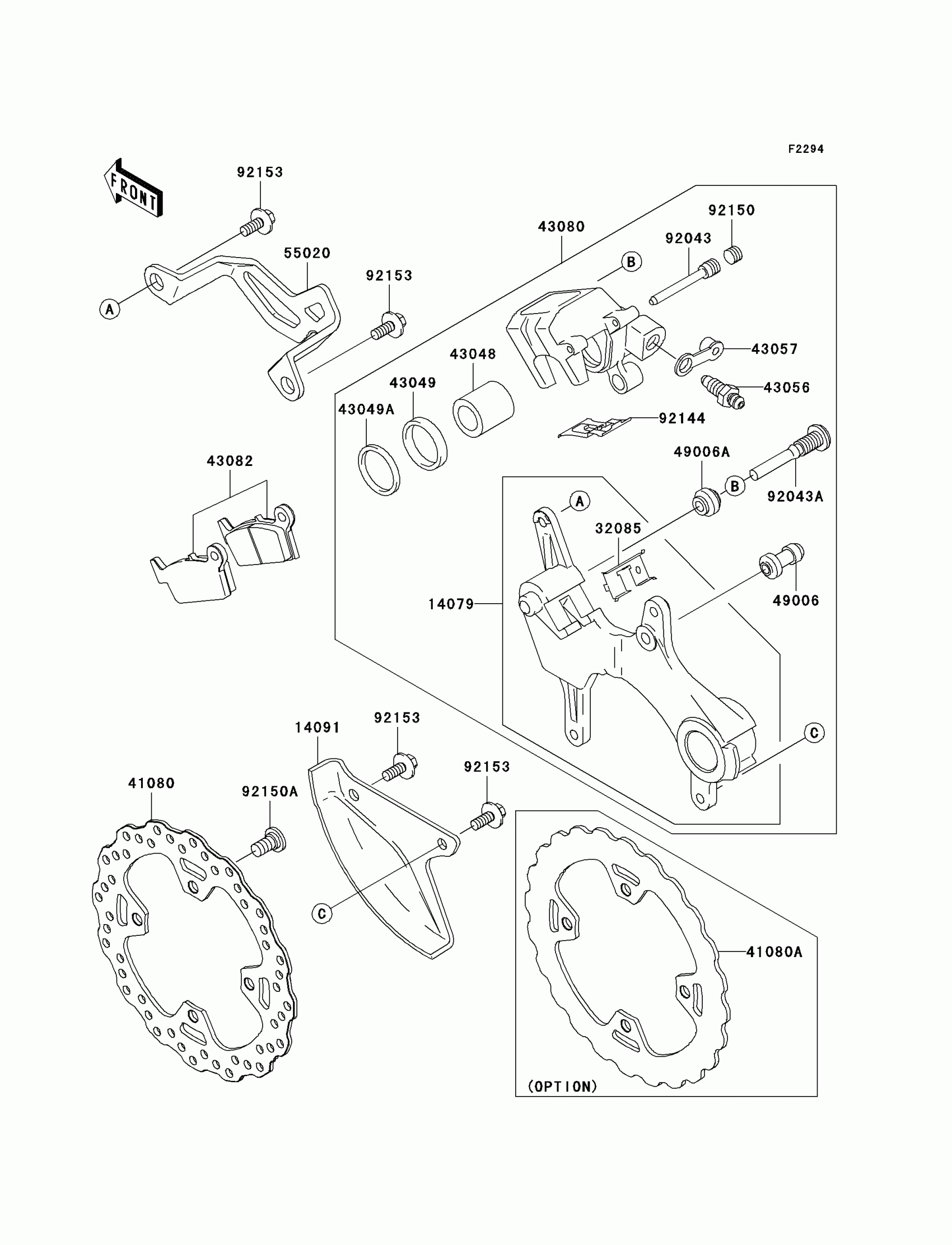

Find the part on the Rear Brake diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®450R Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14079

1

$160.10

In stock

14091

COVER,REAR DISC,WHITE

14091-1523-RZ

1
Out of stock

32085

STOPPER,PAD

32085-1386

1
Out of stock

41080

DISC,RR

41080-0076

1
Out of stock

41080A

DISC,RR

41080-0094

1
Out of stock

43048

PISTON-CALIPER

43048-1066

1
Out of stock

43049

PACKING

43049-1063

1
Out of stock

43049A

PACKING

43049-1064

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR

43080-0037

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0048

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

55020

GUARD,RR CALIPER

55020-0397

1

$38.16

In stock

92043

PIN,HANGER

92043-1507

1
Out of stock

92043A

PIN

92043-1508

1
Out of stock

92144

SPRING,PAD

92144-1819

1
Out of stock

92150

BOLT,PLUG

92150-1692

1
Out of stock

92150A

BOLT,DISC PLATE,8X15

92150-1811

1
Out of stock

92153

BOLT,FLANGED,6X14

92153-0936

1
Out of stock
