2009 Kawasaki KLX®450R Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2009 Kawasaki KLX®450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

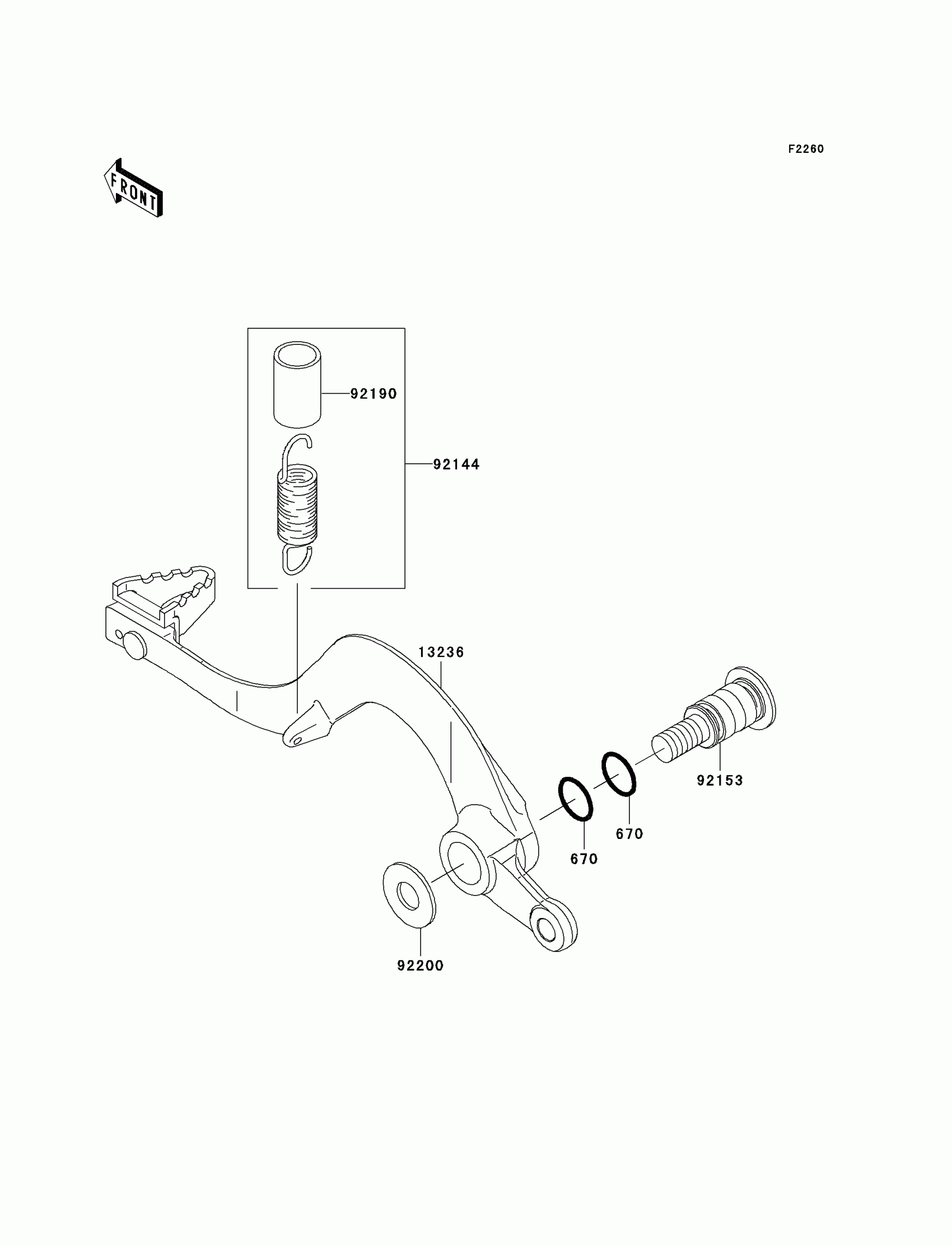

2009 Kawasaki KLX®450R Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING,12MM

670B2012

1
Out of stock

13236

LEVER-COMP,BRAKE PEDAL

13236-0086

1
Out of stock

92144

SPRING,BRAKE PEDAL RETURN

92144-1752

1
Out of stock

92153

BOLT,BRAKE PEDAL,10MM

92153-0974

1
Out of stock

92190

TUBE,13X16X25

92190-1488

1
Out of stock

92200

WASHER,10.5X24X1.5

92200-0154

1
Out of stock
